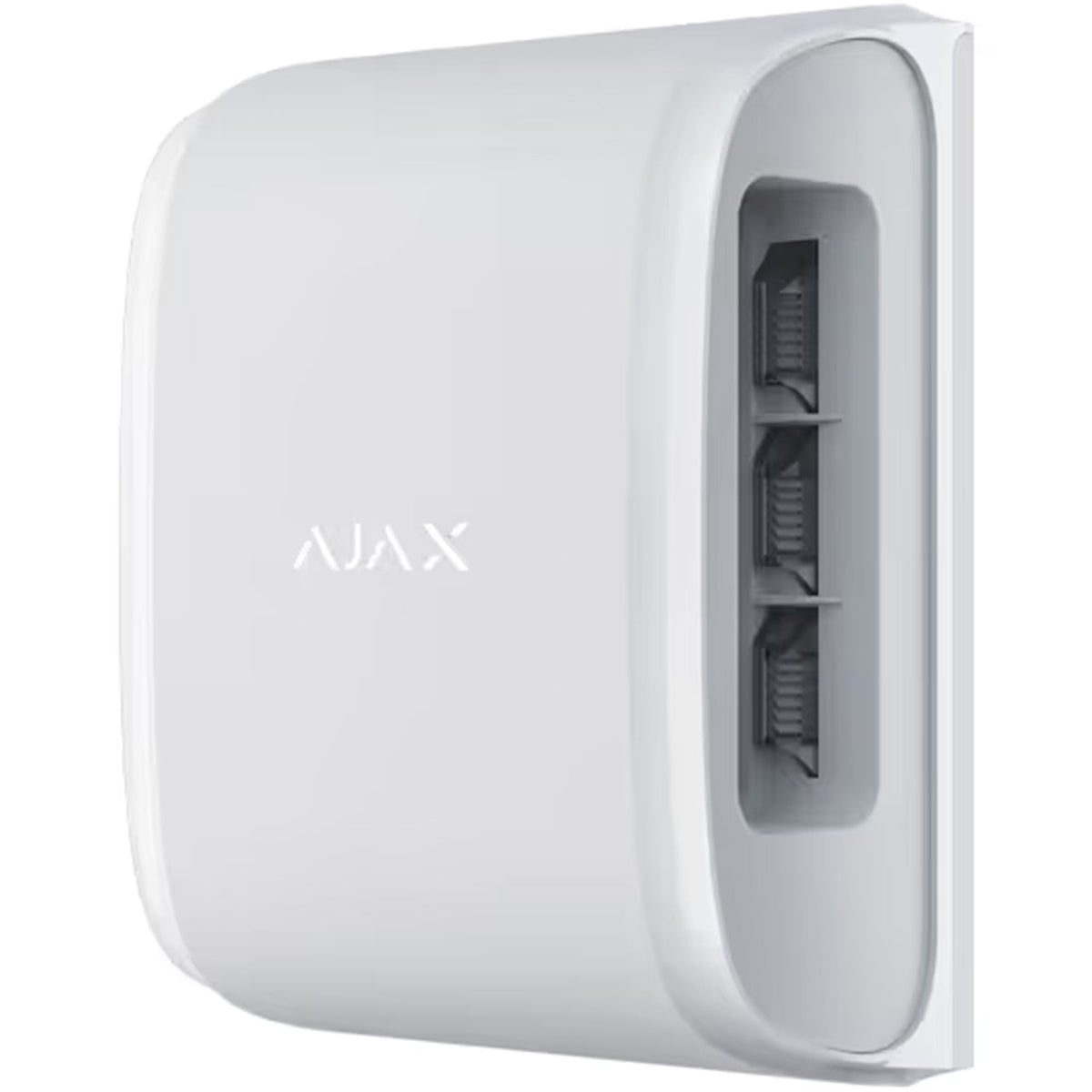

39055.81.WH1Ajax DualCurtain Outdoor Wireless — White
The Ajax DualCurtain Outdoor Jeweller is a wireless bidirectional outdoor curtain detector. It watches two narrow zones in opposite directions along a wall, protecting doors, arches, passages and windows from a single mounting point. It is aimed at houses and commercial buildings that need perimeter detection before an intruder gets inside, and it is rated IP54 and environmental class IV.
Four IR sensors cover each side at 4–15 m, with the distance set separately for each side by sliders on the rear panel. A near-zone option reduces the blind spot under the detector, and the viewing angle can be shifted by 3°. SmartDetect and ELSA algorithms filter false alarms, and objects up to 80 cm tall are ignored. Anti-masking detects obstruction, paint or tape on the lenses. Two CR123A batteries last up to four years.
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
- Two curtain zones in opposite directions from one detector
- Detection distance adjustable separately for each side
- Near-zone detection reduces the blind spot beneath the detector
- Optional 3° horizontal viewing-angle shift for each side
- Anti-masking detects objects, paint or tape covering the lenses
- SmartDetect and ELSA software algorithms to reject false alarms
- Product type: Wireless bidirectional outdoor curtain detector
- Grade (EN 50131): Grade 2
- Environmental class: IV
- Radio frequency: 866.0–866.5 / 868.0–868.6 / 868.7–869.2 MHz (depends on sales region)
- Communication range: up to 1,700 m to hub or range extender in open space
- Sensors: 4 × IR
- Detection range: 4–15 m for each side
- Detection angle: 4.5° horizontal; 90° vertical
- Detection speed: 0.3–2.0 m/s
- Pet immunity: objects up to 80 cm tall
- Battery: 2 × CR123A (pre-installed)
- Battery life: up to 4 years
- Operating temperature: −25 °C to +60 °C
- Operating humidity: up to 95%
- Protection class: IP54
- Dimensions: 174 × 123 × 88 mm
- Weight: 615 g
- Colour: White
- Mounting: SmartBracket mounting panel; 0.8–1.3 m height for doors and passages
- Tamper: Yes – detachment from surface or mounting panel
- Compatibility: Ajax Hub Plus, Hub 2, Hub 2 Plus, Hub BP, Superior Hub Hybrid, Superior Hub G3, Superior MegaHub; ReX, ReX 2, Superior ReX G3
