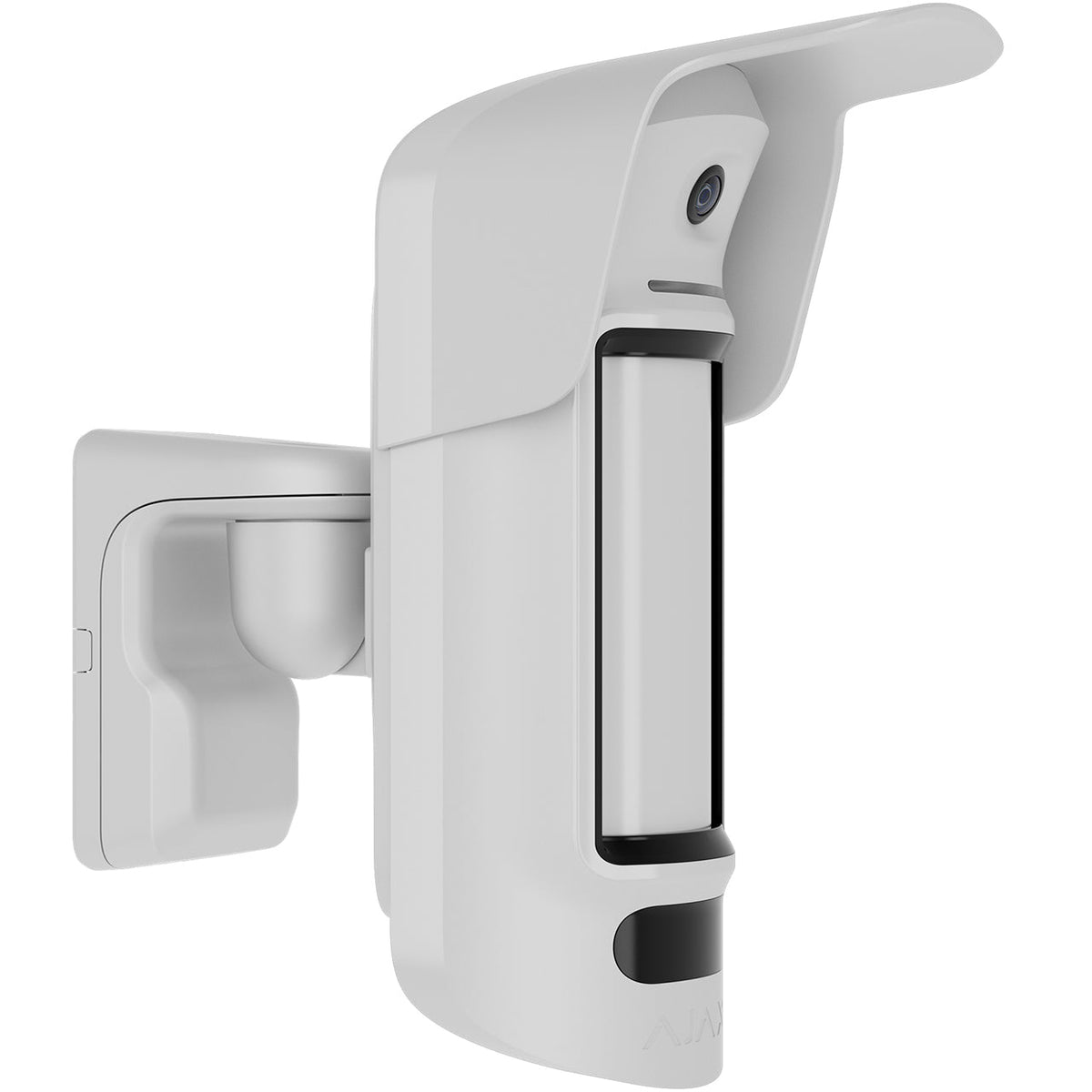

99164.282.WH1Ajax MotionCam HighMount Outdoor (PhOD) Wireless Camera PIR — White
The Ajax MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless outdoor motion detector with a camera, designed to be mounted high, at 2–4 m, out of easy reach. It is intended for warehouses, yards, car parks, building sites and the perimeters of commercial and residential buildings, where alarms raised outside need to be verified with photos. It is rated IP55 and environmental class IV and certified to Grade 2 under EN 50131 and PD 6662.
Two PIR sensors and a 24 GHz K-band microwave sensor cover up to 15 m across a 90° field. The camera has a 115° × 84° view, HDR and IR backlight, and sends a photo series on alarm, on demand, by scenario, by schedule or on arming. A magnetometer reports attempts to tilt, shift or remove the detector, and anti-masking detects blocking. It is supplied with a swivel mount and hood, runs up to three years on six CR123A cells, and accepts 12–24 V DC.
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
- Dual technology: two PIR sensors plus a K-band microwave sensor
- Camera with HDR and IR backlight sends a photo series on alarm
- Photo on Demand, plus photos by scenario, schedule or arming and disarming
- Magnetometer detects tilting, shifting or removal of the detector
- Anti-masking system detects attempts to block the detector’s view
- Swivel mount and hood supplied for high mounting outdoors
- Optional external power with batteries kept as backup
- Product type: Wireless outdoor high-mount motion detector (PIR + microwave) with photo verification
- Grade (EN 50131): Grade 2
- Environmental class: IV
- Radio frequency: 866.0–866.5 / 868.0–868.6 / 868.7–869.2 MHz (depends on sales region)
- Communication range: up to 1,700 m to hub or range extender in open space (Jeweller and Wings)
- Detection range: up to 15 m at 2–4 m mounting height
- Detection angle: 90° horizontal
- Microwave frequency: 24 GHz (K-band)
- Pet immunity: Not available
- Camera viewing angle: 115° horizontal; 84° vertical
- Photo resolution: 320 × 240 (default) or 640 × 480 px
- Battery: 6 × CR123A (pre-installed)
- Battery life: up to 3 years
- External power: 12–24 V DC (optional)
- Operating temperature: −25 °C to +60 °C
- Operating humidity: up to 95%
- Protection class: IP55
- Dimensions: 234 × 98 × 230 mm with swivel mount; 234 × 98 × 137 mm without
- Weight: 1,010 g with swivel mount; 620 g without
- Colour: White
- Mounting: SmartBracket with holding screw, swivel mount and hood; 2–4 m height
- Tamper: Yes – removal from mounting panel; magnetometer for tilt/shift
- Compatibility: Ajax Hub 2, Hub 2 Plus, Hub BP, Superior Hub Hybrid, Superior Hub G3, Superior MegaHub; ReX 2, Superior ReX G3
- Certification: EN 50131-2-4, EN 50131-5-3, EN 50131-6, PD 6662:2017
