Ajax
35282.106.WH1Ajax ReX 2 Wireless Range Extender

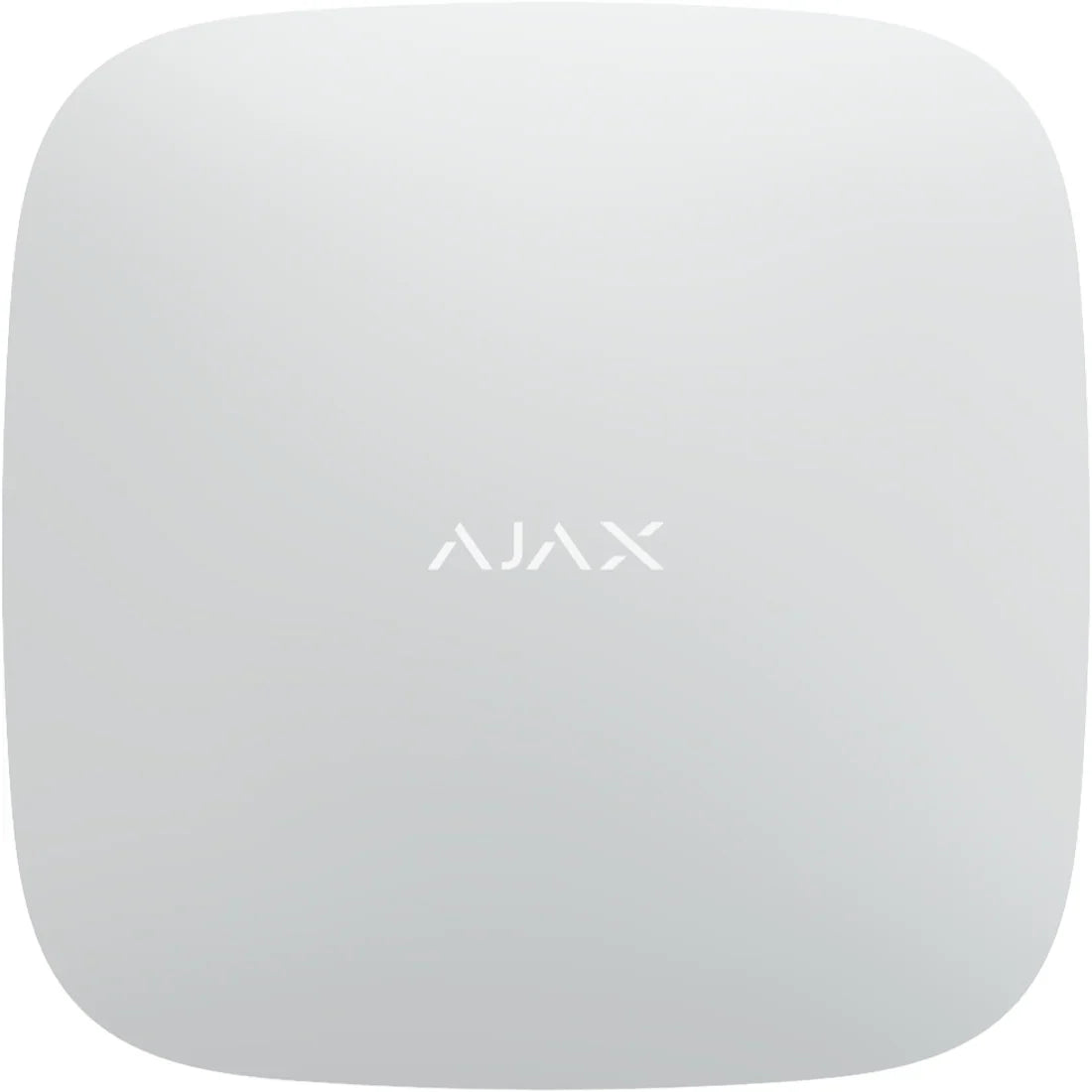

The Ajax ReX 2 Jeweller is a wireless range extender for Ajax alarm systems. It is aimed at installers working on larger homes, offices, warehouses and other sites where some detectors, keypads or sirens sit beyond the radio reach of the hub. It relays both Jeweller alarm traffic and Wings photo traffic, so MotionCam photo-verification detectors can be extended too.
ReX 2 can link to the hub by radio or by Ethernet, using the cable as an alternative or main channel for events, alarms and photos. Up to 199 devices can be routed through one unit, depending on the hub model, and up to five units can be added to a hub. It runs from the mains with a built-in backup battery, reports tamper alarms, and is configured and updated remotely in the Ajax apps.
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
- Extends both Jeweller (alarms and events) and Wings (photo verification) radio networks
- Ethernet link to the hub as an alternative or main channel for alarms, events and photos
- Built-in backup battery keeps connected devices online during a mains failure
- Tamper alert if the unit is removed from the surface or its mounting panel
- Device authentication and encrypted, frequency-hopping radio to resist spoofing and jamming
- Configured, monitored and updated remotely in the Ajax apps
- Product type: Wireless radio signal range extender (Jeweller and Wings)
- Grade (EN 50131): Grade 2
- Environmental class: II
- Radio frequency: 866.0–866.5 / 868.0–868.6 / 868.7–869.2 MHz (depends on sales region)
- Maximum effective radiated power: up to 25 mW
- Communication range: up to 1,700 m to the hub in open space (Jeweller and Wings)
- Ethernet: 1 × 8P8C socket, up to 100 Mbps
- Devices per ReX 2: up to 199 (depends on hub model)
- ReX 2 units per hub: 5
- Alarm delivery time to hub: 0.3 s
- Power supply: 110–240 V AC, 50/60 Hz, up to 10 W
- Alternative power: 6 V DC or 12–24 V DC via optional Ajax PSU (sold separately)
- Backup battery: Built-in rechargeable Li-ion, 2 Ah
- Backup time: up to 38 h (Ethernet off); up to 12 h (Ethernet on)
- Operating temperature: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP30, IK06
- Dimensions: 163 × 163 × 36 mm
- Weight: 364 g (white); 336 g (black)
- Colour: White or black
- Mounting: SmartBracket mounting panel; indoor use only
- Tamper: Yes – detachment from surface or mounting panel
- Compatibility: Ajax Hub 2, Hub 2 Plus, Hub BP, Superior Hub Hybrid, Superior Hub Hybrid 2, Superior Hub G3
- Certification: EN 50131-1/-3/-5-3/-6, PD 6662:2017, INCERT, PSTI UK
