Ajax

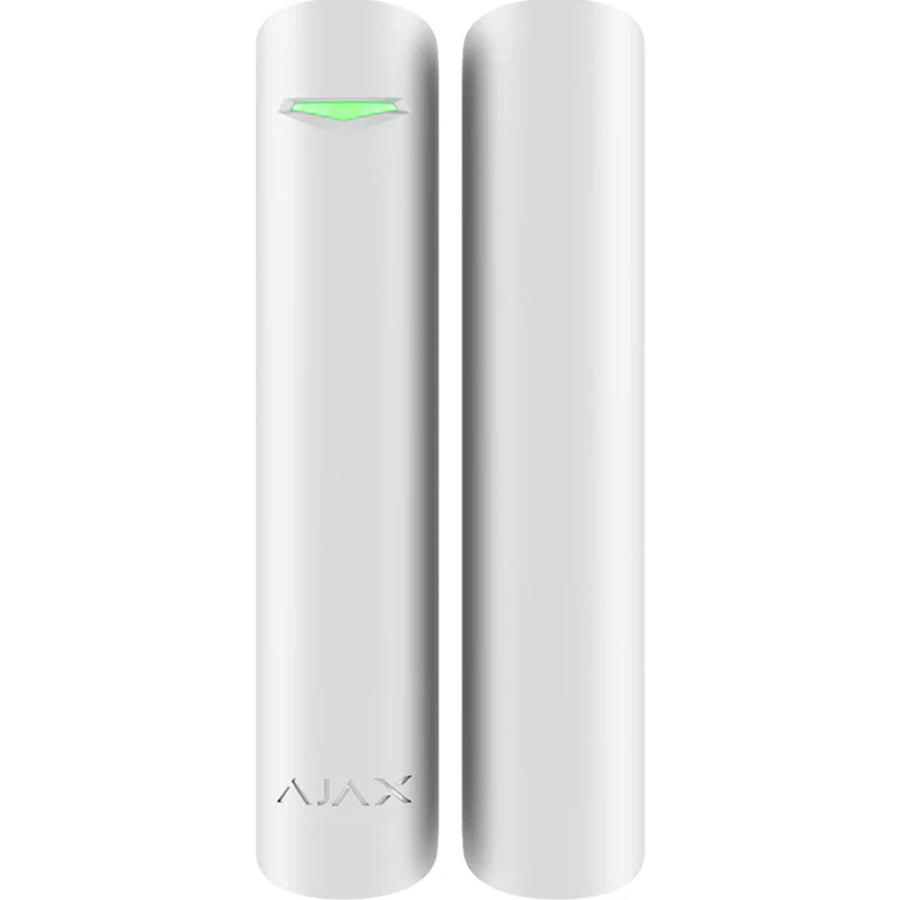

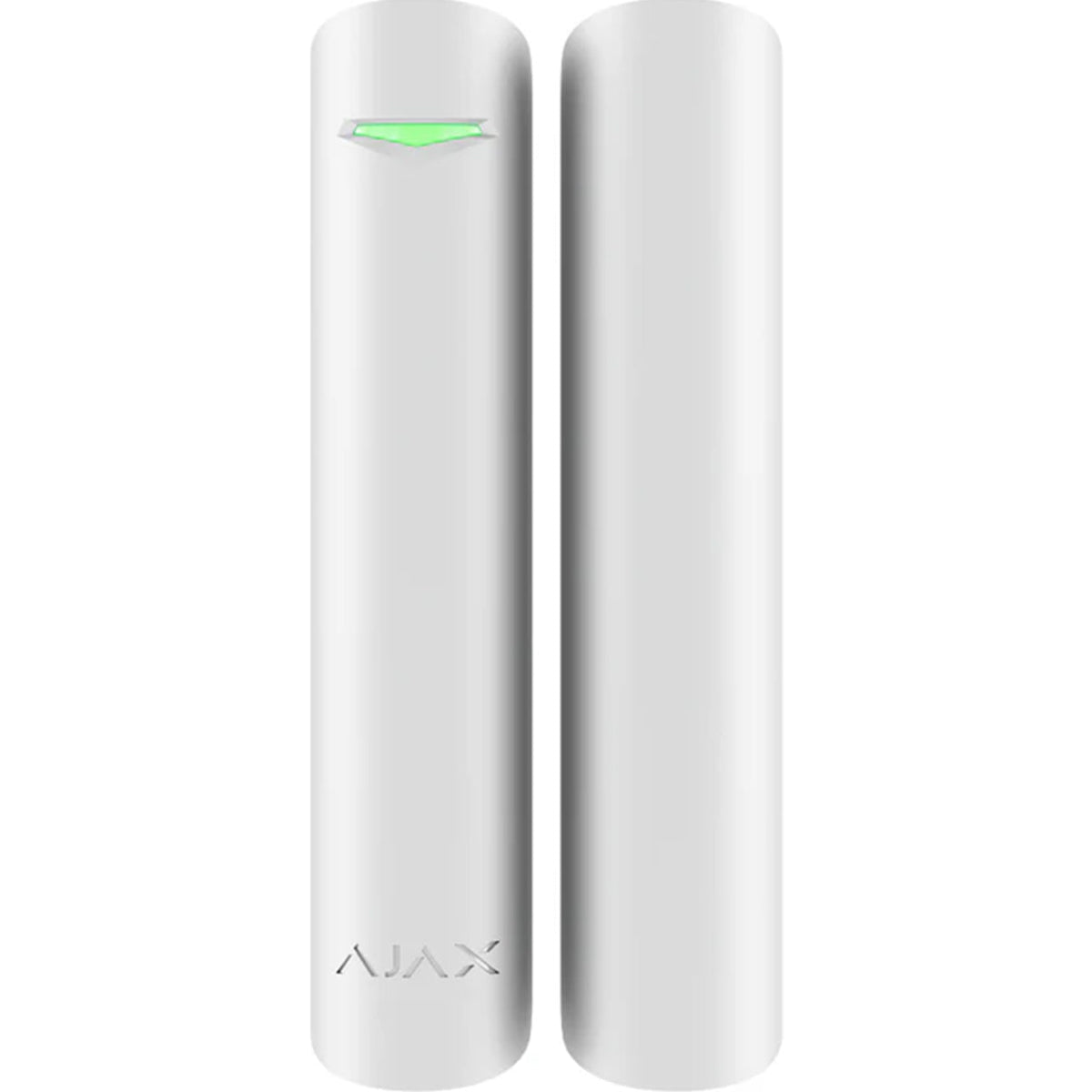

133198.21.WH1Ajax Superior DoorProtect Plus S Wireless Door, Shock & Tilt — White
The Ajax Superior DoorProtect Plus Jeweller is a wireless opening detector from the Superior line that also detects shock and tilt. Besides reporting when a door or window opens, it can raise an alarm when someone strikes or forces the protected door or window, or when it is tilted. It is intended for homes and commercial premises and is certified to Grade 2 under EN 50131 and PD 6662.
Two reed switches allow the magnet on either side, with small and large magnets supplied for gaps of up to 1 or 2 cm. An accelerometer provides the shock channel, with three sensitivity levels and a detection radius of up to 1.2 m on glass or wood, and the tilt channel, with a threshold adjustable from 5° to 25°. Single shocks can be ignored. A wired NC input and a holding screw are included, and a CR123A battery lasts up to five years.
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
- Opening, shock and tilt detection in one device
- Shock sensitivity in three levels, with an option to ignore single shocks
- Tilt threshold adjustable remotely in the Ajax app
- Magnet can be fitted on either side; small and large magnets supplied
- Input for an additional wired detector with a normally closed contact
- Holding screw secures the detector on its SmartBracket
- Tamper alert if removed from the surface or mounting panel
- Product type: Wireless opening, shock and tilt detector, Superior line
- Grade (EN 50131): Grade 2
- Environmental class: II
- Radio frequency: 865.0–868.0 / 868.0–868.6 / 868.7–869.2 / 869.4–869.65 MHz (firmware 6.66.1.7+; earlier firmware 868.0–868.6 MHz)
- Communication range: up to 3,000 m in open space (Superior Jeweller; depends on hub model)
- Sensors: 2 reed switches, 1 accelerometer
- Magnet operating gap: small magnet up to 1 cm; large magnet up to 2 cm
- Shock detection radius: framed glass or wood 1.2 m (high) / 1 m (low); concrete 0.75 m / 0.5 m
- Tilt threshold: 5°–25°
- Wired input: 1 × NC input for a third-party wired detector
- Battery: 1 × CR123A (pre-installed)
- Battery life: up to 5 years
- Operating temperature: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50, IK04
- Dimensions: 103 × 22 × 21 mm (detector); 55 × 11 × 6 mm (small magnet)
- Weight: 37 g (white)
- Colour: White
- Mounting: SmartBracket with holding screw; indoor use
- Tamper: Yes – detachment from surface or mounting panel
- Compatibility: Ajax Hub Plus, Hub 2, Hub 2 Plus, Hub BP, Superior Hub Hybrid, Superior Hub G3, Superior MegaHub; ReX, ReX 2, Superior ReX G3
- Certification: EN 50131-2-6, EN 50131-2-8, EN 50131-5-3, EN 50131-6, PD 6662:2017, INCERT, NF&A2P
