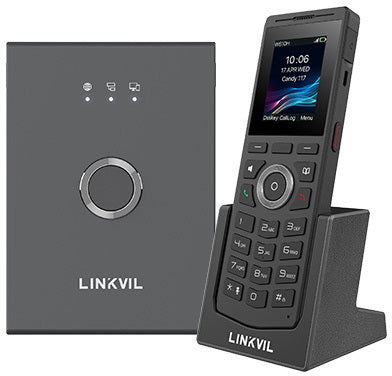

Fanvil LINKVIL W710H cordless multi-cell system manager

The Fanvil LINKVIL W710H is the manager at the heart of the LINKVIL cordless multi-cell system — the way to take DECT beyond a single base station and across offices, supermarkets, shopping centres, factories, hotels, warehouses and multi-storey car parks. One W710H coordinates up to 20 base stations and a maximum of 300 W610H handsets, with seamless roaming and call handover as users move between cells.

Capacity is genuinely enterprise-grade: up to 200 simultaneous calls across the system, with each base station handling up to 30 handsets and 16 concurrent calls, and support for up to 20 SIP servers and 300 SIP accounts for flexible integration with a wide range of VoIP platforms. Each cell offers wireless coverage of up to 60 m indoors and 350 m outdoors (EU models).

The W710H is flexible about its role too — it can act as manager and/or base station, so one unit plus a handful of W610H handsets is enough to start a network. For a simpler single-cell site, the LINKVIL W710P base and handset bundle is the easier starting point.

Key features

• Scales to 20 base stations and 300 handsets under a single W710H manager — grow the system as the business grows.
• Up to 200 simultaneous calls system-wide, with each base station carrying up to 16 concurrent calls and 30 handsets.
• Seamless roaming and call handover between base stations, so users move freely through the coverage area without dropping calls.
• Broad VoIP platform support — up to 20 SIP servers and 300 SIP accounts for flexible deployments.
• Wide per-cell coverage — up to 60 m indoors and 350 m outdoors per base station (EU models).
• Built-in signal measurement mode on the paired W610H handsets tracks real-time signal strength, so you can optimise base station placement without specialised test equipment.
• Handsets built for a full shift — a 2-inch 240 × 320 colour display, 16 programmable DSS keys, an assignable push-to-talk side key, 3-way conferencing and up to 8 hours of talk time (160 hours standby).

Works with

• Fanvil LINKVIL W710P — single-cell DECT bundle for smaller sites
• Fanvil LINKVIL W611W — Wi-Fi handset alternative
• All DECT cordless
• IP desk phones

Frequently asked questions

Is the W710H a manager or a base station?

It can be either — or both. The W710H can run purely as the system manager, or act as manager and base station at the same time, so one W710H plus multiple W610H handsets is enough to build a working network quickly.

How large can the system grow?

One W710H manager supports up to 20 base stations and a maximum of 300 W610H handsets, with up to 200 simultaneous calls across the system. Each individual base station handles up to 30 handsets and 16 concurrent calls.

Do calls hand over as staff move between cells?

Yes — the system provides seamless roaming and call handover between base stations, so a call started in one cell continues uninterrupted as the user walks into the next.

How do I know where to place the base stations?

The W610H handsets include a signal measurement mode that shows real-time signal strength, letting you walk the site, assess signal quality and optimise base station placement without specialised testing kit. We can also help plan coverage before you order.

Sizing a multi-cell DECT deployment? Call 0333 242 1314 or email sales@clisecure.com and we will size the bases, handsets and coverage before you order.
