Fortinet FortiAP 243K indoor Wi-Fi 7 access point

Fortinet FAP-243K

Fortinet FortiAP 243K

Price on request

This model is quoted individually. Request a quotation below and we will confirm current pricing for the hardware and any FortiGuard bundle you need.

In stock

Bundle

Quantity

Request a Quotation

Trade pricing on every quotation — response within one working day.

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

WI-FI STANDARDWi-Fi 7 (802.11be)

MAX DATA RATEUp to 5.765 Gbps (6GHz band)

RADIOSQuad-radio 2.4/5/6GHz + scan

MOUNTINGIndoor

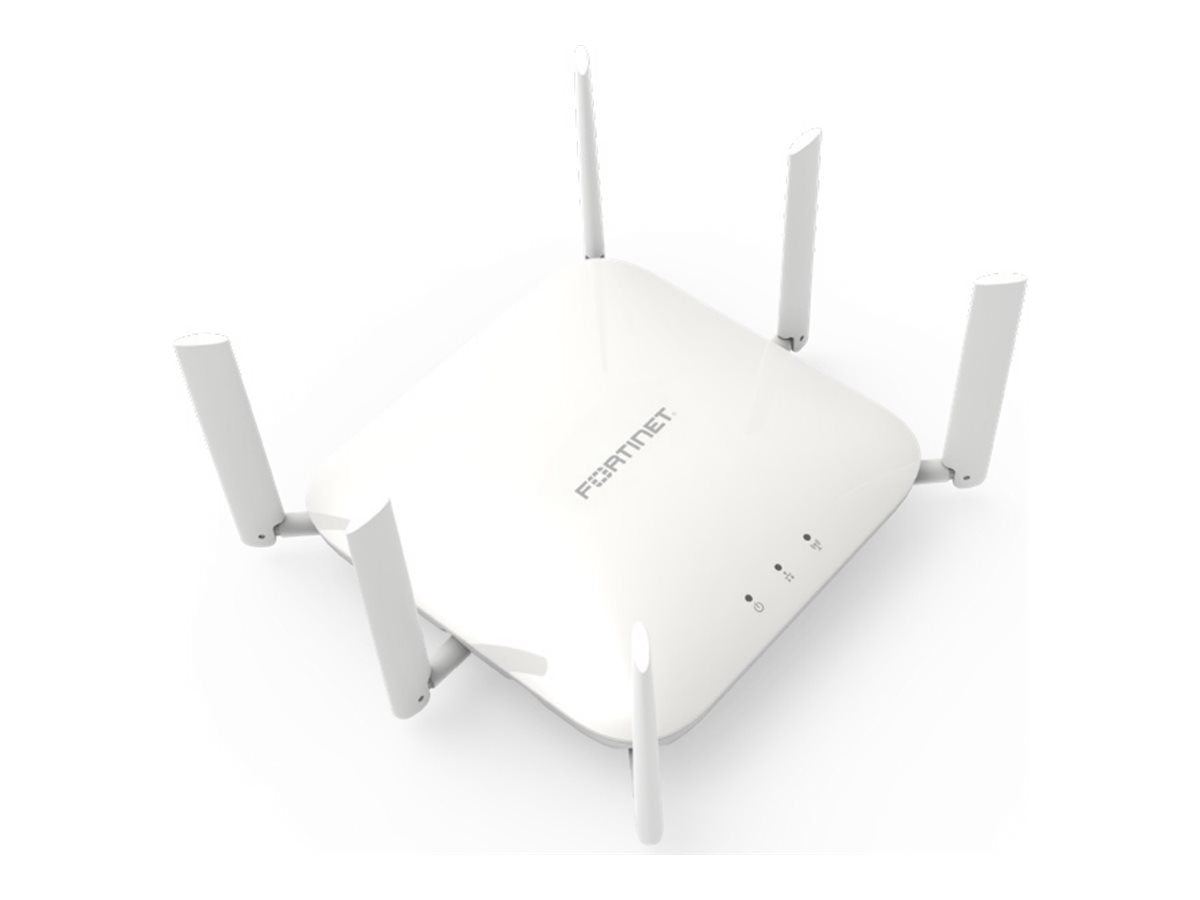

The Fortinet FortiAP 243K is an enterprise-class Wi-Fi 7 indoor access point with external RP-SMA antennas, four radios and two spatial streams (2x2 MIMO). It supports the 6 GHz band and is equipped with one 10 Gigabit and one 1 Gigabit Ethernet port. A dedicated scanning radio provides 24/7 background scanning across all bands while the other radios serve clients simultaneously on 2.4 GHz, 5 GHz and 6 GHz. An integrated BLE/ZigBee radio supports beacon and location-based applications.

FortiAP access points are managed centrally by the integrated WLAN controller on any FortiGate security appliance, or through the FortiEdge Cloud provisioning and management portal. Combining the wireless controller with the FortiGate appliance suits campus and branch deployments, and brings wired and wireless security together under Fortinet's Security Fabric single-pane-of-glass management.

The external-antenna 243K suits sites needing directional or higher-gain antennas; the internal-antenna variant is available as the FortiAP 241K.

Key features

Quad-radio Wi-Fi 7 design — 2.4GHz, 5GHz and 6GHz service radios plus a tri-band scanning radio, all with 2x2 MIMO
Up to 5.765 Gbps on the 6GHz radio, 4.324 Gbps on 5GHz and 688 Mbps on 2.4GHz
External RP-SMA antennas — 6 connectors (dual-band, 6GHz and tri-band scanning pairs) plus an internal BLE/ZigBee antenna
One 10 Gigabit and one 1 Gigabit Ethernet port, powered by 802.3bt PoE
Up to 24 simultaneous SSIDs, with WPA3, 802.1X, captive portal and MAC ACL
Local-Bridge, Mesh and Tunnel SSID types for flexible deployment topologies
Advanced 802.11 features — OFDMA, BSS Coloring, UL/DL MU-MIMO, enhanced TWT
Wireless monitoring — rogue scan, WIPS/WIDS, packet sniffer, spectrum analyzer
Managed by FortiGate's integrated controller or FortiEdge Cloud

Works with

Frequently asked questions

How is the FortiAP 243K managed?

Centrally, by the integrated WLAN controller built into any FortiGate security appliance, or through the FortiEdge Cloud provisioning and management portal — bringing wired and wireless management into a single console under Fortinet's Security Fabric.

Is hardware pricing available online?

Fortinet's FortiAP 243K list pricing, along with any support-bundle options, is confirmed at quotation. Contact us with your deployment size and we'll return a formal quote.

What power does the 243K need?

It runs on 802.3bt PoE, or 12V 2.5A DC where PoE isn't available. Maximum power consumption is 26.1W.

Sizing a wireless deployment? Call 0333 242 1314 or email sales@clisecure.com.

Hardware

Hardware type	Indoor AP
Number of radios	4-radio: 2.4GHz + 5.0GHz + 6GHz + tri-band scan
Number of antennas	6 external RP-SMA antennas: x2 dual-band + x2 6GHz + x2 tri-band scanning, plus 1 internal BLE/ZigBee antenna
Antenna type support	RP-SMA (6 total): dual-band (2), 6GHz (2), tri-band (2)
Antenna type and peak gain	Omni dual-band: 4.5 dBi (2.4GHz), 5.7 dBi (5GHz). Omni 6GHz: 5.25 dBi. Tri-band omni: 3.3 dBi (2.4GHz), 5.6 dBi (5GHz), 5.3 dBi (6GHz). PIFA BLE: 5.2 dBi (2.4GHz)
Frequency bands	2.4GHz: 2.4–2.484GHz · 5GHz: UNII-1 to UNII-4 (5.15–5.895GHz) · 6GHz: UNII-5 to UNII-8 (5.925–7.125GHz)
Radio 1 capabilities	2.4GHz \| 20/40MHz \| BPSK–1024 QAM \| 2x2 MIMO
Radio 2 capabilities	5GHz \| 20–240MHz \| BPSK–4096 QAM \| 2x2 MIMO
Radio 3 capabilities	6GHz \| 20–320MHz \| BPSK–4096 QAM \| 2x2 MIMO
Radio 4 capabilities (scanning)	2.4/5/6GHz \| 20–160MHz \| BPSK–1024 QAM \| 2x2
Maximum data rate	2.4GHz: 688 Mbps · 5GHz: 4.324 Gbps · 6GHz: 5.765 Gbps
BLE radio	Bluetooth scanning and iBeacon advertisement at 10 dBm max Tx
Interfaces	1x 10G RJ45, 1x 1G RJ45, 1x USB 2.0, 1x RS-232 RJ45
PoE	1x 802.3bt (default)
SSIDs	Up to 24
EAP types	EAP-TLS, EAP-TTLS/MSCHAPv2, PEAP, EAP-SIM, EAP-AKA, EAP-FAST
Authentication	WPA/WPA2/WPA3, 802.1X, PSK, WEP, captive portal, MAC ACL
Maximum Tx power	2.4GHz: 25 dBm · 5GHz: 26 dBm · 6GHz: 23 dBm
Kensington lock	Yes
IEEE standards	802.11 a/b/e/g/h/i/j/k/n/r/v/ac/ax/be, 802.1X, 802.3ad/at/bt/az
SSID types	Local-Bridge, Mesh, Tunnel
Client capacity	Up to 512 clients per radio
Co-existence	Yes
LED off mode	Yes

Advanced features

OFDMA	Yes
Spatial reuse (BSS Coloring)	Yes
UL/DL MU-MIMO	Yes
Enhanced TWT	Yes
ZeroWait DFS	No

Monitoring

Rogue scan modes	Background, dedicated
WIPS/WIDS	Background, dedicated (recommended)
Packet sniffer	Yes
Spectrum analyzer	Yes

Physical

Dimensions (L x W x H)	190 x 190 x 51 mm (7.48 x 7.48 x 2.01 in)
Weight	2.6 lbs (1.18 kg)
Shipping weight	4.6 lbs (2.09 kg)
Mounting options	Ceiling, T-rail, wall
Accessories	Standard mounting kit

Environment

Power supply	802.3bt PoE or 12V, 2.5A DC
Max power consumption	26.1 W
Humidity	5%–90% non-condensing
Temperature (operating/storage)	0°C to 50°C / -30°C to 70°C
Directives	LVD, RoHS
UL2043 plenum	Yes
MTBF	> 10 years

Certifications and warranty

Wi-Fi Alliance certified	No
DFS	No
Limited lifetime warranty	Yes

Product details

Brand	Fortinet
Part number	FAP-243K
