Fortinet

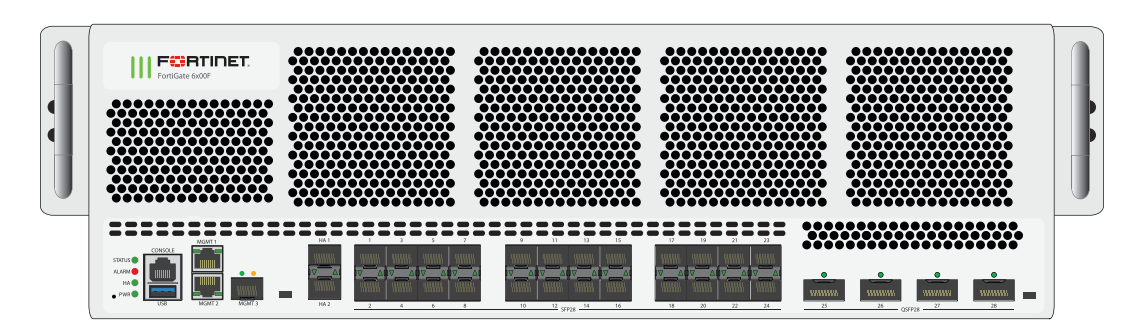

FG-6001FFortinet FortiGate 6001F
This model is quoted individually. Request a quotation below and we will confirm current pricing for the hardware and any FortiGuard bundle you need.
The FortiGate 6001F is part of Fortinet's 6000F Series, built for large enterprises and service providers that need to embed security throughout the datacentre and across a hybrid IT architecture, protecting every edge at scale.
It runs Fortinet's AI/ML-based FortiGuard Services on an integrated Security Fabric platform, giving coordinated, automated threat protection across the environment. Zero Trust Network Access (ZTNA) enforcement is built into the NGFW itself, controlling and verifying application access without a separate access layer.
The 6001F ships with 10 FPC (Fabric Processor Card) blades fitted, of which 3 are enabled by an embedded licence by default. Throughput scales by unlocking additional FPC blades with a perpetual or subscription upgrade licence, up to the chassis' full capacity, without a hardware swap.
Key features
- 4x hardware-accelerated 40/100GE QSFP28 slots
- 24x hardware-accelerated 1/10/25GE SFP28 slots
- 3x hardware-accelerated 10GE SFP+ slots
- 2x GE RJ45 management ports, 1x USB, 1x console port
- 2x 1TB NVMe onboard storage
- 10 FPC blades fitted, 3 enabled by default — scalable with upgrade licences (LIC-FG6KF-FPC or FC1-10-6KF01-744-*)
- Up to 200 million concurrent TCP sessions and 3 million new sessions/sec at maximum FPC capacity
- Security Fabric integration with AI/ML-based FortiGuard Services and integrated ZTNA enforcement
- Active-Active (FGSP), Active-Passive and clustering high-availability configurations
Works with
Frequently asked questions
Why isn't a price shown for the FortiGate 6001F?
List pricing for the FortiGate 6001F is confirmed at quotation stage; use the Request a Quotation button below with your required bundle and we will respond with current pricing.
How does FPC licensing work on the 6001F?
The chassis ships with 10 FPC blades installed, but only 3 are enabled out of the box under the embedded default licence. Additional FPC capacity is unlocked with the LIC-FG6KF-FPC perpetual upgrade licence or the FC1-10-6KF01-744 subscription licence, purchased per FPC, up to a maximum of 7 enabled FPCs on this SKU. Throughput scales with each FPC enabled.
Is the 6001F right for my deployment?
The 6001F is a 3RU rack-mount chassis weighing up to 79.59 lbs (36.1 kg), supporting up to 200,000 firewall policies, 500 virtual domains and 20,000 FortiTokens. High availability is supported in Active-Active (FGSP), Active-Passive or clustering configurations. Call or email us to confirm sizing against your traffic profile and required FPC count before ordering.
Sizing a FortiGate deployment? Call 0333 242 1314 or email sales@clisecure.com.
Interfaces and Modules
| Hardware accelerated 40/100 GE QSFP28 slots | 4 |
|---|---|
| Hardware accelerated 1/10/25 GE SFP28 slots | 24 |
| Hardware accelerated 10 GE SFP+ slots | 3 |
| GE RJ45 management ports | 2 |
| USB ports | 1 |
| Console ports | 1 |
| Onboard storage | 2x 1 TB NVMe |
| Included transceivers | 2x SFP+ (SR 10 GE) |
System Performance — Enterprise Traffic Mix (Default / per FPC / Max)
| IPS throughput | 51 / 17 / 170 Gbps |
|---|---|
| NGFW throughput | 45 / 15 / 150 Gbps |
| Threat protection throughput | 30 / 10 / 100 Gbps |
System Performance and Capacity
| Firewall latency (64 byte, UDP) | 4.80 μs |
|---|---|
| Firewall throughput (packets per second) | 60.75 / 20.25 / 202.5 Mpps |
| Concurrent sessions (TCP) | 60 / 20 / 200 Million |
| New sessions/sec (TCP) | 900,000 / 300,000 / 3 Million |
| Firewall policies | 200,000 |
| IPsec VPN throughput (512 byte) | 48 / 16 / 160 Gbps |
| Gateway-to-gateway IPsec VPN tunnels | 16,000 |
| Client-to-gateway IPsec VPN tunnels | 90,000 |
| SSL-VPN throughput | 9 Gbps on master FPC |
| Concurrent SSL-VPN users (recommended maximum) | 30,000 |
| SSL inspection throughput | 33 / 11 / 110 Gbps |
| SSL inspection CPS (IPS, avg. HTTPS) | 15,000 / 5,000 / 50,000 |
| SSL inspection concurrent sessions (IPS, avg. HTTPS) | 5.4 / 1.8 / 18 Million |
| Application control throughput | 66 / 22 / 220 Gbps |
| Virtual domains (default / maximum) | 10 / 500 |
| Maximum FortiSwitches supported | 256 |
| Maximum FortiTokens | 20,000 |
| High availability configurations | Active-Active (FGSP), Active-Passive, Clustering |
Dimensions and Power
| Height x Width x Length (inches) | 5.3 x 17.2 x 27.3 |
|---|---|
| Height x Width x Length (mm) | 133 x 437 x 694 |
| Weight (maximum) | 78.26 – 79.59 lbs (35.5 – 36.1 kg) |
| Form factor | Rack mount, 3 RU |
| AC power supply | 100–240V AC, 50/60 Hz |
| Power consumption (maximum / average) | 1,308 W / 1,548 W (base); 1,328 W / 1,568 W (max FPC) |
| AC current (maximum) | 30A@100VAC, 20A@240VAC |
| Power supply efficiency rating | 80 Plus compliant |
| Heat dissipation (maximum) | 5,282 – 5,350 BTU/h |
| Redundant power supplies | 2+1 redundant / 1+1 redundant on high line power, hot swappable |
| Fan trays | Hot swappable |
Operating Environment and Certifications
| Operating temperature | 32–104°F (0–40°C) |
|---|---|
| Storage temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise level | 57.43 dBA |
| Forced airflow | Front to back |
| Operating altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
