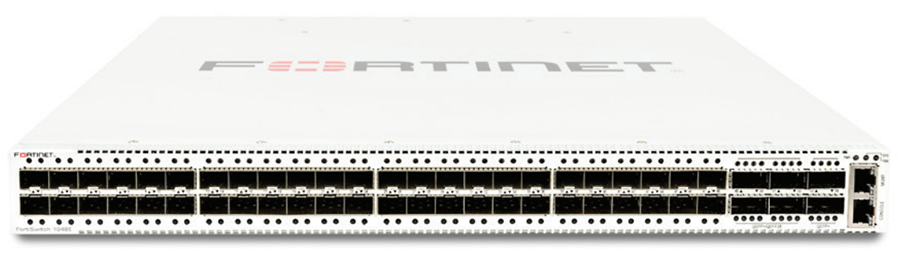

Fortinet FortiSwitch 1048E

The Fortinet FortiSwitch 1048E is a high-performance Data Center switch delivering outstanding throughput, resiliency and scalability for organizations with demanding data center network requirements. It's ideal for Top of Rack server or firewall aggregation, and for enterprise network core or edge deployments where high-performance 10GE and 40GE connectivity is required.

It reduces complexity and management cost by having network security functions managed through a single console via FortiGate. This lets every user be authenticated against the same database whether they connect over a wired or wireless network, including temporary guest users, with the same security policy applying regardless of how or where they connect.

With 48x GE/10GE SFP+ ports and 4x 40GE QSFP+ uplinks behind a 1280 Gbps switching fabric, the 1048E is future-proofed for the bandwidth demands of intensive data center and network core applications, and maximises availability with dual hot-swappable power supplies.

Key features

• 48x GE/10GE SFP+ ports plus 4x 40GE QSFP+ uplinks
• 1280 Gbps switching capacity at 1920 Mpps forwarding
• 128,000-entry MAC address table and support for up to 4K VLANs
• Web and CLI management, with configuration and visibility available through either interface
• FortiLink integration — managed from a single Security Fabric console via FortiGate
• 2 GB DRAM with 9 MB packet buffers for deep queuing under load
• Dual hot-swappable AC power supplies for high-availability data center deployments
• Limited lifetime warranty on the hardware

Works with

• FortiGate firewalls
• The Fortinet range

Frequently asked questions

How is the FortiSwitch 1048E managed?

Through a web GUI or CLI, either standalone or via FortiLink from an integrated FortiGate controller, which brings network security and access layer functions under one console with centralised policy control.

What's the difference between FortiCare Premium and Elite support?

Both are paid support tiers for the 1048E, available in 1, 3 or 5 year terms. Elite is priced above Premium at every term length, reflecting an enhanced service level; full SLA details are confirmed at quotation.

Does the 1048E support Power over Ethernet?

No — it's a Data Center switch built for high-density 10GE/40GE aggregation rather than PoE access. It runs from dual hot-swappable AC power supplies for redundancy.
