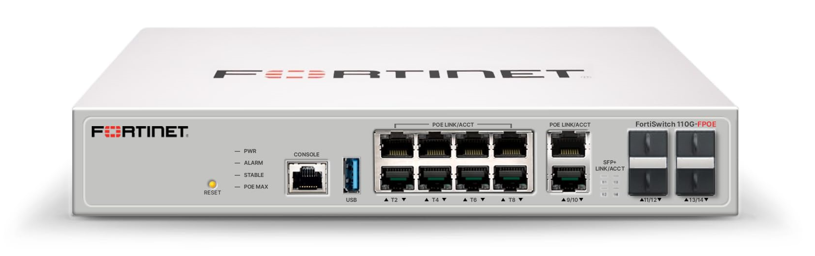

Fortinet FortiSwitch 110G-FPOE

The Fortinet FortiSwitch 110G-FPOE is part of the FortiSwitch Access family, built for enterprise branch offices and small-to-mid sized business networks that need secure, easy-to-manage Ethernet switching without adding operational overhead. It's a fanless desktop switch with built-in PoE, sized for a comms cabinet or a small branch office rather than a data centre rack.

It connects to a FortiGate Next-Generation Firewall over FortiLink, Fortinet's proprietary switch-management protocol. FortiLink turns the switch into a logical extension of the FortiGate, so wired and wireless security policy, VLANs and access-layer functions are all managed from the same FortiGate console.

With FortiLink enabled, the FortiGate can also profile and onboard connecting devices with basic Network Access Control (NAC): automatic segmentation and security policy per device type, quarantine for compromised endpoints, and virtual patching against known threats — giving the switch a built-in foundation for zero-trust network access (ZTNA) at the edge.

Key features

• 2x 5G/2.5G/1G/100M RJ45 ports with 802.3bt PoE, plus 8x 2.5G/1G/100M/10M RJ45 ports with 802.3af/at PoE
• 4x 10G/1G/100M SFP+/SFP uplink slots for fibre or copper transceivers
• 200W total PoE power budget across the PoE-capable ports
• 140 Gbps switching capacity and 208 Mpps forwarding rate
• Fanless desktop design with a dedicated 10/100 management port and RJ-45 serial console
• 4k VLANs, 640 ACL entries and 32 spanning tree instances
• FortiLink integration with any FortiGate for single-console management and NAC
• Limited lifetime warranty

Works with

• FortiGate firewalls
• The Fortinet range

Frequently asked questions

How is the FortiSwitch 110G-FPOE managed?

Over FortiLink, from the integrated switch controller on any FortiGate Next-Generation Firewall — giving centralised, single-pane-of-glass management of both the wired switch ports and the FortiGate's security policy.

What's the difference between FortiCare Premium and Elite support?

Both are paid support tiers for the 110G-FPOE, available in 1, 3 or 5 year terms, with Elite sitting above Premium for enhanced response levels. As a newly listed model, pricing for both tiers is confirmed at quotation — use the Request a Quotation button below.

What PoE does the 110G-FPOE provide?

A 200W PoE budget shared across its two 5G ports (802.3bt) and eight 2.5G ports (802.3af/at), enough to power access points, IP phones or cameras directly from the switch.

Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
