Fortinet

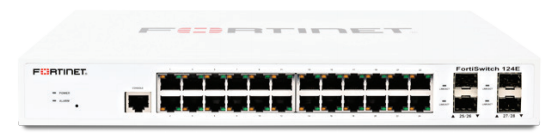

FC-10-WP12E-247-02-12Fortinet FortiSwitch 124E
List PriceThe FortiSwitch 124E is one of Fortinet's Secure Access switches, built to give small and mid-sized businesses, distributed enterprises and branch offices a secure, simple and scalable Ethernet layer. It integrates tightly with the FortiGate® Network Security Platform, so the switch can be managed directly from the familiar FortiGate interface — a single pane of glass for every user and device on the network, regardless of how they connect.
Running in FortiLink mode, network security functions are managed through one console on FortiGate, so wired and wireless users, including temporary guests, are authenticated against the same user database. The same security policy can then be applied to a user or device no matter how or where it connects.
This model does not provide Power over Ethernet; where PoE is required, the -POE or -FPOE variants of this series carry it instead.
Key features
- 24x GE RJ45 and 4x GE SFP
- RJ-45 serial console port for local management
- 56 Gbps switching capacity, 83 Mpps packet processing
- Up to 4 K VLANs and 8 link aggregation groups
- Managed directly from FortiGate via FortiLink, or run standalone
- Limited lifetime warranty on all models
Works with
- The Fortinet range
- FortiGate firewalls for FortiLink single-pane-of-glass management
Frequently asked questions
How is this switch managed?
The 124E can be managed directly from a FortiGate firewall over FortiLink, giving a single console for switch configuration, VLANs, PoE control and spanning tree alongside your firewall policy. It can also run in standalone mode with its own CLI and web GUI, or be enrolled in FortiLAN Cloud Management for centralised, cloud-hosted administration.
FortiCare Premium vs FortiCare Elite support — what's the difference?
Both give you access to Fortinet's TAC and firmware/software updates. FortiCare Elite adds a faster target response time and enhanced hardware replacement service level over standard FortiCare Premium support, for organisations that need a tighter response commitment on this switch.
Does this switch support Power over Ethernet?
No — the 124E does not provide PoE. If you need to power access points, IP phones or cameras directly from the switch, choose the -POE or -FPOE variant in this series instead.
Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware Specifications
| Total Network Interfaces | 24x GE RJ45 and 4x GE SFP |
|---|---|
| Dedicated Management 10/100 Port | 0 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 0 |
| PoE Power Budget | 0 |
| Mean Time Between Failures | > 10 years |
| Height x Depth x Width (inches) | 1.7 x 8.2 x 13 |
| Height x Depth x Width (mm) | 44 x 209 x 330 |
| Weight | 4.7 lbs (2.13 kg) |
| Power Required | 100–240V AC, 50–60 Hz |
| Power Supply | AC Built in |
| Redundant Power | — |
| Power Consumption (Average / Maximum) | 15.83 W /17.79 W |
| Heat Dissipation | 54 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -40–158°F (-40–70°C) |
| Humidity | 10–90% non-condensing |
System Specifications
| Switching Capacity (Duplex) | 56 Gbps |
|---|---|
| Packets Per Second (Duplex) | 83 Mpps |
| MAC Address Storage | 8 K |
| Network Latency | 4µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | 8 |
| Packet Buffers | 512 KB |
| DRAM | 256 MB DDR3 |
| FLASH | 32 MB |
Certification and Compliance
| Certification and Compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|
Warranty
| Fortinet Warranty | Limited lifetime warranty on all models |
|---|
Product details
| Brand | Fortinet |
|---|
Hardware Specifications
| Total Network Interfaces | 24x GE RJ45 and 4x GE SFP |
|---|---|
| Dedicated Management 10/100 Port | 0 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 0 |
| PoE Power Budget | 0 |
| Mean Time Between Failures | > 10 years |
| Height x Depth x Width (inches) | 1.7 x 8.2 x 13 |
| Height x Depth x Width (mm) | 44 x 209 x 330 |
| Weight | 4.7 lbs (2.13 kg) |
| Power Required | 100–240V AC, 50–60 Hz |
| Power Supply | AC Built in |
| Redundant Power | — |
| Power Consumption (Average / Maximum) | 15.83 W /17.79 W |
| Heat Dissipation | 54 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -40–158°F (-40–70°C) |
| Humidity | 10–90% non-condensing |
System Specifications
| Switching Capacity (Duplex) | 56 Gbps |
|---|---|
| Packets Per Second (Duplex) | 83 Mpps |
| MAC Address Storage | 8 K |
| Network Latency | 4µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | 8 |
| Packet Buffers | 512 KB |
| DRAM | 256 MB DDR3 |
| FLASH | 32 MB |
Certification and Compliance
| Certification and Compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|
Warranty
| Fortinet Warranty | Limited lifetime warranty on all models |
|---|
Product details
| Brand | Fortinet |
|---|
