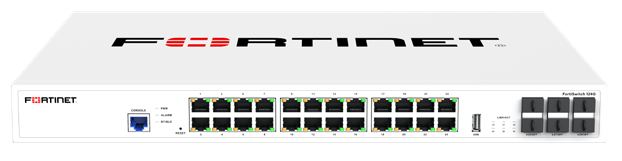

FS-124GFortinet FortiSwitch 124G
This model is quoted individually. Request a quotation below and we will confirm current pricing for the hardware and any FortiGuard bundle you need.
The Fortinet FortiSwitch 124G is part of the FortiSwitch Access family, built for enterprise branch offices and small-to-mid sized business networks that need secure, easy-to-manage Ethernet switching without adding operational overhead. It's a 1 RU rack-mount access switch without PoE, aimed at wiring closets where powering endpoints from the switch isn't needed.
It connects to a FortiGate Next-Generation Firewall over FortiLink, Fortinet's proprietary switch-management protocol. FortiLink turns the switch into a logical extension of the FortiGate, so wired and wireless security policy, VLANs and access-layer functions are all managed from the same FortiGate console.
With FortiLink enabled, the FortiGate can also profile and onboard connecting devices with basic Network Access Control (NAC): automatic segmentation and security policy per device type, quarantine for compromised endpoints, and virtual patching against known threats — giving the switch a built-in foundation for zero-trust network access (ZTNA) at the edge.
Key features
- 24x 2.5G/1G/100M/10M RJ45 access ports
- 6x 10G/1G SFP+/SFP uplink slots for fibre or copper transceivers
- 240 Gbps switching capacity and 355 Mpps forwarding rate
- 1 RU rack-mount, fanless design with an RJ-45 serial console port
- 4k VLANs, 640 ACL entries and 32 spanning tree instances
- FortiLink integration with any FortiGate for single-console management and NAC
- Limited lifetime warranty
Works with
Frequently asked questions
How is the FortiSwitch 124G managed?
Over FortiLink, from the integrated switch controller on any FortiGate Next-Generation Firewall — giving centralised, single-pane-of-glass management of both the wired switch ports and the FortiGate's security policy.
What's the difference between FortiCare Premium and Elite support?
Both are paid support tiers for the 124G, available in 1, 3 or 5 year terms, with Elite sitting above Premium for enhanced response levels. As a newly listed model, pricing for both tiers is confirmed at quotation — use the Request a Quotation button below.
Does the 124G provide Power over Ethernet?
No. The 124G is a non-PoE access switch — if you need to power access points, IP phones or cameras from the switch, the PoE-equipped 124G-FPOE variant covers the same 24-port, 6x 10G-uplink layout with an 780W PoE budget.
Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware Specifications
| Total network interfaces | 24x 2.5G/1G/100M/10M RJ45, 6x 10G/1G SFP+/SFP |
|---|---|
| Dedicated management 10/100 port | — |
| RJ-45 serial console port | 1 |
| Form factor | 1 RU rack mount |
| Power over Ethernet (PoE) ports | — (no PoE) |
| PoE power budget | — (no PoE) |
| Mean time between failures | > 10 years |
System Specifications
| Switching capacity (duplex) | 240 Gbps |
|---|---|
| Packets per second (duplex) | 355 Mpps |
| MAC address storage | 32k |
| Network latency | < 1µs |
| VLANs supported | 4k |
| Link aggregation group size | 8 |
| Total link aggregation groups | 16 |
| Packet buffers | 2MB |
| Memory | 1GB DDR4 |
| Flash | 256MB NAND |
| ACL | 640 |
| Spanning tree instances | 32 |
Dimensions
| Height x depth x width (inches) | 1.71 x 12.2 x 17.3 |
|---|---|
| Height x depth x width (mm) | 44 x 310 x 440 |
| Weight | 8.75 lbs (3.97 kg) |
Environment
| Power required | 100–240V AC, 50–60 Hz |
|---|---|
| Power supply | AC built in |
| Redundant power | No |
| Power consumption | 43.5W |
| Heat dissipation | 148.4 BTU/h |
| Operating temperature | 23°F to 113°F (-5°C to 45°C) |
| Storage temperature | -49°F to 158°F (-40°C to 70°C) |
| Humidity | 5% to 95% RH non-condensing |
| Air-flow direction | Side-to-back |
| Noise level | Fanless |
Certification and Compliance
| Compliance | FCC, ICES, CE, UKCA, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|---|
| Ingress protection | IP20 |
Warranty
| Fortinet warranty | Limited lifetime* warranty on all models |
|---|
Product details
| Brand | Fortinet |
|---|---|
| Part number | FS-124G |
