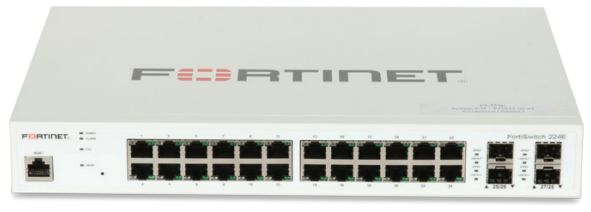

Fortinet FortiSwitch 224E

The Fortinet FortiSwitch 224E is a Layer 2/3 secure access switch with 24 Gigabit Ethernet RJ45 ports and 4 Gigabit SFP ports, built to extend the Fortinet Security Fabric into the wiring closet. Tight integration with the FortiGate Next-Generation Firewall lets the switch be managed directly from the familiar FortiGate interface, giving a single console for both wired and wireless devices.

Running in FortiLink mode, network security and access-layer functions are configured and monitored through the FortiGate, so every user and device is authenticated against the same identity store whether it connects over the wired LAN or wirelessly, including temporary guest users, and a consistent security policy follows them regardless of how they attach to the network.

The 224E is a standard, non-PoE, 1U switch, making it a straightforward choice for wiring closets and server racks where powering downstream devices such as access points or IP phones isn't required. Where PoE-powered ports are needed, the FortiSwitch 224E-POE provides the same port count with 12 PoE+ ports.

Key features

• 24x GE RJ45 ports plus 4x GE SFP uplinks, 1 dedicated 10/100 management port and an RJ-45 serial console port
• 56 Gbps switching capacity at 83 Mpps, with 16K MAC address storage and 4K VLANs supported
• Managed directly from FortiGate via FortiLink, with auto discovery, centralized VLAN configuration and remote software upgrade of switches
• 802.1x authentication (port-based, MAC-based, MAB), DHCP snooping and device detection
• Supports FortiLink FortiGate HA clusters with LAG support for the FortiLink connection
• 1 RU rack-mount form factor with built-in AC power supply and redundant AC input
• Limited lifetime warranty on all models

Works with

• FortiGate firewalls
• The Fortinet range

Frequently asked questions

How is the FortiSwitch 224E managed?

Directly from the FortiGate interface over FortiLink, giving a single console for wired and wireless security and access-layer policy. A single FortiGate can manage 8 to 256 switches depending on the model.

What's the difference between FortiCare Premium and Elite support?

Both are paid support tiers for the 224E, available in 1, 3 or 5 year terms. Elite is priced above Premium at every term length, reflecting an enhanced service level; full SLA details are confirmed at quotation.

Does the 224E support Power over Ethernet?

No. The 224E is a standard switch with no PoE output. For PoE+ powered ports, see the FortiSwitch 224E-POE, which provides 12 PoE ports on a 180W power budget.

Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
