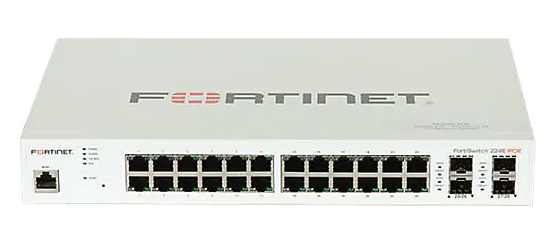

Fortinet FortiSwitch 224E-POE

The Fortinet FortiSwitch 224E-POE is a Layer 2/3 secure access switch with 24 Gigabit Ethernet RJ45 ports, 4 Gigabit SFP ports and PoE+ output on 12 of those ports with an automatic 180W power budget limit. It extends the Fortinet Security Fabric into the wiring closet, powering wireless access points, IP phones and cameras from the same switch that carries their data.

Running in FortiLink mode, the switch is managed directly from the familiar FortiGate interface, so network security and access-layer functions, including PoE control, are configured and monitored through a single console. Users and devices are authenticated against the same identity store whether they connect over the wired LAN or wirelessly, including temporary guest users.

A consistent security policy follows each user or device regardless of how or where it connects, and the same 1U chassis and redundant AC power supply used across the FortiSwitch 2xxE range keep the 224E-POE straightforward to deploy alongside other FortiSwitch models.

Key features

• 24x GE RJ45 ports plus 4x GE SFP uplinks, with 12 ports delivering 802.3af/802.3at PoE+ under a 180W power budget
• 1 dedicated 10/100 management port and an RJ-45 serial console port
• 56 Gbps switching capacity at 83 Mpps, with 16K MAC address storage and 4K VLANs supported
• Managed directly from FortiGate via FortiLink, including centralized switch PoE control and VLAN configuration
• 802.1x authentication (port-based, MAC-based, MAB), DHCP snooping and device detection
• 1 RU rack-mount form factor with an optional FRPS-740 redundant power supply
• Limited lifetime warranty on all models

Works with

• FortiGate firewalls
• The Fortinet range

Frequently asked questions

How is the FortiSwitch 224E-POE managed?

Directly from the FortiGate interface over FortiLink, giving a single console for wired and wireless security, access-layer policy and PoE control. A single FortiGate can manage 8 to 256 switches depending on the model.

What's the difference between FortiCare Premium and Elite support?

Both are paid support tiers for the 224E-POE, available in 1, 3 or 5 year terms. Elite is priced above Premium at every term length, reflecting an enhanced service level; full SLA details are confirmed at quotation.

How much PoE power does the 224E-POE provide?

12 of the 24 RJ45 ports deliver 802.3af/802.3at PoE+, with an automatic 180W total power budget across those ports.
