Fortinet
FS-248E-FPOEFortinet FortiSwitch 248E-FPOE

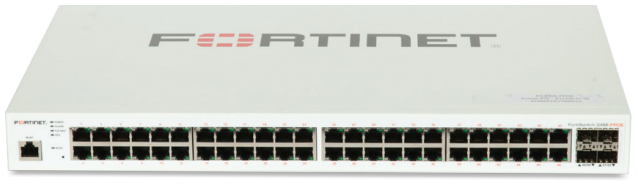

List PriceThe Fortinet FortiSwitch 248E-FPOE is a Layer 2/3 secure access switch with 48 Gigabit Ethernet RJ45 ports and 4 Gigabit SFP ports, with full PoE+ available on all 48 RJ45 ports under an automatic 740W power budget. It's designed for deployments where every access port may need to power an access point, phone or camera.
The single management framework reduces complexity and management cost: network security functions are managed through a single console via FortiGate, so all users are authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users.
The same security policy can be applied to a user or device regardless of how or where it connects to the network, while full PoE across every port simplifies installation of wireless access points and IP phones without separate power injectors.
Key features
- 48x GE RJ45 ports plus 4x GE SFP uplinks, with all 48 ports delivering 802.3af/802.3at PoE+ under a 740W power budget
- 1 dedicated management port and an RJ-45 serial console port
- 104 Gbps switching capacity at 77.4 Mpps (155 Mpps packet transfer rate cited by third-party spec listings), with 16K MAC address storage and 4K VLANs supported
- Up to 26 link aggregation groups, with a maximum group size of 8
- 802.1X port-based and MAC-based authentication with RADIUS, DHCP snooping and dynamic ARP inspection
- Layer 3 static and dynamic routing (RIPv2, VRRP, OSPFv2) when standalone
- 1 RU rack-mount, remotely manageable via CLI, HTTP/HTTPS, SNMP v1/v2c/v3, SSH and TFTP
- Limited lifetime warranty
Works with
Frequently asked questions
How is the FortiSwitch 248E-FPOE managed?
Through a single console via FortiGate over FortiLink, so all wired and wireless users and devices are authenticated against the same user database and governed by a consistent security policy. It also supports standalone management via CLI, HTTP/HTTPS or SNMP.
What's the difference between FortiCare Premium and Elite support?
Both are paid support tiers for the 248E-FPOE, available in 1, 3 or 5 year terms. Elite is priced above Premium at every term length, reflecting an enhanced service level; full SLA details are confirmed at quotation.
How much PoE power does the 248E-FPOE provide?
All 48 RJ45 ports deliver 802.3af/802.3at PoE+, with an automatic 740W total power budget across the switch.
Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Total network interfaces | 48x GE RJ45 ports and 4x GE SFP ports |
|---|---|
| Dedicated management port | 1x 10/100 |
| Serial console port | 1x RJ-45 |
| Form factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) ports | 48 (802.3af/802.3at) |
| PoE power budget | 740 W |
| Mean time between failures | > 10 years |
Switching performance
| Switching capacity | 104 Gbps |
|---|---|
| Packets per second | 77.4 Mpps |
| MAC address table size | 16,000 entries |
| Network latency | < 1µs |
| VLANs supported | 4,000 (4 K) |
| Link aggregation group size | 8 |
| Total link aggregation groups | 26 |
| Packet buffers | 1.5 MB |
| DRAM / Flash | 512 MB / 128 MB |
Software and management
| Authentication method | RADIUS, 802.1x (port-based, MAC-based, MAB) |
|---|---|
| Routing protocols | RIP-2, VRRP, OSPFv2 |
| Remote management | CLI, HTTP, HTTPS, SNMP v1/v2c/v3, SSH, TFTP, Telnet |
| Key protocols supported | LACP, LLDP, MSTP/RSTP, sFlow, DHCP snooping, DHCP relay, dynamic ARP inspection, port mirroring, storm control, tagged VLAN, jumbo frames, IGMP snooping, TDR |
| Compliant standards | IEEE 802.1AX, 802.1D, 802.3ad (LACP), 802.3af, 802.3at, 802.3u, 802.3x, 802.3z, 802.1Q, 802.1ab (LLDP), 802.1p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab |
Dimensions
| Width x depth x height | 17.3 x 16.1 x 1.7 in |
|---|---|
| Weight | 13.45 lbs |
Environment
| Nominal voltage | AC 120/230 V |
|---|---|
| Frequency required | 50–60 Hz |
| Power consumption (operational) | 47.7 W |
| Power supply type | Internal power supply |
| Operating temperature | 32°F to 122°F |
| Storage temperature | -4°F to 158°F |
| Humidity (operating) | 10–90% |
Certifications and warranty
| Warranty | Limited lifetime warranty |
|---|
Product details
| Brand | Fortinet |
|---|---|
| Part number | FS-248E-FPOE |
