Fortinet

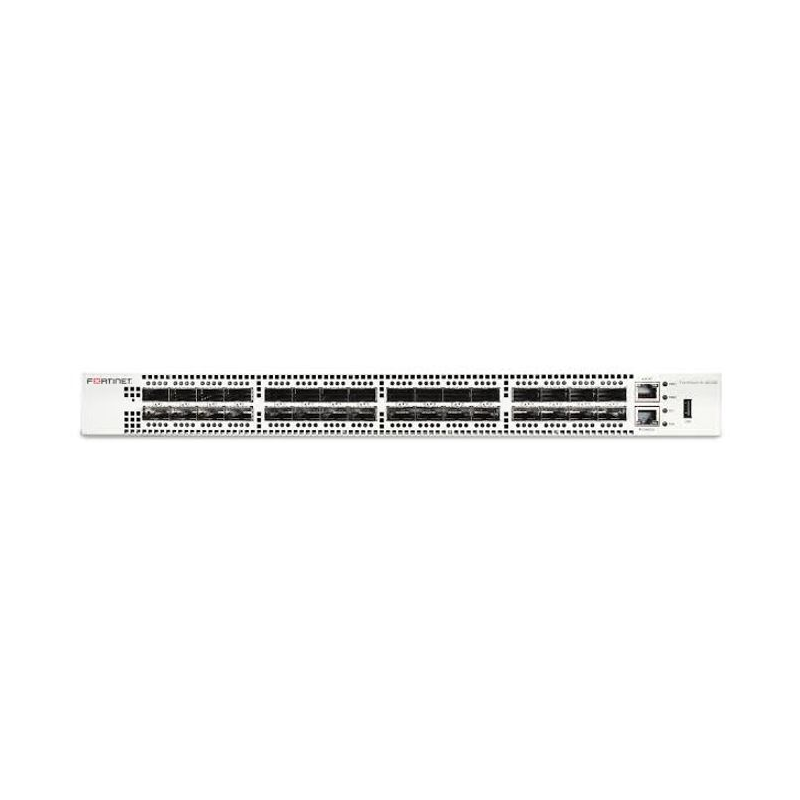

FC-10-S3E32-247-02-12Fortinet FortiSwitch 3032E
List PriceThe Fortinet FortiSwitch 3032E is a top-of-line Data Center switch delivering a secure, simple and scalable Ethernet solution with outstanding throughput, resiliency and scalability. Virtualization and cloud computing have created dense, high-bandwidth Ethernet networking requirements, and the 3032E meets them with a high-performance 40GE/100GE capable switching platform at a low total cost of ownership.
It's ideal for Top of Rack server or firewall aggregation applications, as well as SD-Branch network core deployments, and is purpose-built to meet the needs of today's most bandwidth-intensive environments with 32 ports of 40GE or 100GE connectivity behind a 6400 Gbps switching fabric.
Dual hot-swappable AC power supplies maximise network availability, while IPv4/IPv6 dual-stack routing-ready hardware and link aggregation groups of up to 48 ports give network architects the flexibility to build resilient, high-throughput data center fabrics.
Key features
- 32x 40GE/100GE QSFP+/QSFP28 ports for dense data center fan-out or spine connectivity
- 6400 Gbps switching capacity at 9520 Mpps forwarding
- IPv4/IPv6 dual-stack routing-ready hardware
- 40,000-entry MAC address table and support for up to 4K VLANs
- Link aggregation groups up to 48 ports, with 48 total LAGs supported
- 8 GB DRAM with 16 MB packet buffers for deep queuing under sustained load
- Dual hot-swappable AC power supplies for high-availability data center deployments
- Limited lifetime warranty on the hardware
Works with
Frequently asked questions
How is the FortiSwitch 3032E managed?
Via FortiLink from an integrated FortiGate controller, bringing the switch into the Fortinet Security Fabric under a single console, or as a standalone managed switch in non-FortiGate environments.
What's the difference between FortiCare Premium and Elite support?
Both are paid support tiers for the 3032E. Elite is priced above Premium, reflecting an enhanced service level; full SLA and term-length details are confirmed at quotation.
Does the 3032E support Power over Ethernet?
No — it's a top-of-line Data Center switch built for 40GE/100GE aggregation rather than PoE access. It runs from dual hot-swappable AC power supplies, drawing up to 463.8W maximum.
Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Total network interfaces | 32x 40GE/100GE QSFP+/QSFP28 ports |
|---|---|
| 10/100/1000 service port | 1 |
| Serial console port | 1x RJ-45 |
| Form factor | 1 RU rack mount |
System specifications
| Switching capacity (duplex) | 6400 Gbps |
|---|---|
| Packets per second (duplex) | 9520 Mpps |
| MAC address storage | 40 K |
| Network latency | < 1µs |
| VLANs supported | 4 K |
| IPv4/IPv6 dual-stack routing-ready hardware | Yes |
| Link aggregation group size | Up to 48 |
| Total link aggregation groups | 48 |
| Queues per port | 8 |
| Packet buffers | 16 MB |
| DRAM | 8 GB |
| NAND | 128 GB |
Dimensions
| Height x depth x width (in) | 1.69 x 18.11 x 17.26 |
|---|---|
| Height x depth x width (mm) | 43 x 460 x 438.5 |
| Weight | 19.34 lbs (8.77 kg) |
Environment
| Power required | 100–240V AC, 50–60 Hz |
|---|---|
| Power consumption (maximum) | Up to 463.8 W |
| Power supply | Dual hot-swappable AC |
| Heat dissipation | 1582.5 BTU/h |
| Operating temperature | 32–104°F (0–40°C) |
| Storage temperature | -4–158°F (-20–70°C) |
| Humidity | 10–90% RH non-condensing |
| Mean time between failures | > 10 years |
Certifications and warranty
| Certification and compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|---|
| Fortinet warranty | Limited lifetime warranty on all models |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FS-3032E |
