Fortinet

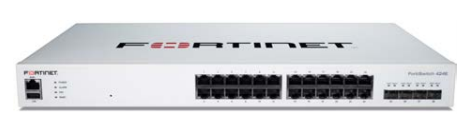

FS-424EFortinet FortiSwitch 424E
List PriceThe Fortinet FortiSwitch 424E is a Layer 2/3 secure access switch with 24 Gigabit Ethernet RJ45 ports and 4x 10 Gigabit SFP+ uplinks, part of the FortiSwitch Secure Access family built for threat-conscious businesses of all sizes that need outstanding security, performance and manageability from their access layer.
Tightly integrated into the Fortinet Security Fabric via FortiLink, the 424E can be managed directly from the familiar FortiGate interface. This single-pane-of-glass management gives complete visibility and control of users and devices on the network regardless of how they connect, making the 424E well suited to SD-Branch deployments that span desktop access through to data center aggregation.
FortiLink reduces complexity and management cost, as network security and access-layer functions are enabled and managed through a single console, with centralized, role-based policy management that's straightforward to implement and maintain.
Key features
- 24x GE RJ45 ports plus 4x 10GE SFP+ uplinks (SFP+ ports also compatible with 1GE SFP)
- 1 dedicated 10/100 management port and an RJ-45 serial console port
- 128 Gbps switching capacity at 204 Mpps, with 16K MAC address storage and 4K VLANs supported
- 2 MB packet buffers, 1 GB DDR4 DRAM and 256 MB flash
- Single-pane-of-glass management through the FortiGate interface via FortiLink
- 1 RU rack-mount form factor with built-in redundant AC power supply
- Limited lifetime* warranty on all models
Works with
Frequently asked questions
How is the FortiSwitch 424E managed?
Directly from the FortiGate interface over FortiLink, giving a single console for wired and wireless security and access-layer policy. A single FortiGate can manage 8 to 300 switches depending on the model.
What's the difference between FortiCare Premium and Elite support?
The 424E has published pricing for FortiCare Premium support in 1, 3 or 5 year terms. Elite-tier support pricing for this model should be confirmed at quotation.
Does the 424E support Power over Ethernet?
No. The 424E is a standard, non-PoE switch. For PoE+ powered ports on the same 24x GE RJ45 + 4x 10GE SFP+ port layout, see the FortiSwitch 424E-POE or the higher-budget 424E-FPOE.
Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Total network interfaces | 24x GE RJ45 and 4x 10GE SFP+ ports (SFP+ ports also compatible with 1GE SFP) |
|---|---|
| Dedicated management port | 1x 10/100 |
| Serial console port | 1x RJ-45 |
| Form factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) ports | None |
| Mean time between failures | > 10 years |
Switching performance
| Switching capacity (duplex) | 128 Gbps |
|---|---|
| Packets per second (duplex) | 204 Mpps |
| MAC address storage | 16 K |
| Network latency | < 1µs |
| VLANs supported | 4 K |
| Link aggregation group size | 8 |
| Total link aggregation groups | Up to number of ports |
| Packet buffers | 2 MB |
| DRAM | 1 GB DDR4 |
| Flash | 256 MB |
Dimensions
| Height x depth x width | 1.75 x 10.23 x 17.3 in (44 x 260 x 440 mm) |
|---|---|
| Weight | 6.83 lbs (3.1 kg) |
Environment
| Power required | 100–240V AC, 50/60 Hz |
|---|---|
| Power supply | AC built in |
| Redundant power | Redundant AC |
| Power consumption (average / maximum) | 22.3 W / 23.6 W |
| Heat dissipation | 76.04 BTU/h |
| Operating temperature | 32–113°F (0–45°C) |
| Storage temperature | -4–158°F (-20–70°C) |
| Humidity | 5–95% non-condensing |
Certifications and warranty
| Certification and compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|---|
| Fortinet warranty | Limited lifetime* warranty on all models |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FS-424E |
