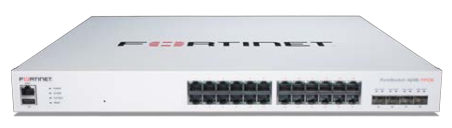

Fortinet FortiSwitch 424E-FPOE

The Fortinet FortiSwitch 424E-FPOE is a Layer 2/3 secure access switch with 24 Gigabit Ethernet RJ45 ports, 4x 10 Gigabit SFP+ uplinks, and 802.3af/at PoE+ on all 24 RJ45 ports under an increased 421W power budget, the highest PoE budget in the 424E family. It's built for deployments running higher-draw PoE devices across every access port.

Tightly integrated into the Fortinet Security Fabric via FortiLink, the 424E-FPOE can be managed directly from the familiar FortiGate interface. This single-pane-of-glass management gives complete visibility and control of users and devices on the network regardless of how they connect, making the 424E-FPOE well suited to SD-Branch deployments that span desktop access through to data center aggregation.

FortiLink reduces complexity and management cost, as network security and access-layer functions, including PoE control, are enabled and managed through a single console, with centralized, role-based policy management that's straightforward to implement and maintain.

Key features

• 24x GE RJ45 ports plus 4x 10GE SFP+ uplinks (SFP+ ports also compatible with 1GE SFP)
• All 24 RJ45 ports deliver 802.3af/802.3at PoE+ under a 421W power budget, the highest in the 424E family
• 1 dedicated 10/100 management port and an RJ-45 serial console port
• 128 Gbps switching capacity at 204 Mpps, with 16K MAC address storage and 4K VLANs supported
• 2 MB packet buffers, 1 GB DDR4 DRAM and 256 MB flash
• Single-pane-of-glass management through the FortiGate interface via FortiLink, including centralized switch PoE control
• 1 RU rack-mount form factor with built-in redundant AC power supply

Works with

• FortiGate firewalls
• The Fortinet range

Frequently asked questions

How is the FortiSwitch 424E-FPOE managed?

Directly from the FortiGate interface over FortiLink, giving a single console for wired and wireless security, access-layer policy and PoE control. A single FortiGate can manage 8 to 300 switches depending on the model.

What's the difference between FortiCare Premium and Elite support?

Both are paid support tiers for the 424E-FPOE, available in 1, 3 or 5 year terms. Elite is priced above Premium at every term length, reflecting an enhanced service level; full SLA details are confirmed at quotation.

How much PoE power does the 424E-FPOE provide?

All 24 RJ45 ports deliver 802.3af/802.3at PoE+, with an automatic 421W total power budget across the switch, higher than the standard 424E-POE.

Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
