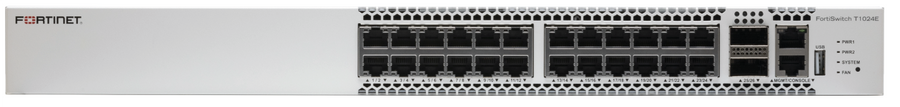

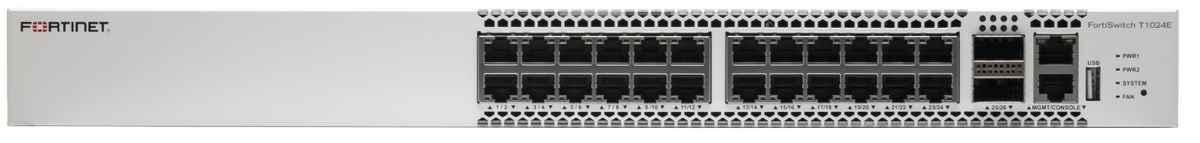

Fortinet FortiSwitch T1024E

The Fortinet FortiSwitch T1024E is a high-density Data Center switch delivering a secure, simple and scalable Ethernet solution with outstanding throughput, resiliency and scalability. Unlike the SFP+ based 1024E, the T1024E brings this same 880 Gbps switching fabric to copper connectivity, with 24x 1G/2.5G/5G/10GBASE-T ports for servers and equipment that need multi-gigabit RJ45 rather than fibre.

The FortiSwitch Data Center Series supports FortiGate management through FortiLink, extending the Fortinet Security Fabric down to the Ethernet port level. The same policies configured on FortiGate interfaces can be applied to the T1024E's Ethernet ports, reducing complexity and management cost, with centralised, role-based policy control and consistent authentication for users and devices regardless of how or where they connect.

With 24x 10GBASE-T-capable copper ports and 2x 100GE QSFP28 uplinks, the T1024E is commonly deployed and managed through a FortiGate with FortiLink, but can equally be deployed and managed standalone in non-FortiGate environments, drawing a lower maximum power of 128W thanks to its copper PHY design.

Key features

• 24x 1G/2.5G/5G/10GBASE-T copper ports plus 2x 100GE QSFP28 uplinks
• 880 Gbps switching capacity at 1039 Mpps forwarding
• FortiLink integration — becomes a logical extension of any FortiGate, managed from a single Security Fabric console, or deployable standalone
• 64,000-entry MAC address table and support for up to 4K VLANs
• Link aggregation groups up to 24 ports for high-throughput uplinks
• 8 GB DRAM with 8 MB packet buffers for deep queuing under load
• Lower maximum power draw of 128W versus the SFP+ based 1024E
• Dual hot-swappable AC power supplies for high-availability deployments

Works with

• FortiGate firewalls
• The Fortinet range

Frequently asked questions

How is the FortiSwitch T1024E managed?

Via FortiLink from the integrated controller on any FortiGate, extending the Fortinet Security Fabric to the port level. It can also be deployed and managed as a standalone switch in non-FortiGate environments.

What's the difference between FortiCare Premium and Elite support?

Both are paid support tiers for the T1024E, available in 1, 3 or 5 year terms. Elite is priced above Premium at every term length, reflecting an enhanced service level; full SLA details are confirmed at quotation.

Does the T1024E support Power over Ethernet?

No — it's a Data Center switch built for 10GBASE-T/100GE aggregation rather than PoE access. It runs from dual hot-swappable AC power supplies, drawing up to 128W maximum.
