Fortinet

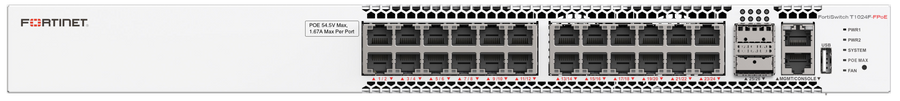

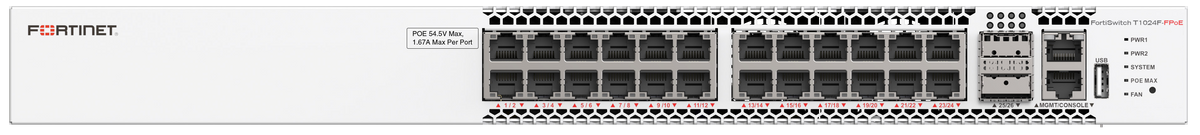

FS-T1024F-FPOEFortinet FortiSwitch T1024F-FPOE
List PriceThe Fortinet FortiSwitch T1024F-FPOE is a FortiSwitch Data Center switch, delivering a secure, simple, scalable Ethernet solution with outstanding throughput, resiliency and scalability for dense high-bandwidth networking. It combines 24 GE/multi-gigabit/10GE capable copper ports — each able to deliver PoE — with 2x 100GE QSFP28 uplinks, aimed at Top-of-Rack server or firewall aggregation and SD-Branch network core deployments.
Like the rest of the FortiSwitch Data Center series, the T1024F-FPOE is managed through FortiLink, Fortinet's proprietary protocol that extends the Fortinet Security Fabric down to the Ethernet port level. The same policies configured on FortiGate interfaces can be applied directly to the switch's ports, so network security and access-layer functions are administered from a single console.
The T1024F-FPOE is commonly deployed and managed through a FortiGate with FortiLink, but can also run standalone in non-FortiGate environments. Users and devices are authenticated against the same database and receive the same security policy regardless of where or how they connect.
Key features
- 24x GE/MGIG/10GE-capable fixed copper ports plus 2x 100GE QSFP28 uplinks
- 24x 802.3af/at/bt type 4 PoE ports with a 1440W PoE power budget
- 880 Gbps switching capacity (duplex)
- Dual hot-swappable AC power supplies for redundancy
- 1 RU rack-mount appliance with dedicated 10/100/1000 service port and RJ-45 serial console port
- FortiLink integration with FortiGate, extending Security Fabric policy to the Ethernet port level
- Limited lifetime hardware warranty on the switch itself
Works with
- FortiGate firewalls — for FortiLink-managed deployment
- The Fortinet range
Frequently asked questions
How is the FortiSwitch T1024F-FPOE managed?
Most commonly through FortiLink, connected to a FortiGate Next-Generation Firewall, which extends the Fortinet Security Fabric and its policies down to the switch's Ethernet ports for a single console of network security and access management. It can also be deployed and managed standalone in non-FortiGate environments.
What's the difference between FortiCare Premium and Elite support?
Both are paid support tiers for the T1024F-FPOE, available in 1, 3 or 5 year terms. Elite is priced above Premium at every term length, reflecting an enhanced service level; full SLA details are confirmed at quotation.
How much PoE power is available?
Up to 1440W across the 24 PoE-capable copper ports, delivered as 802.3af/at/bt type 4 — suited to powering access points, cameras and other PoE devices directly from a Top-of-Rack or aggregation switch.
Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware Specifications
| Total network interfaces | 24x GE/MGIG/10GE capable fixed copper ports and 2x 100GE QSFP28 |
|---|---|
| 10/100/1000 service ports | 1 |
| RJ-45 serial console port | 1 |
| Form factor | 1 RU rack-mount appliance |
| Power over Ethernet (PoE) ports | 24 (802.3 af/at/bt type 4) |
| PoE power budget | 1440 W |
System Specifications
| Switch capacity (duplex) | 880 Gbps |
|---|---|
| Packets per second | 1309 Mbps |
| MAC address storage | 64,000 |
| Network latency | < 1us |
| VLANs supported | 4k |
| Link aggregation group size | Up to 24 |
| Total link aggregation groups | Up to number of ports |
| Queues/port | 8 |
| Packet buffers | 8 MB |
| DRAM | 8 GB |
| NAND | 32 MB |
Dimensions
| Height x width x length (in) | 1.73 x 16.14 x 17.32 |
|---|---|
| Height x width x length (mm) | 44 x 410 x 440 |
| Weight | 16.53 lbs (7.5 kg) |
Environment
| Power required | 100–240V AC, 50–60 Hz |
|---|---|
| Power consumption (max) | 1660 W |
| Power supply | Dual hot-swappable AC |
| Heat dissipation | 5664 BTU/h |
| Operating temperature | 32°F to 113°F (0°C to 45°C) |
| Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Humidity | 10% to 95% RH non-condensing |
| Air flow | Front to back |
| Mean time between failures | > 10 years |
Certification and Compliance
| Certifications | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|
Warranty
| Fortinet warranty | Limited lifetime warranty on all models |
|---|
Product details
| Brand | Fortinet |
|---|---|
| Part number | FS-T1024F-FPOE |
Hardware Specifications
| Total network interfaces | 24x GE/MGIG/10GE capable fixed copper ports and 2x 100GE QSFP28 |
|---|---|
| 10/100/1000 service ports | 1 |
| RJ-45 serial console port | 1 |
| Form factor | 1 RU rack-mount appliance |
| Power over Ethernet (PoE) ports | 24 (802.3 af/at/bt type 4) |
| PoE power budget | 1440 W |
System Specifications
| Switch capacity (duplex) | 880 Gbps |
|---|---|
| Packets per second | 1309 Mbps |
| MAC address storage | 64,000 |
| Network latency | < 1us |
| VLANs supported | 4k |
| Link aggregation group size | Up to 24 |
| Total link aggregation groups | Up to number of ports |
| Queues/port | 8 |
| Packet buffers | 8 MB |
| DRAM | 8 GB |
| NAND | 32 MB |
Dimensions
| Height x width x length (in) | 1.73 x 16.14 x 17.32 |
|---|---|
| Height x width x length (mm) | 44 x 410 x 440 |
| Weight | 16.53 lbs (7.5 kg) |
Environment
| Power required | 100–240V AC, 50–60 Hz |
|---|---|
| Power consumption (max) | 1660 W |
| Power supply | Dual hot-swappable AC |
| Heat dissipation | 5664 BTU/h |
| Operating temperature | 32°F to 113°F (0°C to 45°C) |
| Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Humidity | 10% to 95% RH non-condensing |
| Air flow | Front to back |
| Mean time between failures | > 10 years |
Certification and Compliance
| Certifications | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|
Warranty
| Fortinet warranty | Limited lifetime warranty on all models |
|---|
Product details
| Brand | Fortinet |
|---|---|
| Part number | FS-T1024F-FPOE |
