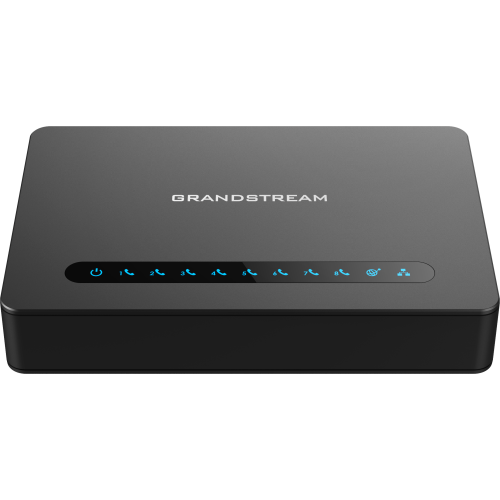

Grandstream HT818 8-Port FXS Gateway with Gigabit NAT Router

The Grandstream HT818 is the largest of the desktop analogue gateways: eight FXS ports in a small fanless box with a two-port Gigabit router built in. It is the sensible stopping point before a rack-mounted GXW — enough capacity for a small hotel, a surgery or a floor of a factory, without a comms room.

Up to four SIP profiles means the eight ports do not have to belong to one provider or one system. A group of extensions on the office PBX, a fax on a separate carrier and an alarm line somewhere else can all live on the same box.

Each port is an ordinary analogue line as far as the device plugged into it is concerned — dial tone, ring current, the lot.

Key features

• 8 FXS ports — eight independent analogue devices
• Up to 4 SIP profiles — split the ports across providers or systems
• 2 Gigabit Ethernet ports with a built-in NAT router
• T.38 fax relay to 14.4 kbps, with automatic fallback to G.711
• Wide codec support — G.711, G.723.1, G.726, G.729A/B, iLBC and Opus
• HD voice on the analogue ports
• TLS and SRTP — signalling and media encryption
• Automated provisioning — deploy without touching each unit
• Fanless — silent, so it can live in an office rather than a plant room

Works with

• HT812 V2 — two FXS ports
• HT814 V2 — four FXS ports
• GXW4216 V2 — 16 ports, rack mounted
• PSU for HT818 — spare or replacement power supply
• Grandstream UCM IP PBX range — register the ports to an on-site PBX
• PSUs and accessories

Frequently asked questions

Will my existing analogue phones just work?

Yes. An FXS port supplies line voltage, dial tone and ring current exactly as an analogue exchange line does, so the handsets behave normally.

Do fax machines actually work over this?

It supports T.38 fax relay, which carries the fax as data instead of pushing fax tones through a voice codec, and falls back to G.711 if T.38 is unavailable. Your provider or PBX also needs to support T.38.

HT818 or a GXW4216?

Port count and where it lives. Eight devices and no rack — the HT818, silent and desktop sized. Sixteen or more devices, or a comms room and a punch-down block — the GXW.

Can different ports use different providers?

Yes, up to four SIP profiles. Ports can be grouped so a fax sits on one carrier while the extensions sit on the office PBX.

Does it need to be my router?

No. The NAT router is there if you want it inline at a small site, but it works perfectly well plugged into an existing network as an ordinary device.

How many ports do I actually need?

One per analogue device, not per user. Count the handsets, fax machines, lift phones, door entry panels and alarm diallers — buildings routinely have more than the plan says.
