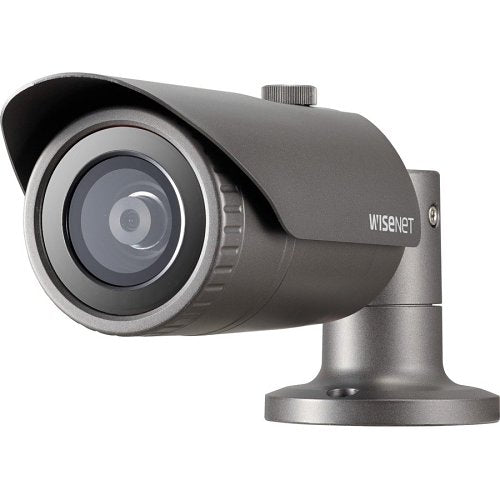

QNO-7022R/VEUHanwha QNO-7022R Q Series, WDR IP66 4MP 4mm Fixed Lens, IR 25M IP Bullet Camera, Grey
The Hanwha QNO-7022R Q Series, WDR IP66 4MP 4mm Fixed Lens, IR 25M IP Bullet Camera, Grey is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.
A CMOS sensor captures 4MP (2560 x 1440) video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.
The 4mm fixed lens gives a 78.2° horizontal field of view.
Active illumination, near-infrared illumination reaches up to 25 m for night-time coverage, and the minimum illumination is 0.1500 lux.
It connects over Ethernet, encoding video as H.264, H.265, MJPEG.
It runs from 12V DC, and it records locally to sd card.
It is rated IP66 and IK10 for outdoor use, and operates from -40°C to 55°C and mounts pole.
Discover the power of high-quality surveillance with the Hanwha QNO-7022R Q Series IP Bullet Camera. This robust camera features a 4MP resolution and a 4mm fixed lens, ensuring clear and detailed footage. Equipped with WDR and rated IP66, it's perfect for both indoor and outdoor environments. The advanced CMOS sensor not only consumes less power but also delivers superior HD videos compared to CCD sensors. With its ability to provide night vision up to 25 meters, you can rest assured of security around the clock. Upgrade your security setup today and experience peace of mind with Hanwha Vision!
Key features
- Network camera - Helps achieve high-quality video results
- Provides night vision of objects at a distance of up to 25 m
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Maximum 4MP resolution
- 4mm fixed focal
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- Hallway view (90°/270°), LDC support
- Micro SD/SDHC/SDXC memory slot (128GB)
- IR viewable length 25m (82.02ft)
- IP66, IK10, PoE, 12VDC
- Automatic White Balance
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
General
- Product Series: Q
- Product Type: Bullet Cameras
- Part number: QNO-7022R/VEU
- Brand: Hanwha Vision
Technical Information
- Connectivity Technology: Wired
- Effective Camera Resolution: 4MP
- Field of View: Diagonal, Horizontal, Vertical
- Field of View (Horizontal): 78.2°
- Field of View (Vertical): 41.20°
- Lens Type: Fixed
- Maximum Aperture: f/1.6
- Maximum Frame Rate: 30fps
- Minimum Focal Length: 4.00mm
- Night Vision: Yes
- Night Vision Type: Active Illumination, Near-Infrared (NIR)
- Video Formats: H.264 / AVC, H.265 / HEVC, MJPEG
- Video Resolution: 1280 x 720
- Wide Dynamic Range: Yes
Camera
- Image Sensor Type: CMOS
- Night Vision Distance: 25.00m
Certifications
- Ingress Protection Rating: IP66
- TAA Compliant: No
Display & Graphics
- Maximum Video Resolution: 2560 x 1440
Environmental Conditions
- Maximum Operating Temperature: 55°C
- Minimum Operating Temperature: -40°C
- Operating Humidity: 95%
Exposure
- Longest Shutter Speed: 1/5 Second
- Minimum Illumination: 0.1500lux
- Shortest Shutter Speed: 1/12000 Second
Interfaces/Ports
- Network (RJ-45): Yes
Lens
- Focal Length: 4mm
- Lens Included: Yes
- Maximum Focal Length: 4.00mm
Network & Communication
- Remote Management: Yes
Physical Characteristics
- Colour: Silver
- Durability: Dustproof, Impact Resistant, Waterproof
- Form Factor: Bullet
- Weight: 700.00g
Power Description
- Input Voltage: 12V DC
Product Information
- Diameter: 70.00mm
- Mount Type: Pole Mount
Storage
- Recording Formats: H.264, H.265 / HEVC
- Storage Type: SD Card
Video
- Analog Video Signal Format: CVBS (Composite Video Baseband Signal)
- Maximum Resolution: 1280 x 720
Miscellaneous
- Features: Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
- Impact Protection Rating: IK10
- Indoor/Outdoor: Outdoor
