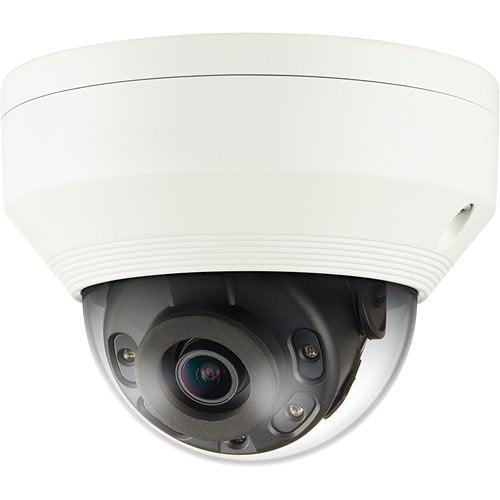

Hanwha QNV-6012R Q Series, WDR IP66 2MP 2.8mm Fixed Lens, IR 20M IP Dome Camera, White

Hanwha Vision QNV-6012R/VEU

Hanwha QNV-6012R Q Series, WDR IP66 2MP 2.8mm Fixed Lens, IR 20M IP Dome Camera, White

Name: Hanwha QNV-6012R Q Series, WDR IP66 2MP 2.8mm Fixed Lens, IR 20M IP Dome Camera, White
Brand: Hanwha Vision

Exc VAT £198.00

Inc VAT £237.60

37In stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION2MP

LENS2.8mm

IR RANGE20.00m

PROTECTIONIP66

FORMDome

PLACEMENTOutdoor

The Hanwha QNV-6012R Q Series, WDR IP66 2MP 2.8mm Fixed Lens, IR 20M IP Dome Camera, White is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 2MP (1920 x 1080) video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.

The 2.8mm fixed lens gives a 113.7° horizontal field of view.

Active illumination, near-infrared illumination reaches up to 20 m for night-time coverage.

It connects over Ethernet, encoding video as H.264, H.265, MJPEG.

It runs from 12V DC, and it records locally to sd card.

The aluminum housing is rated IP66 and IK10 for outdoor use, and operates from -22°F to 131°F and mounts ceiling or wall.

Hanwha, WiseNet Q series Full HD outdoor IP dome camera, 2.8 mm fix lens, H.264/265@30 fps compression, WiseStream II support, built-in IR lighting, WDR, PoE/12 VDC

Key features

Max. 30fps@2M all resolutions (H.265/H.264)
H.265, H.264, MJPEG codec supported, Multiple streaming
Motion detection, Tampering, Defocus detection
2.8mmfixedlens
Back Light Compensation (BLC)
Built-in IR LED
Day/Night
SD Card Local Storage
Wide Dynamic Range

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Product Series: Q
Product Type: Dome Cameras
Part number: QNV-6012R/VEU
Brand: Hanwha Vision

Technical Information

Connectivity Technology: Wired
Effective Camera Resolution: 2MP
Field of View: Diagonal, Horizontal, Vertical
Field of View (Horizontal): 113.7°
Field of View (Vertical): 61.50°
Lens Type: Fixed
Maximum Aperture: f/2
Maximum Frame Rate: 30fps
Minimum Focal Length: 2.80mm
Night Vision: Yes
Night Vision Type: Active Illumination, Near-Infrared (NIR)
Video Formats: H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution: 1280 x 720
Wide Dynamic Range: Yes

Camera

Image Sensor Type: CMOS
Night Vision Distance: 20.00m

Certifications

Ingress Protection Rating: IP66
NDAA Compliant: Yes
TAA Compliant: No

Display & Graphics

Maximum Video Resolution: 1920 x 1080

Environmental Conditions

Maximum Operating Temperature: 131°F
Minimum Operating Temperature: -22°F
Operating Humidity: 90%

Exposure

Longest Shutter Speed: 1/5 Second
Minimum Illumination: 0.0000lux
Shortest Shutter Speed: 1/12000 Second

Interfaces/Ports

Network (RJ-45): Yes

Lens

Focal Length: 2.8mm
Lens Included: Yes
Maximum Focal Length: 2.80mm

Network & Communication

Remote Management: Yes

Physical Characteristics

Colour: White
Durability: Vandal Resistant
Form Factor: Dome
Height: 91.70mm
Weight: 510.00g

Power Description

Input Voltage: 12V DC

Product Information

Diameter: 120.30mm
Mount Type: Ceiling Mount, Wall Mount

Storage

Recording Formats: H.264, H.265 / HEVC
Storage Type: SD Card

Video

Maximum Resolution: 1280 x 720

Miscellaneous

Features: Back Light Compensation (BLC), Built-in IR LED, Day/Night, SD Card Local Storage, Wide Dynamic Range
Impact Protection Rating: IK10
Indoor/Outdoor: Outdoor
