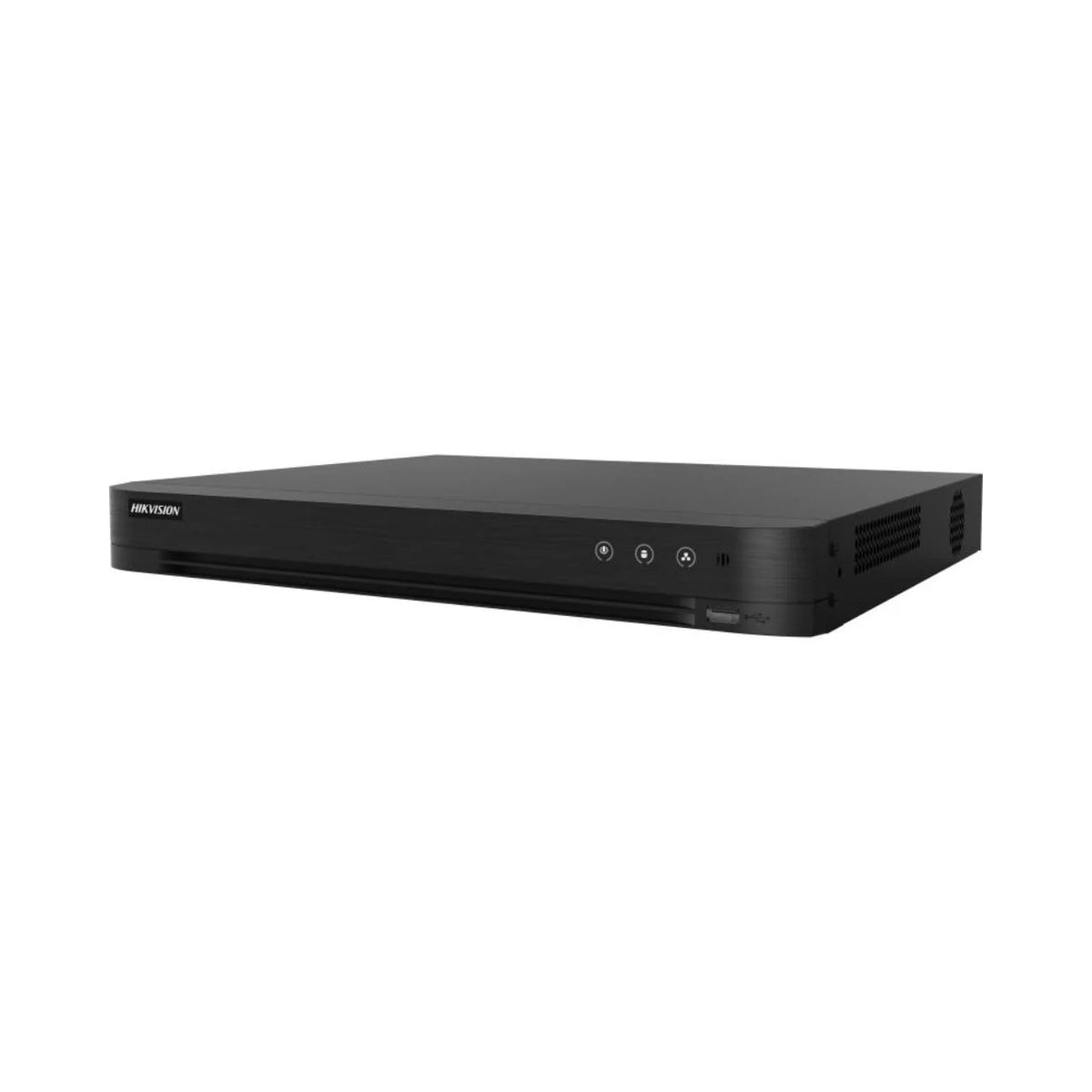

Hikvision 16-Channel DVR up to 8MP, Audio Over Coax, AcuSense, 2-SATA, HUHI Series

Hikvision iDS-7216HUHI-M2/XT

Hikvision 16-Channel DVR up to 8MP, Audio Over Coax, AcuSense, 2-SATA, HUHI Series

Name: Hikvision 16-Channel DVR up to 8MP, Audio Over Coax, AcuSense, 2-SATA, HUHI Series
Brand: Hikvision

Exc VAT £415.00

Inc VAT £498.00

In stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

**Product Overview** The **Hikvision** iDS-7216HUHI-M2/XT is a high-performance 16-channel AcuSense DVR built for professional surveillance installations that require intelligent detection, ultra-high-definition recording, and advanced video analytics. Supporting HDTVI, AHD, HDCVI, CVBS, and IP cameras, this versatile recorder is ideal for commercial premises, warehouses, schools, retail environments, and large residential properties. With support for recording resolutions up to 8MP 4K Ultra HD, it delivers outstanding image clarity whilst providing the flexibility to work with both existing analogue infrastructure and modern IP camera systems. Powered by **Hikvision**'s advanced AcuSense deep learning technology, the DVR accurately distinguishes between people and vehicles, helping to reduce false alarms caused by animals, shadows, rain, and other environmental factors. The recorder also supports facial recognition, Motion Detection 2.0, perimeter protection, and AcuSearch technology, allowing operators to quickly locate important events and improve overall security management. With support for up to 32 IP camera inputs, dual HDD storage bays, H.265 Pro+ compression, and Hik-Connect remote access, the iDS-7216HUHI-M2/XT provides a scalable and future-proof surveillance solution. **Ideal For** - Commercial buildings and office complexes - Warehouses and distribution centres - Retail stores and shopping centres - Schools and colleges - Hotels and hospitality venues - Industrial facilities - Residential developments - CCTV upgrades requiring AI-powered analytics **Benefits** - AcuSense AI significantly reduces false alarms - Human and vehicle classification improves event accuracy - Supports up to 8MP 4K recording resolution - Facial recognition enhances security monitoring - AcuSearch technology speeds up incident investigations - Motion Detection 2.0 improves event filtering - Supports analogue and IP cameras simultaneously - Dual HDD bays provide increased storage capacity

16-channel AcuSense DVR
Deep learning human and vehicle classification
Motion Detection 2.0 on all analogue channels
Facial recognition and face picture search
Perimeter protection analytics
AcuSearch intelligent search technology
H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 compression
HDMI and VGA simultaneous video output
HDTVI two-way audio support
Audio over coaxial cable support
Smart playback and event search
Hik-Connect remote viewing
ONVIF compatibility
USB backup functionality
Support for analogue and IP cameras

Model: iDS-7216HUHI-M2/XT
Video Channels: 16 Analogue Channels
IP Camera Support: Up to 32 IP Channels
Maximum IP Camera Resolution: Up to 8MP
Video Input Formats: HDTVI, AHD, HDCVI, CVBS, IP
Human & Vehicle Classification: Up to 16 Channels
Facial Recognition: Up to 4 Channels
Perimeter Protection: Up to 16 Channels
AcuSearch: Up to 16 Channels
Motion Detection 2.0: All Analogue Channels
Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
Recording Resolution: Up to 8MP @ 8fps, 5MP @ 12fps
HDMI Output: Up to 4K (3840 × 2160) @ 30Hz
VGA Output: Up to 1920 × 1080 @ 60Hz
CVBS Output: 1 Channel
Audio Input: 1 RCA (up to 16 channels via coaxial audio)
Audio Output: 1 RCA
Two-Way Audio: Supported
Synchronous Playback: Up to 16 Channels
Decoding Capability: Up to 24 × 1080p @ 30fps
Network Interface: 1 × RJ45 Gigabit Ethernet Port
Total Bandwidth: 256 Mbps
Storage Bays: 2 × SATA HDD
Maximum HDD Capacity: Up to 12TB per HDD
Maximum Storage Capacity: Up to 24TB
USB Ports: 1 × USB 2.0 (Front), 2 × USB 3.0 (Rear)
RS-485: Supported
Remote Connections: Up to 128 Users
Power Supply: 12V DC, 5A
Power Consumption: ≤ 60W (without HDD)
Operating Temperature: -10°C to +55°C
Dimensions: 384 × 317 × 52 mm
Weight: ≤ 2.1kg (without HDD)
