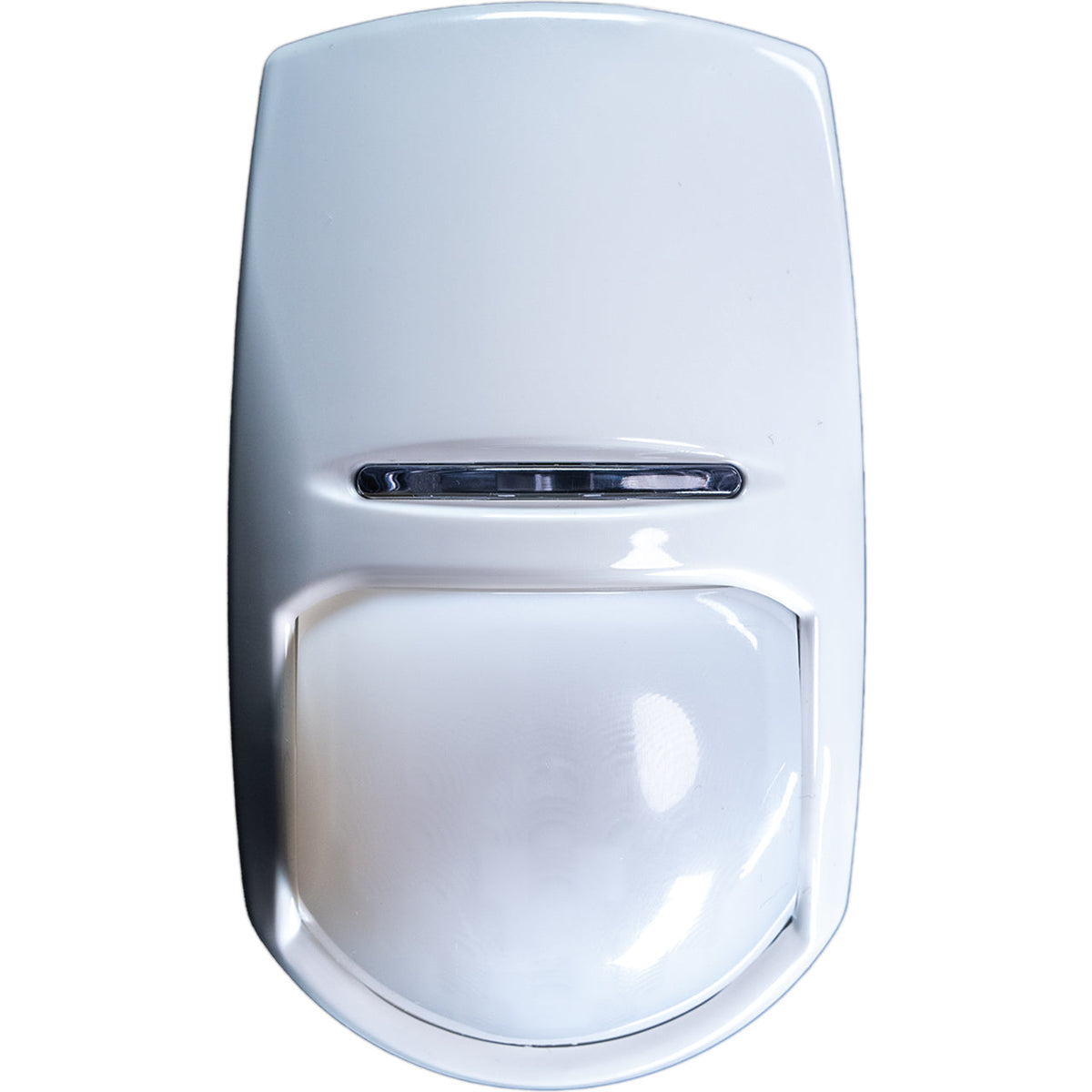

Pyronix Wired 15m Dual Tech PIR
Pyronix KX15DT3

Pyronix Wired 15m Dual Tech PIR

Exc VAT £37.00
Inc VAT £44.40
In stock
Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

The Pyronix KX15DT is a hard-wired 15m dual-technology detector that pairs a PIR sensor with a microwave Doppler sensor. It is aimed at homes and commercial premises where a PIR-only detector could be prone to false alarms. It is certified to EN 50131 Grade 2, Environmental class II, for systems installed to PD 6662, and wires to the Pyronix EURO range or any conventional wired control panel.

In the default AND mode both technologies must trigger together before an alarm is signalled, which cuts false alarms; an OR mode is also available. Microwave range is set with a potentiometer from 0 to 15m, PIR sensitivity is auto or high, and a link selects 50Hz or 60Hz mains. Three LEDs show microwave, PIR and alarm activity, which makes walk testing straightforward.

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

  • PIR plus microwave Doppler detection for fewer false alarms
  • AND (conventional dual-tech) or OR alarm mode selection
  • Microwave range adjustable from 0 to 15m by potentiometer
  • Auto (default) or high PIR sensitivity
  • Separate LEDs for microwave (orange), PIR (green) and alarm (blue)
  • Selectable on-board EOL resistors for DEOL and zone-doubling wiring
  • 50Hz or 60Hz mains frequency selection
  • Back tamper and wall or ceiling bracket mounting options
  • Model: KX15DT (KX15DT3)
  • Detector type: Wired dual technology: dual-element pyroelectric sensor and microwave Doppler sensor
  • Detection range: 15m (13m under EN 50131-2-2 and INCERT criteria)
  • Detection angle: 85°, 56 zones on 6 planes
  • Detection speed: 0.3–3.0 m/s
  • PIR sensitivity: Auto (default) or high
  • Grade (EN 50131): Grade 2
  • Environmental class: Class II
  • Certification: EN 50131-2-2:2008, EN 50131-1:2006+A1:2009, PD 6662:2010
  • Operating voltage: 9–16V DC (13.8V DC typical)
  • Current consumption: 24mA (min) to 30mA (max) at 12V
  • Relay output: 50mA, 60V DC / 42V AC (RMS); contact resistance under 10 ohms
  • Tamper switch: 12V, 50mA
  • Mounting height: 1.8–2.4m
  • Operating temperature: -10°C to +40°C certified; -30°C to +70°C nominal
  • Storage temperature: -40°C to +80°C
  • Casing: 3mm ABS, 0.4mm HDPE in lens area
  • Colour: White
  • Dimensions: 117 x 69 x 50mm
  • Weight: 125g
  • EMC: EN 55022 Class B emissions; EN 50130-4 immunity
