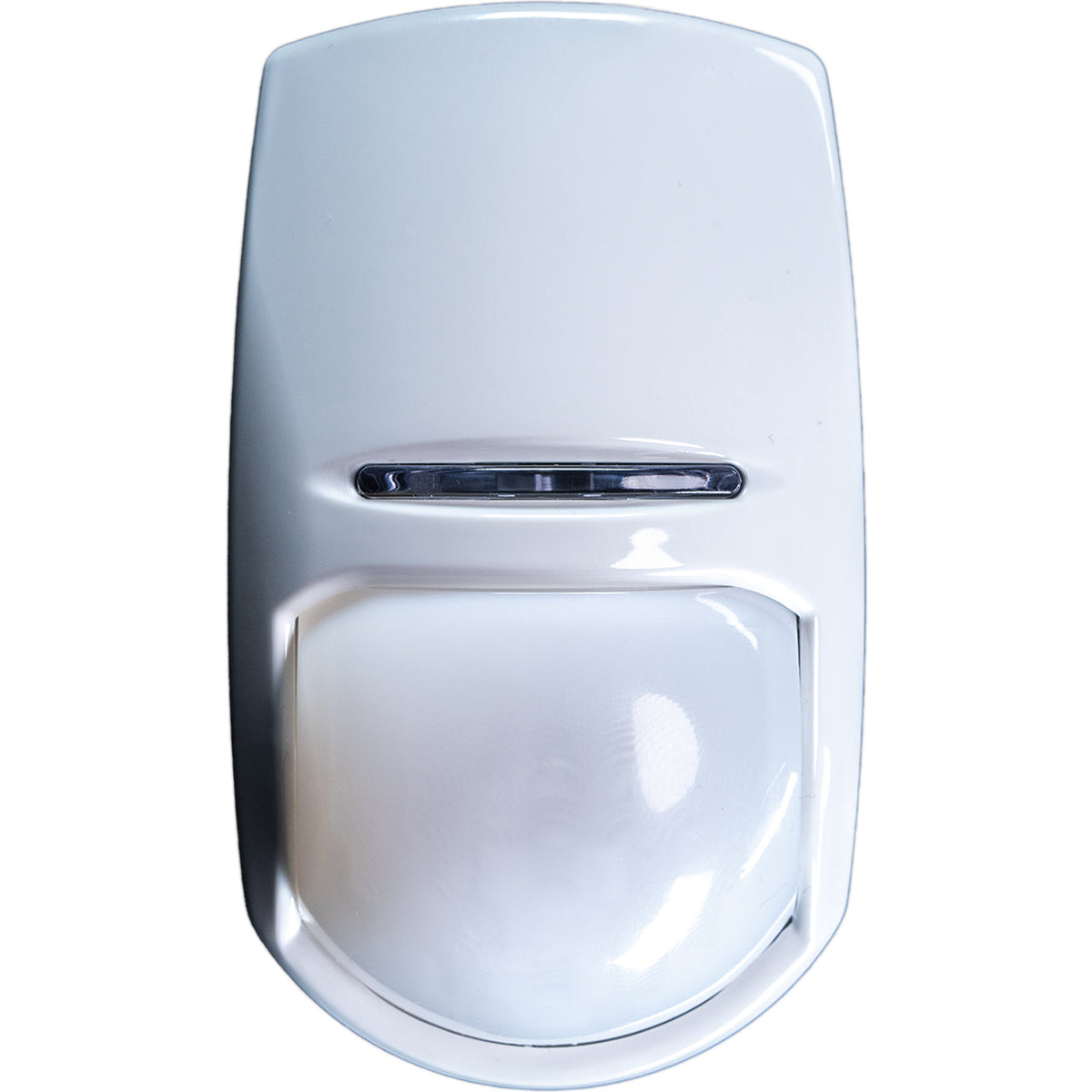

Pyronix Wired 15m PIR
Pyronix FPKX15EDHT

Pyronix Wired 15m PIR

Exc VAT £17.00
Inc VAT £20.40
In stock
Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

The Pyronix KX15ED is the entry-level hard-wired PIR detector in the KX range, giving 15m volumetric coverage for rooms, offices, hallways and similar spaces. It is certified to EN 50131-2-2 at Grade 2, Environmental class II, for systems installed to PD 6662, and connects to the Pyronix EURO range or any conventional wired control panel.

A low-noise dual-element pyroelectric sensor sits behind an 85° lens with 60 detection zones. Sensitivity is set high or low with a link, and advanced automatic temperature compensation keeps detection consistent as room temperature changes. Header pins on the circuit board select end-of-line resistor values for normally closed, EOL or zone-doubling wiring, and a red LED confirms activations and the power-up self-test.

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

  • 15m volumetric coverage from an 85° lens with 60 zones
  • High (default) or low PIR sensitivity
  • Advanced automatic temperature compensation
  • Selectable on-board EOL resistors for EOL and zone-doubling wiring
  • Alarm LED can be switched on or off
  • Self-test on power-up, shown by a flashing red LED
  • Back tamper and wall or ceiling bracket mounting options
  • Model: KX15ED (FPKX15EDHT)
  • Detector type: Wired PIR, low-noise dual-element pyroelectric sensor
  • Detection range: 15m
  • Detection angle: 85°, 60 zones
  • Detection speed: 0.3–3.0 m/s
  • PIR sensitivity: High or low
  • Grade (EN 50131): Grade 2
  • Environmental class: Class II
  • Certification: EN 50131-2-2:2008, PD 6662:2010
  • Operating voltage: 9–16V DC (13.8V DC typical)
  • Current consumption: 12mA (min) to 14mA (max) at 12V
  • Relay output: 50mA, 60V DC / 42V AC (RMS); contact resistance under 10 ohms
  • Tamper switch: 12V, 50mA
  • Mounting height: 1.8–2.4m
  • Operating temperature: -10°C to +40°C certified; -30°C to +70°C nominal
  • Storage temperature: -40°C to +80°C
  • Casing: 3mm ABS, 0.4mm HDPE in lens area
  • Colour: White, red LED
  • Dimensions: 117 x 69 x 50mm
  • Weight: 125g without bracket
  • EMC: EN 55022 Class B emissions; EN 50130-4 immunity
