Pyronix

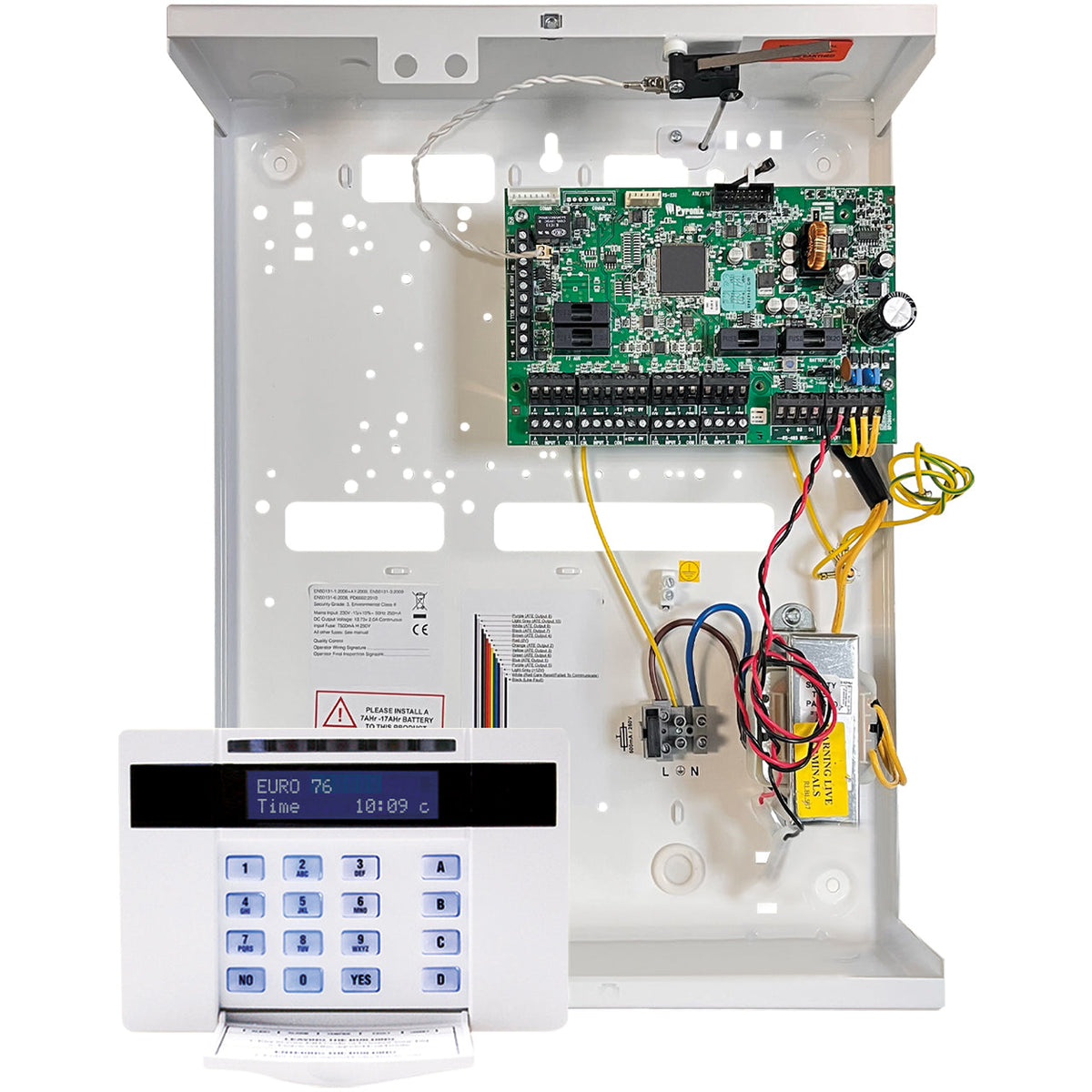

EURO76/L-UKPyronix Wired EURO76/L Large Hybrid Control Panel with Keypad, Grade 3
The Pyronix EURO76/L-UK is the EURO 76 hybrid control panel in the large metal enclosure, supplied with a keypad. Graded to EN 50131 Grade 3 in this case, it is aimed at commercial premises and larger homes that need a higher-grade intruder alarm, and it mixes hard-wired and wireless devices on one system with up to 76 inputs and six independent areas.
The board has eight wired inputs, and further wired or wireless zones are added with EURO-ZEM8 and EURO-ZEM32-WE expanders. The large case houses a 1.5A power supply with room for the standby battery, and the charger supports batteries from 3Ah to 17Ah. Plug-in modules add Wi-Fi, LAN, GPRS or PSTN signalling to an alarm receiving centre, with app control, push notifications and remote programming through InSite UDL software.
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
- Hybrid panel: 8 wired inputs on board, up to 76 inputs with wired and wireless expanders
- 6 independent areas and 5 wards
- 75 users plus up to 32 wireless keyfobs (with EURO-ZEM32-WE)
- Arm and disarm by code, proximity tag, keyfob or app
- Up to 6 wired keypads or proximity readers on the RS485 bus
- Supports DIGI-WIFI/XA, DIGI-LAN, DIGI-GPRS, DIGI-GSM, DIGI-1200 and DIGI-PSTN/VOICE modules
- Contact ID, Fast Format and SIA3 reporting, plus IP versions of each
- Push notifications, SMS and voice messages to users (with suitable modem)
- Remote or local programming with free InSite UDL software (RS232 or cloud)
- Model: EURO76/L-UK (EURO 76, large metal case)
- Inputs: 8 on board (N/C, SEOL, DEOL, 3EOL); 76 maximum
- Wireless inputs: Up to 64 with 2 x EURO-ZEM32-WE
- Areas: 6 independent areas, 5 wards
- Users: 75 users; 32 wireless keyfobs; 10 guard/duress codes
- Outputs: 5 on board (1 relay, 4 transistor) plus 10 ATE outputs; 85 maximum
- Event log: 1,250 events (EEPROM)
- Signalling formats: Contact ID, Fast Format, SIA3 and their IP variants
- Grade (EN 50131): Grade 3 (large metal case)
- Environmental class: Class II
- Mains supply: 230V AC, 50Hz
- Transformer: 45VA, 18.5V at 2.5A
- Power supply output: 13.7V DC nominal; 1.5A continuous, 2.0A peak while charging
- Battery charging: 13.8V float; 300mA (3–6Ah) or 700mA (7–17Ah) setting; recharge under 24 hours
- Bell and strobe outputs: 500mA each
- PGM 1: Relay, 3A at 30V max, changeover
- Panel current consumption: 80mA quiescent
- Dimensions: 390 x 305 x 100mm (large metal case)
- PCB dimensions: 110 x 170 x 40mm
