Pyronix

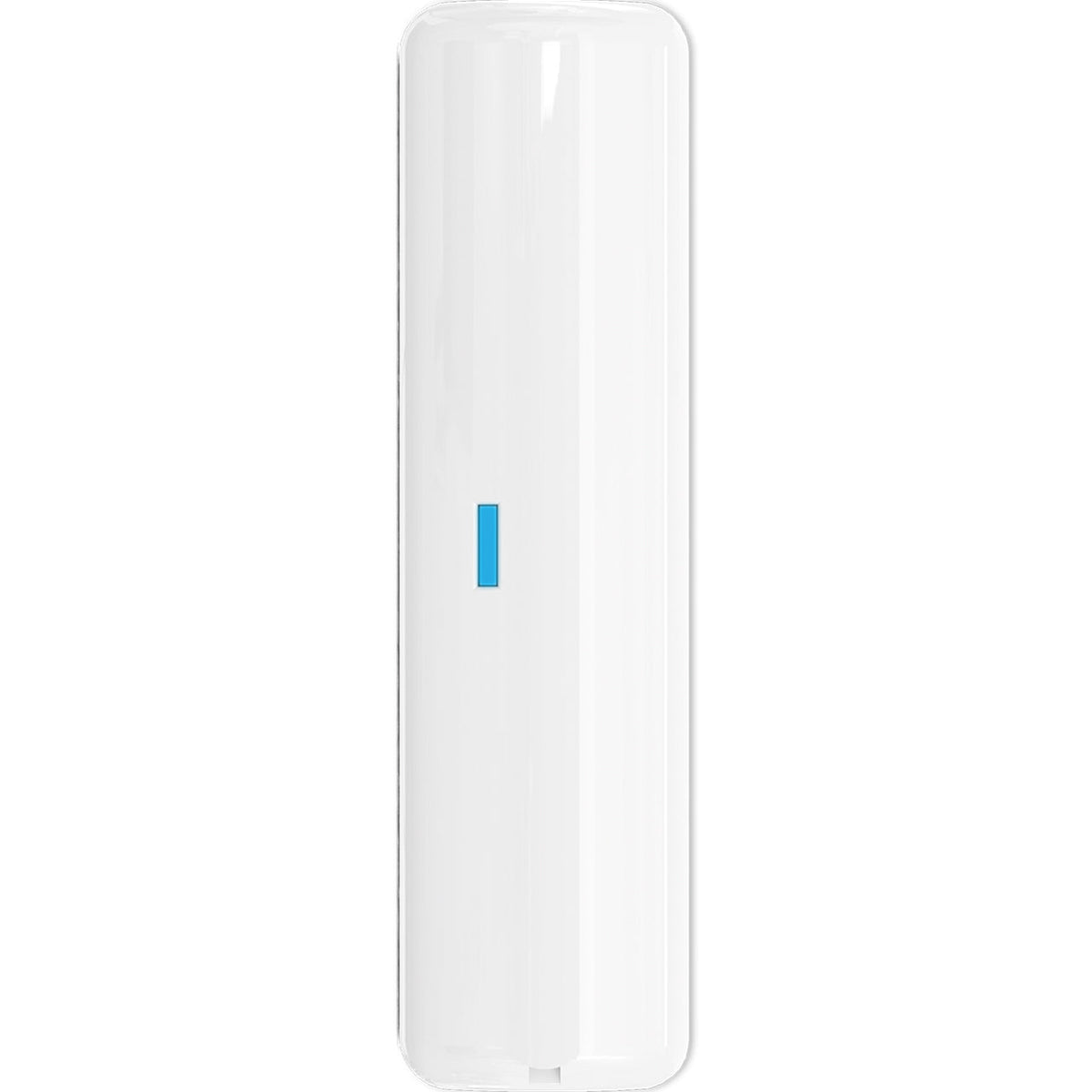

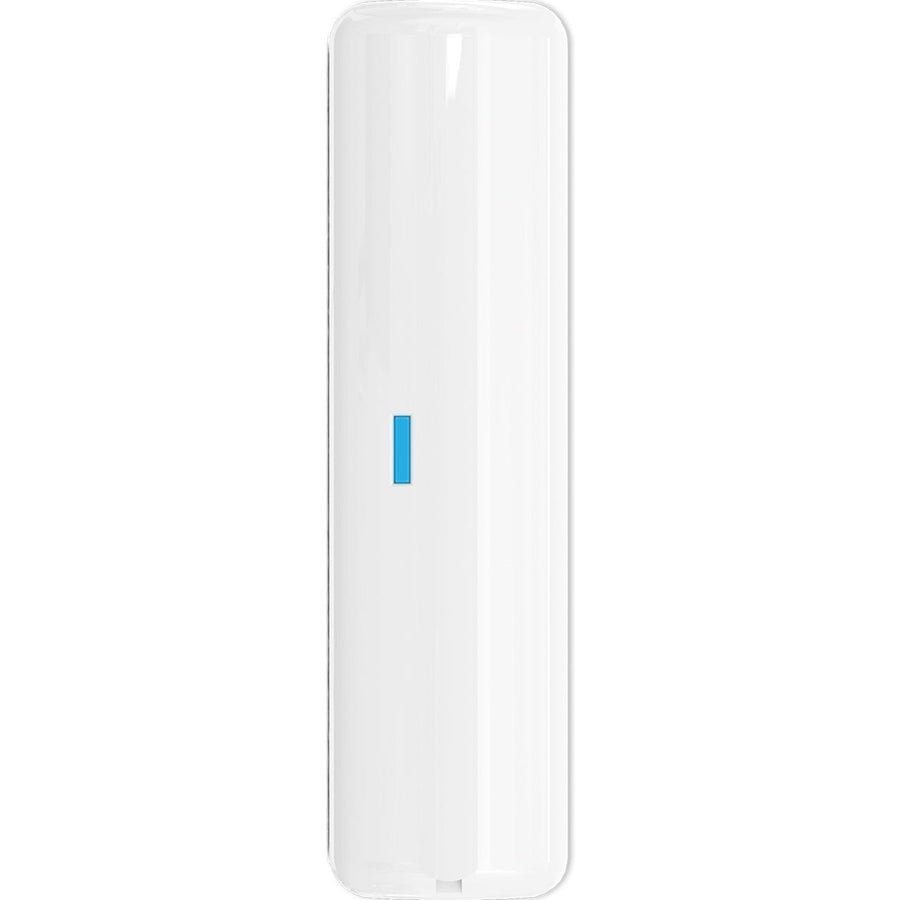

SHOCK/WPyronix Wired Shock
The Pyronix SHOCK/W is a hard-wired shock sensor that detects the vibration of an attack on walls, ceilings, door frames and window frames, raising the alarm before an intruder gets in. It suits perimeter protection on homes and commercial premises where a door contact alone is not enough. It is certified to EN 50131 Grade 2, Environmental class II, and wires to Pyronix or other wired control panels.
A piezoelectric sensor picks up vibration, and the installer sets high or low range, fine sensitivity and a pulse count of 1, 2, 4 or 6. A heavy blow above the set sensitivity is treated as a gross attack and triggers the alarm straight away. With no moving parts the sensor is not gravity dependent, so it can be fitted in any plane or orientation, and a latching LED shows which sensor triggered.
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
- Piezoelectric shock detection with adjustable sensitivity
- High or low sensitivity range set by jumper
- Selectable pulse count of 1, 2, 4 or 6
- Gross attack detection overrides the pulse count
- Latching LED option to show which sensor triggered
- No moving parts: can be installed in any plane or orientation
- Front and rear tamper switches
- Typical range 1.0m on concrete, 2.5m on wood or a fixed window frame
- Model: SHOCK/W
- Detection method: Piezoelectric sensor
- Sensitivity: High or low range, adjustable
- Pulse count: 1, 2, 4 or 6
- Typical detection range: 1.0m concrete; 2.5m wood; 2.5m fixed window frame
- Grade (EN 50131): Grade 2 (wire to its own panel input)
- Environmental class: Class II
- Certification: EN 50131-1:2006+A1:2009, EN 50130-4:2011+A1:2014
- Operating voltage: 9–15V DC
- Current consumption: Approx. 16mA quiescent, 30mA in alarm, at 12V DC
- Tamper: Front and rear, 50V DC at 50mA
- Operating temperature: -10°C to +40°C
- Storage temperature: -20°C to +50°C
- Casing: 2.5mm ABS plastic
- Colour: White, blue LED
- Dimensions: 107.5 x 29 x 21.5mm
- Weight: 38.8g
