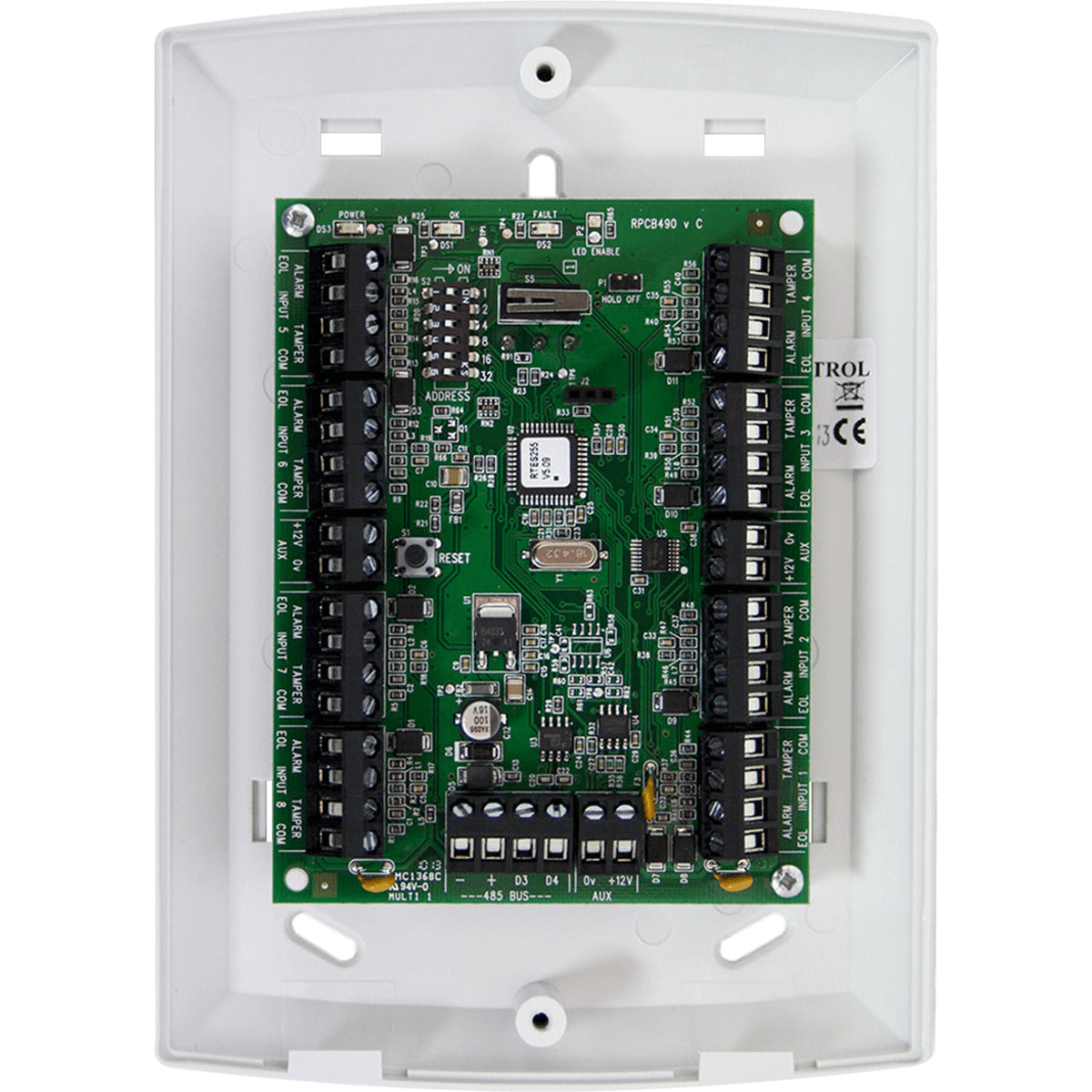

EURO-ZEM8Pyronix Wired ZEM8 Expander
The Pyronix EURO-ZEM8 is an 8-input wired zone expander for Pyronix EURO control panels, including the EURO 46 and EURO 76. It is for installers who have used the panel's eight on-board inputs and need to wire in more detectors, door contacts or other devices. The expander connects to the panel's RS485 data bus and is housed in its own white ABS box with front and rear tamper protection.
Each expander is given an address with the DIP switches on its board and is then added from the engineer menu. On a EURO 76, addresses 0 to 7 give inputs 9 to 72; on a EURO 46, up to four expanders give inputs 9 to 40. Inputs can be wired normally closed, double end-of-line or as Grade 3 mask/fault circuits. Where outputs or an on-board power supply are needed, Pyronix offers the EURO-ZEM8+ and EURO-ZEM8+PSU.
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
- Adds eight hard-wired detector inputs to a Pyronix EURO control panel
- Double-pole wiring supported by setting the 4K7/2K2 resistor range in the engineer menu
- Added to the system from the engineer menu using the 'INSTALL ZEM?' option
- Wired expanders and EURO-ZEM32-WE wireless expanders can share the same bus
- Bus runs longer than 1000 m need standard isolated RS485 repeaters
- EURO-ZEM8+ (adds 4 PGM outputs) and EURO-ZEM8+PSU (adds a built-in power supply) also available
- Model: EURO-ZEM8
- Type: Wired input (zone) expander
- Number of zones: 8 wired inputs
- Input wiring: Normally closed (NC), double end-of-line (DEOL), 3-resistor mask/fault (Grade 3)
- EOL resistor ranges: 1k/1k, 4k7/2k2 and 4k7/4k7
- Bus type: RS485 data bus (panel terminals D1, D2, D3, D4)
- Addressing: DIP switches on the expander
- Input voltage: 9–15 V DC
- Current consumption: 45 mA
- Security grade: Grade 3
- Dimensions (housing): 173 x 125 x 32 mm
- Dimensions (PCB): 128 x 87 x 16 mm
- Housing: White 3 mm ABS with clear polycarbonate window
- Indicators: Power, OK and Fault LEDs
- Tamper: Front and rear
- Operating temperature: −10 °C to +40 °C (certified); −10 °C to +50 °C (nominal)
- Storage temperature: −20 °C to +60 °C
- Compatibility: Pyronix EURO 46 (up to 4 expanders) and EURO 76 (up to 8 expanders)
- Input mapping (EURO 76): Addresses 0–7 give inputs 9–72
- Input mapping (EURO 46): Addresses 0–3 give inputs 9–40
