Texecom

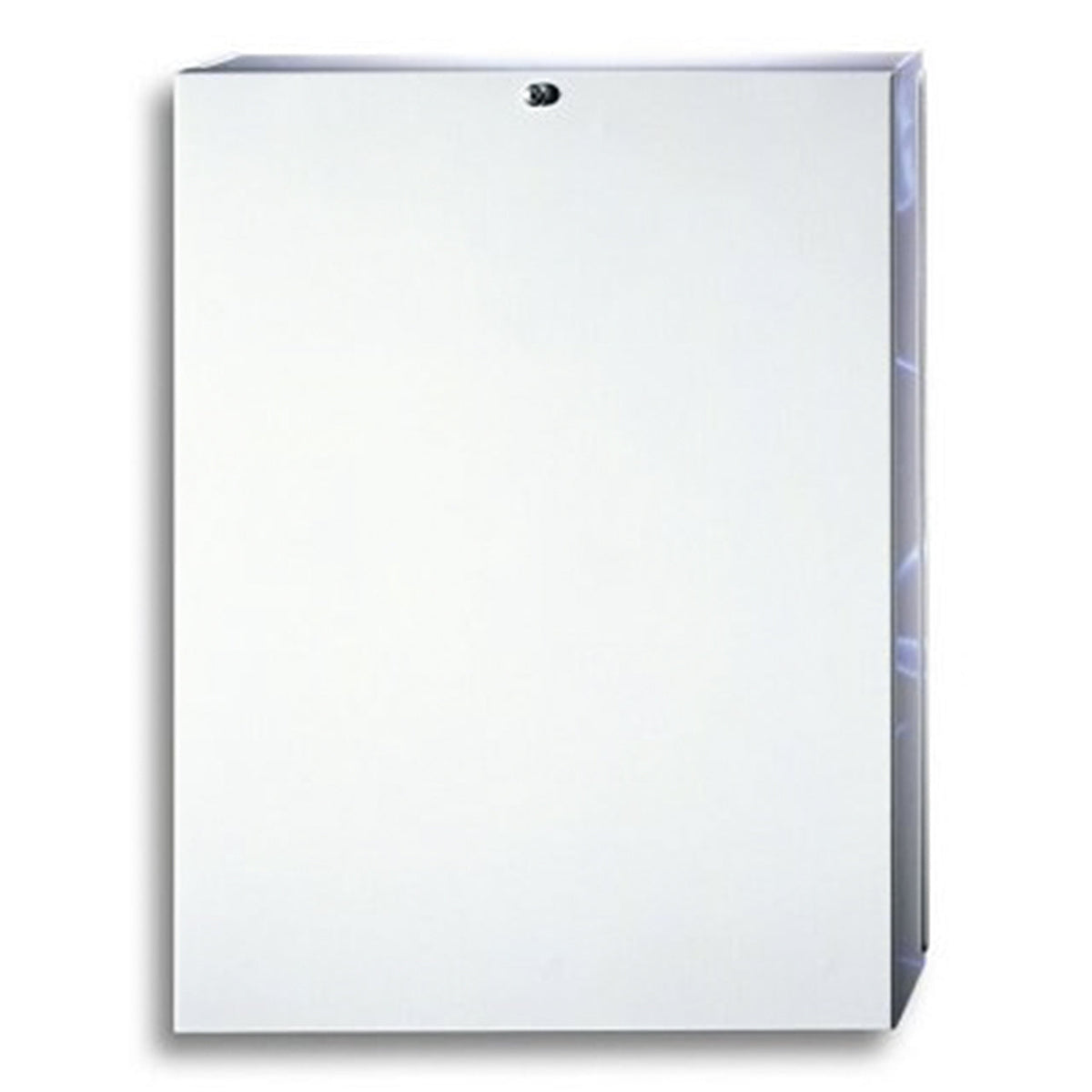

CCJ-0001Texecom Wired Premier Elite PSU200XP Expander, Grade 3
The Texecom Premier Elite PSU200XP is an intelligent 2.5 A switch mode power supply combined with a Premier Elite 8XP zone expander, in a metal housing. It is for installers who need extra 12 V power and extra zones at a remote point in a Premier or Premier Elite system, such as a far end of a building, an outbuilding or a cluster of powered detectors.
Because the 8XP expander connects to the panel network, the PSU is fully monitored by the control panel: mains failure, battery faults, output faults and tamper are reported over the network without separate wiring. Each standby battery is monitored on its own, with presence checks every 30 seconds, panel-controlled load testing and deep discharge protection. The housing takes two 7 Ah batteries or one 17/18 Ah battery.
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
- Energy efficient 2.5 A switch mode power supply with built-in Premier Elite 8XP expander
- Full monitoring and diagnostics from Premier Elite control panels over the network
- Independent monitoring of two standby batteries, with selectable charge current
- Battery load test controlled by the panel, with optional extra 500 mA or 1 A test load
- Front and back tamper protection
- Battery kick-start switch for powering up without mains
- CPNI approved variant available for UK Critical National Infrastructure
- Grade (EN 50131): PD 6662:2017, EN 50131-1, EN 50131-6 Grade 3, Class II
- Power supply type: Type A
- Mains supply: 100–240 V AC (+10%/−15%), 50 Hz, 1 A max
- Output voltage range: 10.7–13.9 V (±2%)
- Output current: 2.3 A range; 1.5–1.6 A maximum available depending on charge rate
- Battery: Sealed lead acid; 1 or 2 × 7 Ah, or 1 × 17 Ah / 18 Ah
- Battery charge current: 0.3 A or 0.75 A (selectable)
- Battery low voltage signal: 11.0 V (±5%)
- Deep discharge cut-off: 8.6 V (±5%)
- Over voltage protection: 16 V
- Current consumption: 115 mA
- Fuses: Mains 3 A or 3.15 A; 12 V output 1.6 A
- Operating temperature: −10 °C to +50 °C
- Maximum humidity: 95% non-condensing
- Dimensions: 310 × 410 × 100 mm
- Packed weight: 4.1 kg approx.
- Housing: Metal
- Compatibility: Premier and Premier Elite 24, 48, 88, 168 and 640 control panels
