Ajax

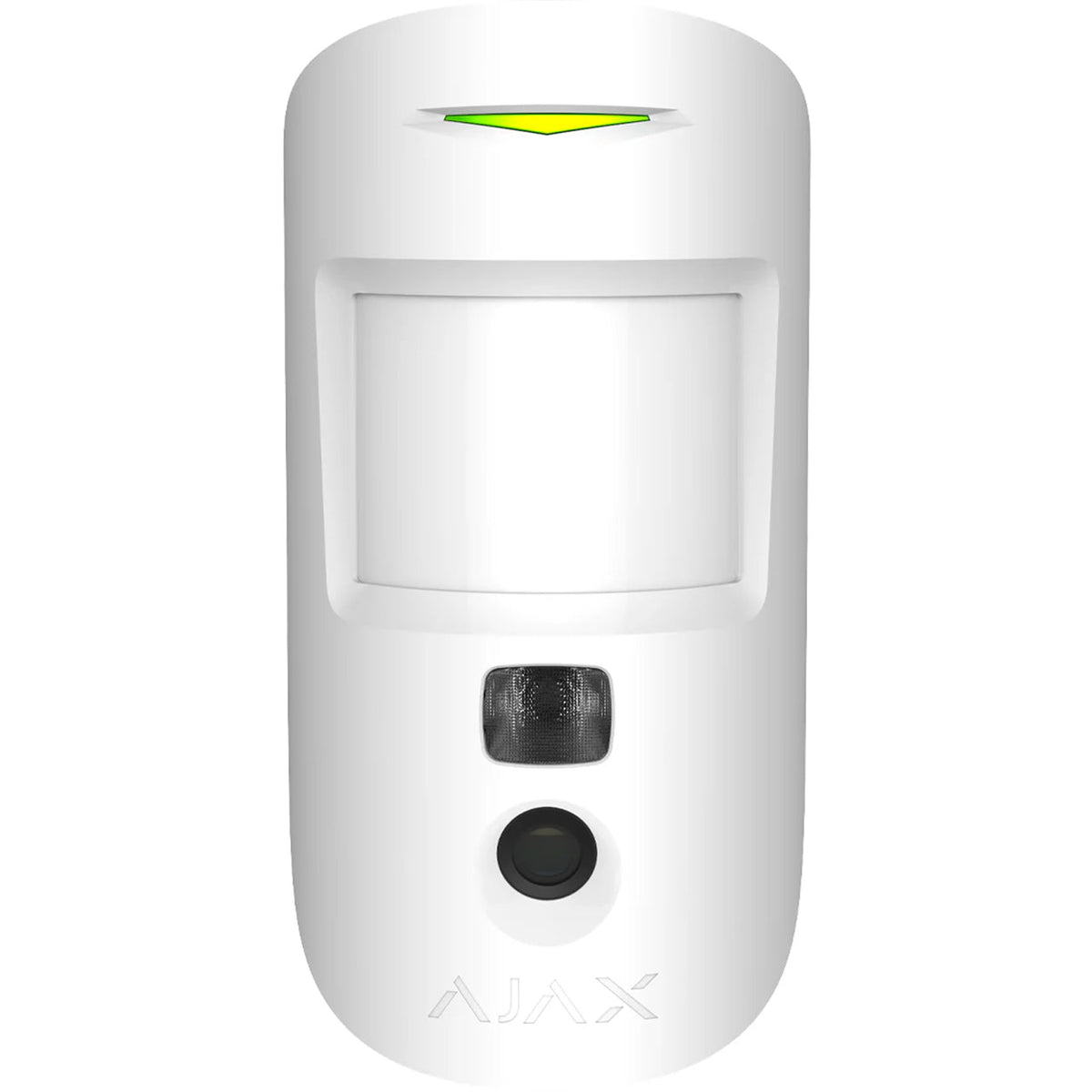

133214.120.WH1Ajax Superior MotionCam S (PhOD) Wireless PIR
The Ajax Superior MotionCam S (PhOD) is a wireless indoor PIR motion detector with a built-in camera, now listed by Ajax as Superior MotionCam (PhOD) Jeweller. It belongs to the Ajax Superior line, which is aimed at project work and sold, installed and administered by accredited Ajax partners. It suits homes and commercial sites where the monitoring centre or owner wants a picture before acting on an alarm.
When the armed detector sees movement it sends the alarm over Jeweller and then a series of photos over Wings, so the event can be checked in the Ajax app or by an alarm receiving centre. Photo on demand, Photo by scenario, Photo by schedule and Photo by arming/disarming can also be enabled. An IR backlight allows photos in the dark, and the detector ignores pets up to 20 kg when correctly installed.
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
- Photo verification of alarms: a series of 1–5 images per event, depending on resolution
- Photo on demand, by scenario, by schedule and on arming/disarming (disabled by default)
- IR backlight for photos at night and in low light
- SmartDetect software algorithm to reduce false alarms
- Digital temperature compensation for steady detection across the operating range
- Three sensitivity levels set remotely by a PRO in the Ajax app
- SmartBracket mounting panel with holding screw; tamper on removal from panel or wall
- Block encryption with dynamic key, frequency hopping and device authentication
- Grade (EN 50131): Grade 2
- Environmental class: Class II (indoor use only)
- Detector type: PIR sensor with built-in photo camera
- Radio protocols: Jeweller (alarms and events), Wings (photos)
- Radio frequency: 868.0–868.6 MHz, GFSK, up to 20 mW ERP
- Communication range: up to 1,700 m in open space
- Detection range: up to 12 m (10 m for INCERT, high sensitivity)
- Detection angle: 88.5° horizontal
- Recommended mounting height: 2.4 m
- Pet immunity: up to 20 kg and 50 cm tall
- Photo resolution: 160 × 120, 320 × 240 (default) or 640 × 480 px
- Photo delivery time: up to 7 s / 9 s / 20 s by resolution
- Battery: 2 × CR123A, pre-installed
- Battery life: up to 4 years (up to 3 years with Photo on demand enabled)
- Communication loss detection: after 36 s (default polling)
- Operating temperature: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50, IK04
- Dimensions: 135 × 70 × 60 mm
- Weight: 165 g (white), 149 g (black)
- Colour: White or black
- Compatibility: Ajax hubs with OS Malevich 2.16 or later; not Hub, Hub Plus or ReX
- Certification: EN 50131-2-2, EN 50131-5-3, PD 6662:2017, INCERT, NF&A2P 2 boucliers
