FAP-234G-EFortinet FortiAP 234G
List PriceFortiAP access points are managed centrally through the integrated WLAN controller built into any FortiGate security appliance, or via the FortiLAN Cloud provisioning and management portal. Because wireless control sits inside the FortiGate appliance itself, this suits campus and branch deployments where wired and wireless security are run from a single console as part of Fortinet's Security Fabric.

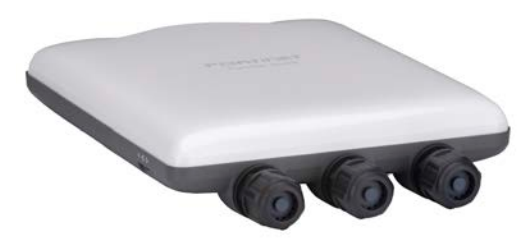

The FortiAP-234G is an IP67-rated, ruggedised outdoor Wi-Fi 6E access point with three radios and internal antennas, providing two spatial streams per radio. It supports the 6GHz band, OFDMA, a 2.5 Gigabit Ethernet port plus an additional 1 Gbps Ethernet port for PoE diversity, and can scan continuously across all bands while still serving clients on the remaining radios. An integrated Bluetooth Low Energy radio supports beacon and locationing applications.
FortiAPs support a range of installation topologies to fit any enterprise, from a single building with multiple floors to a campus of several large buildings, with wireless traffic protected by the same firewall, IPS, application control and web filtering engines used on the wired network.
Key features
- Tri-radio Wi-Fi 6E (802.11ax): 2.4GHz, 5GHz and 6GHz bands, 2x2:2 MIMO per radio
- IP67-rated outdoor housing with wall and pole mounting brackets included
- Up to 2,401 Mbps on the 6GHz radio, 1,201 Mbps on 5GHz, and 574 Mbps on 2.4GHz
- UL/DL MU-MIMO, OFDMA and Spatial Reuse (BSS Coloring) support
- Integrated Bluetooth Low Energy radio for beacon and locationing applications
- Up to 24 simultaneous SSIDs, up to 512 clients per radio
- 2.5 Gigabit Ethernet port plus a 1 Gbps Ethernet port for PoE diversity, powered by 802.3bt PoE
- Hit-less PoE failover between the two Ethernet ports
- Rogue Scan, WIPS/WIDS, packet sniffer and spectrum analyser modes built in
- Managed by an integrated FortiGate WLAN controller, FortiLAN Cloud, or a FortiSASE cloud-management subscription
Works with
- FortiGate firewalls — pair with a FortiGate for integrated WLAN controller management
- the Fortinet range
Frequently asked questions
How is the FortiAP-234G managed?
Centrally, through the integrated WLAN controller on a FortiGate security appliance or the FortiLAN Cloud provisioning portal, or via a FortiSASE cloud-management subscription for sites without an on-site controller — available in 1, 3 and 5 year terms in this listing.
What's the difference between FortiCare Premium and FortiCare Elite support?
Both are FortiCare support subscriptions for this AP, available in 1, 3 and 5 year terms below; FortiCare Elite is Fortinet's higher-tier option, priced above Premium at each term length.
How is the FortiAP-234G powered?
By 802.3bt PoE. A PIN060-54PR 60W PoE injector with reset switch is shipped with the AP.
Sizing a wireless deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Hardware Type | Outdoor AP |
|---|---|
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 10: 2x 2.4GHz Wi-Fi, 2x 5GHz-band Wi-Fi, 2x 5/6GHz dual-band, 2x tri-band scanning, 1x single-band 2.4GHz BLE/ZigBee, 1x GPS antenna |
| Antenna Type and Peak Gain | Cross-dipole 2.4GHz: 6.8 dBi. Cross-dipole 5.0GHz: 8.4 dBi. Cross-dipole dual band: 8.1 dBi (5.0GHz), 5.5 dBi (6GHz). Tri-band: 4.5 dBi (2.4GHz), 5.5 dBi (5GHz), 8.4 dBi (6GHz). BLE antenna: 4.4 dBi (2.4GHz). GPS circular polarised patch antenna: 5.0 dBi |
| Frequency Bands (GHz) | 2.4GHz band: 2.400–2.4835. 5.0GHz band: 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850. 6.0GHz band: 5.925–6.425, 6.425–6.525, 6.525–7, 5.925–6.875, 6.875–7.125 |
| Radio 1 Capabilities | 2.4GHz, 20/40MHz channel width, BPSK/QPSK/64/256/1024 QAM, 2x2 MIMO |
| Radio 2 Capabilities | 5.0GHz, 20/40/80/80+80MHz channel width, BPSK/QPSK/64/256/1024 QAM, 2x2 MIMO |
| Radio 3 Capabilities | 2.4GHz, 5.0GHz and 6.0GHz, 20/40/80/160MHz channel width, BPSK/QPSK/64/256/1024 QAM, 2x2 service and scanning |
| Maximum Data Rate | Radio 1: up to 574 Mbps. Radio 2: up to 1,201 Mbps. Radio 3: up to 2,401 Mbps |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power |
| Interfaces | 1x 100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, 1x RS-232 RJ45 serial port |
| MDI/MDIX | Supported |
| Power over Ethernet (PoE) | IEEE 802.3bt |
| Simultaneous SSIDs | Up to 24 |
| Maximum Tx Power | Radio 1 2.4GHz: 26 dBm/398 mW (2 chains combined). Radio 2 5GHz: 26 dBm/398 mW (2 chains combined). Radio 3 5GHz: 26 dBm/398 mW (2 chains combined); 6GHz: 26 dBm/398 mW (2 chains combined EIRP) |
Wireless features
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
|---|---|
| User/Device Authentication | WPA, WPA2 and WPA3 with 802.1x or preshared key, WEP, web captive portal, MAC blocklist and allowlist |
| SSIDs Supported | Local-Bridge, Tunnel, and Mesh |
| Per Radio Client Capacity | Up to 512 clients per radio |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, 802.11u, 802.11v, 802.11w, 802.11ac, 802.11ax, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz |
Advanced 802.11 features
| OFDMA | Yes |
|---|---|
| Spatial Reuse (BSS Coloring) | Yes |
| UL MU-MIMO | Yes |
| DL-MU-MIMO | Yes |
| Enhanced Target Wake Time (TWT) | Yes |
| ZeroWait DFS | No |
Wireless monitoring
| Rogue Scan radio modes | Background, Dedicated |
|---|---|
| WIPS / WIDS radio modes | Background, Dedicated (recommended) |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
Dimensions
| Length x Width x Height | 10.15 x 8.50 x 2.26 inches (258 x 216 x 57.3 mm) |
|---|---|
| Weight | 3.05 lbs (1.38 kg) |
| Package (shipping) Weight | 8.15 lbs (3.7 kg) |
| Mounting Options | Wall and pole installation |
| Included Accessories | Wall and pole installation brackets with mounting kits |
Environment
| Power Supply | PIN060-54PR 60W PoE injector with reset switch, shipped with the AP |
|---|---|
| Power Consumption (Maximum) | 28 W |
| Humidity | 5–90% non-condensing |
| Operating / Storage Temperature | -40°F to 140°F (-40°C to 60°C) / -58°F to 158°F (-50°C to 70°C) |
| Mean Time Between Failures | > 10 years |
| IP Rating | IP67 |
| Hit-less PoE Failover | Yes |
Warranty
| Limited Lifetime Warranty | Yes |
|---|
Product details
| Brand | Fortinet |
|---|---|
| Part number | FAP-234G-E |
