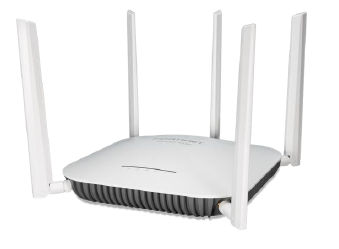

FC-10-F433F-247-02-12Fortinet FortiAP 433F
List PriceThis high-throughput, enterprise-class 802.11ax indoor AP carries three radios and eight spatial streams in total. It supports OFDMA, a 2.5 Gigabit Ethernet port and a second Gigabit Ethernet port for PoE diversity, and can scan continuously across both bands while still serving clients on 2.4 GHz and 5 GHz; the integrated BLE radio supports beacon and locationing use cases.
A unified management console simplifies operations, keeping policy enforcement and compliance consistent across the wireless estate.
Wireless LAN security from the leader in network security: an integrated firewall, IPS, application control and web filtering protect the wireless LAN from current threats, supporting PCI DSS compliance.
Key features
- 4x4 Wi-Fi 6 (802.11ax) indoor access point with three radios, external RP-SMA antennas
- Radio 1 up to 1,147 Mbps (2.4 GHz), Radio 2 up to 2,402 Mbps (5 GHz), Radio 3 dedicated to scanning
- 1x 2.5GE + 1x GE RJ45 ports for PoE diversity, plus USB-A and RS-232 serial
- 802.3at PoE by default; can run in a reduced-power 2x2 mode from a single 802.3af port (USB disabled)
- Up to 16 simultaneous SSIDs (14 with background scanning enabled)
- WPA3, WPA2, 802.1X, MAC allow/block lists and captive portal authentication
- Wi-Fi Alliance certified; Kensington lock point
- Managed via the integrated FortiGate WLAN controller, FortiAP Cloud, or as a FortiSASE cloud-managed AP
Works with
- FortiGate firewalls — pair with a FortiGate to manage the AP through its integrated WLAN controller
- the Fortinet range
Frequently asked questions
How is the FortiAP 433F managed?
It can be managed through the integrated WLAN controller of a FortiGate security appliance, the FortiAP Cloud portal, or as a FortiSASE cloud-managed access point.
What's the difference between FortiCare Premium and Elite support?
Both are annual FortiCare support subscriptions for this access point; Elite is priced above Premium as the higher tier, and both are offered here for a 1-year term.
What PoE does the 433F need?
802.3at PoE is the default; the AP draws up to 24.5 W and can also run from a single 802.3af port in a reduced-power 2x2 mode with USB disabled.
Sizing a wireless deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Hardware Type | Indoor AP |
|---|---|
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 5 External (RP-SMA) + 1 BLE Internal |
| Antenna Type and Peak Gain | Omni directional rubber duck antenna: 4 dBi for 2.4 GHz, 6 dBi for 5 GHz |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | Frequency Band: 2.4 GHz Channel width: 4x4 20/40 MHz Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 MIMO chains: 4x4 service |
| Radio 2 Capabilities | Frequency Band: 5.0 GHz Channel width: 4x4 20/40/80MHz and 2x2 160MHz contiguous Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 Mimo chains: 4x4 service |
| Radio 3 Capabilities | Frequency band: 2.4/5.0 GHz MIMO chains: 1x1 frequency scanning |
| Maximum Data Rate | Radio 1: up to 1147 Mbps Radio 2: up to 2402 Mbps Radio 3: scan only |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power |
| Interfaces | 1x 100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | 802.3at PoE default 1 port powered by 802.3at or 2 ports powered by 802.3af - Full System functionality + USB support 1 port is connected to 802.3af - No USB support, Operate in 2x2 mode with reduced power R1/R2 17dBm(Tx power) |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist |
| Maximum Tx Power (Conducted) | Radio 1: 2.4 GHz 24 dBm / 251 mW (4 chains combined)* Radio 2: 5 GHz 23 dBm / 200 mW (4 chains combined)* Radio 3: NA |
| Kensington Lock | Yes |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz |
| SSID Types Supported | Local-Bridge, Tunnel, and Mesh |
| Per Radio Client Capacity | 512 clients per radio (Radio1 and Radio2) |
| Cellular Co-existence | Yes |
| LED Off Mode | Yes |
| Reset Button | Yes |
Advanced 802.11 features
| OFDMA | Yes (UL and DL) |
|---|---|
| 2.4 GHz OFDMA | Yes |
| Spatial Reuse (BSS Coloring) | Yes |
| UL MU-MIMO 802.11ax mode | Yes |
| DL-MU-MIMO | Yes |
| HE-MU-MIMO | Yes |
| Enhanced Target Wake Time (TWT) | Yes |
| ZeroWait DFS/Agile DFS | No |
Wireless monitoring
| Rogue Scan radio modes | Background, Dedicated |
|---|---|
| WIPS / WIDS radio modes | Background, Dedicated (recommended) |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
Dimensions
| Length x Width x Height | 8.27 x 8.27 x 2.22 inches (210 x 210 x 56.5 mm) |
|---|---|
| Weight | 2.19 lbs (0.995 kg) |
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Mount kit for Ceiling, T-Rail and Wall. 5 RP-SMA Male dual-band dipole antenna |
Environment
| Power Supply | SP-FAP400-PA-XX or GPI-130 |
|---|---|
| Power Consumption (Maximum) | 24.5 W |
| Humidity | 5 - 90% non condensing |
| Operating / Storage Temperature | 32–113°F (0–45°C) / -31–-94°F (-35–70°C) |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | No |
| Mean Time Between Failures | > 10 Years |
| Surge Protection Built In | Yes |
| Hit-less PoE Failover | Yes |
Certifications
| WiFi Alliance Certified | Yes |
|---|---|
| DFS | FCC, IC, CE, Japan, Korea, Taiwan |
Warranty
| Limited Lifetime Warranty | Yes |
|---|
Product details
| Brand | Fortinet |
|---|---|
| Part number | FAP-433F-E |
