Fortinet
FAP-23JKFortinet FortiAP FAP-23JK
This model is quoted individually. Request a quotation below and we will confirm current pricing for the hardware and any FortiGuard bundle you need.

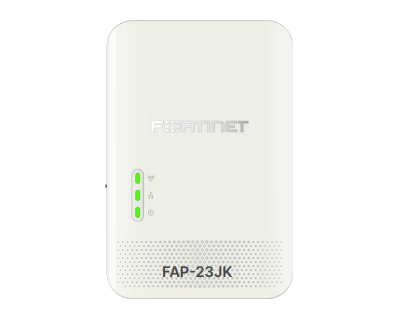

The Fortinet FAP-23JK is an enterprise-class Wi-Fi 7 indoor wall-plate access point with three radios and two spatial streams (2x2 MIMO). It supports the 6 GHz band — subject to regional regulatory approval — and is fitted with one 10 Gigabit Ethernet WAN port plus three 1 Gigabit Ethernet LAN ports, one of which supports PSE PoE output. The AP provides 24/7 background scanning across all bands while continuing to serve clients on 2.4 GHz, 5 GHz and 6 GHz. An integrated BLE/ZigBee radio supports beacon and location-based applications.
FortiAP access points are managed centrally by the integrated WLAN controller on any FortiGate security appliance, or through the FortiEdge Cloud provisioning and management portal. Combining the wireless controller with the FortiGate appliance suits campus and branch deployments, and brings wired and wireless security together under Fortinet's Security Fabric single-pane-of-glass management.
As a wall-plate form factor, the FAP-23JK is built for hotel rooms, dormitories and offices where a discreet in-room access point with pass-through Ethernet is needed.
Key features
- Tri-radio Wi-Fi 7 design — 2.4GHz, 5GHz and 6GHz, plus 24/7 background scanning, with 4 Wi-Fi antennas and 1 BLE/ZigBee antenna
- Up to 5.765 Gbps on the 6GHz band, 2.882 Gbps on 5GHz and 688 Mbps on 2.4GHz
- Wall-plate interfaces — 1x multi-gigabit WAN RJ45 (802.3bt PoE in), 3x 1G LAN RJ45 (one PSE PoE out), RJ-45 pass-through and an RS-232 serial port
- Up to 8 SSIDs per radio (7 with background scanning enabled)
- WPA, WPA2, WPA3 with 802.1X or PSK, WEP, captive portal and MAC filtering
- OFDMA, BSS Coloring, UL/DL MU-MIMO and Target Wake Time (TWT)
- Wireless monitoring — rogue scan, WIPS/WIDS, packet sniffer and spectrum analyzer
- Managed by FortiGate's integrated controller or FortiEdge Cloud
Works with
Frequently asked questions
How is the FAP-23JK managed?
Centrally, by the integrated WLAN controller built into any FortiGate security appliance, or through the FortiEdge Cloud provisioning and management portal — bringing wired and wireless management into a single console under Fortinet's Security Fabric.
Is hardware pricing available online?
Fortinet's FAP-23JK list pricing is confirmed at quotation. Contact us with your deployment size and we'll return a formal quote.
What power does the FAP-23JK need?
It draws 31W when receiving PoE in with PSE output active, 19W with PoE in and no PSE output, or 27.25W from a DC power supply.
Sizing a wireless deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Type | Indoor AP (wall plate) |
|---|---|
| Number of radios | 3 Wi-Fi + 1 BLE |
| Number of antennas | 5 (2x dual-band Wi-Fi, 2x 6GHz Wi-Fi, 1x BLE/ZigBee) |
| Antenna type and peak gain | 2.4GHz: 4.0 dBi · 5GHz: 4.4 dBi · 6GHz: 3.6 dBi · BLE: 3.7 dBi |
| Frequency bands | 2.4GHz: 2.4–2.484GHz · 5GHz: UNII-1 to UNII-4 · 6GHz: UNII-5 to UNII-8 |
| Maximum data rate | 2.4GHz: up to 688 Mbps · 5GHz: up to 2.882 Gbps · 6GHz: up to 5.765 Gbps |
| Interfaces | WAN1: 1x 100M/1000M/2.5G/5G/10G RJ45 (802.3bt PoE in). LAN: 3x 1G RJ45 (LAN3 supports PSE PoE out). RJ-45 pass-through (in/out). RS-232 RJ45 serial port |
| PoE | WAN1: 802.3bt PoE (input). LAN3: 802.3af PoE (PSE out) |
Wireless features
| SSID capacity | Up to 8 per radio (7 if background scanning enabled) |
|---|---|
| Authentication | WPA, WPA2, WPA3 with 802.1X or PSK, WEP, captive portal, MAC filtering |
| Per-radio client capacity | Up to 512 clients per radio |
| Advanced 802.11 features | OFDMA, BSS Coloring, UL/DL MU-MIMO, Target Wake Time (TWT) |
| Wireless monitoring | Rogue scan, WIPS/WIDS, packet sniffer, spectrum analyzer |
Environment
| Operating temperature | 32°F to 113°F (0°C to 45°C) |
|---|---|
| Storage temperature | -22°F to 158°F (-30°C to 70°C) |
| Humidity | 5% to 90% non-condensing |
| Power consumption | 31W (PoE in) · 19W (PoE in, no PSE out) · 27.25W (DC supply) |
Dimensions
| Size | 7.08 x 4.72 x 1.57 in (180 x 120 x 40 mm) |
|---|---|
| Weight | 1.15 lbs (0.52 kg) |
| Package weight | 1.85 lbs (0.84 kg) |
Warranty
| Fortinet warranty | Limited lifetime warranty |
|---|
Product details
| Brand | Fortinet |
|---|---|
| Part number | FAP-23JK |
