Fortinet

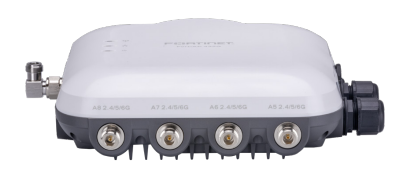

FAP-432GFortinet FortiAP FAP-432G
This model is quoted individually. Request a quotation below and we will confirm current pricing for the hardware and any FortiGuard bundle you need.
FortiAP access points are managed centrally through the integrated WLAN controller built into any FortiGate security appliance, or via the FortiEdge Cloud provisioning and management portal. Because wireless control sits inside the FortiGate appliance itself, this suits campus and branch deployments where wired and wireless security are run from a single console as part of Fortinet's Security Fabric.
The FortiAP FAP-432G is a ruggedised, enterprise-class Wi-Fi 6E indoor/outdoor access point with three radios for tri-band access, each radio capable of four spatial streams. It supports 6GHz band operation (subject to regional regulatory authority approval), OFDMA, a 10 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port with PoE output. An integrated Bluetooth Low Energy radio supports beacon and locationing applications.
Wireless traffic can be protected by the same firewall, IPS, application control and web filtering engines used on the wired network, giving consistent policy enforcement across a site and helping satisfy PCI DSS requirements for wireless.
Key features
- Tri-radio Wi-Fi 6E (802.11ax): 2.4GHz, 5GHz and 6GHz bands, 4x4 MIMO (6GHz subject to regional regulatory approval)
- 9 antennas total: 4x dual-band, 4x tri-band, plus 1x BLE/ZigBee antenna, and a GPS antenna
- Up to 4,804 Mbps on the 6GHz radio, 2,475 Mbps on 5GHz, and 1,182 Mbps on 2.4GHz
- OFDMA, BSS Coloring, UL/DL MU-MIMO, Target Wake Time (TWT) and ZeroWait DFS
- Up to 8 SSIDs per radio (7 with background scanning enabled), up to 512 clients per radio
- 10G/5G/2.5G/1G/100M RJ45 PoE-in port plus a 1G RJ45 PSE PoE-out port
- Rogue Scan, WIPS/WIDS, packet sniffer and spectrum analyser modes built in
- Ruggedised for outdoor use, rated -40°F to 140°F (-40°C to 60°C) operating range
- Managed by an integrated FortiGate WLAN controller or the FortiEdge Cloud portal
Works with
- FortiGate firewalls — pair with a FortiGate for integrated WLAN controller management
- the Fortinet range
Frequently asked questions
How is the FAP-432G managed?
Centrally, through the integrated WLAN controller on a FortiGate security appliance, or via the FortiEdge Cloud provisioning and management portal.
What's the difference between FortiCare Premium and FortiCare Elite support?
FortiCare Premium and FortiCare Elite are Fortinet's two support subscription tiers, available in 1, 3 and 5 year terms; Elite is the higher tier. Current pricing for the FAP-432G is confirmed on request.
How is the FAP-432G powered?
Via 802.3bt PoE input on the 10G/5G/2.5G/1G/100M LAN1 port; the 1G LAN2 port provides 802.3af PoE pass-through output. Maximum power consumption is 41.2W, including 12.9W of PSE output.
Sizing a wireless deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Type | Wi-Fi 6E 4x4 MIMO Outdoor AP |
|---|---|
| Number of Radios | 3 Wi-Fi + 1 BLE |
| Number of Antennas | 9 total (4x dual band, 4x tri-band, 1x BLE/ZigBee) |
| Antenna Type & Peak Gain | Dual band: 5.1 dBi (2.4GHz), 6.4 dBi (5GHz). Tri band: 4.9 dBi (2.4GHz), 5.8 dBi (5GHz), 6.0 dBi (6GHz). BLE: 4.7 dBi (2.4GHz). GPS: 3.0 dBi |
| Frequency Bands | 2.4–2.484GHz, 5.15–5.25GHz, 5.25–5.35GHz, 5.47–5.725GHz, 5.725–5.85GHz, 5.925–6.425GHz, 6.425–6.525GHz, 6.525–6.875GHz, 6.875–7.125GHz |
| Maximum Data Rate | Radio 1 (2.4GHz): up to 1,182 Mbps. Radio 2 (5GHz): up to 2,475 Mbps. Radio 3 (6GHz): up to 4,804 Mbps |
| Interfaces | 1x 10G/5G/2.5G/1G/100M RJ45 (PoE in), 1x 1G RJ45 (PSE out), 1x RS-232 RJ45 serial port |
| PoE | LAN1/10G: 802.3bt PoE input. LAN2/1G: 802.3af PoE PSE output |
Wireless features
| SSID Capacity | Up to 8 per radio (7 if background scanning enabled) |
|---|---|
| Authentication | WPA, WPA2, WPA3 with 802.1x or PSK, WEP, captive portal, MAC whitelist/blacklist |
| Per Radio Client Capacity | Up to 512 clients per radio |
| Advanced 802.11 Features | OFDMA, BSS Coloring, UL/DL MU-MIMO, Target Wake Time (TWT), ZeroWait DFS |
| Wireless Monitoring | Rogue Scan, WIPS/WIDS, packet sniffer, spectrum analyser |
Environment
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
|---|---|
| Storage Temperature | -58°F to 158°F (-50°C to 70°C) |
| Humidity | 5% to 90% non-condensing |
| Power Consumption | Max: 41.2W (incl. 12.9W PSE out). Full: 802.3bt PoE (4x4, full Tx, PSE enabled). High: 802.3at or 2x 802.3af (reduced Tx, PSE disabled) |
Dimensions
| Size (inches) | 9.45 x 9.45 x 2.74 |
|---|---|
| Size (mm) | 240 x 240 x 69.6 |
| Weight | 7.05 lbs (3.2 kg) |
| Package Weight | 13.2 lbs (6.0 kg) |
Warranty
| Fortinet Warranty | Limited Lifetime Warranty |
|---|
Product details
| Brand | Fortinet |
|---|---|
| Part number | FAP-432G |
