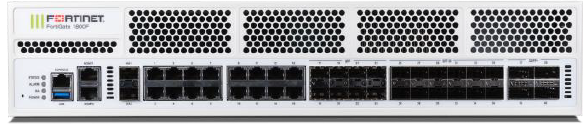

FG-1801F-DCFortinet FortiGate 1801F-DC
List PriceThe FortiGate 1801F-DC is the DC-powered version of Fortinet's 1801F next-generation firewall, built for large enterprises and service providers. Its high-speed interfaces and high port density suit the enterprise edge, hybrid and hyperscale data-centre core, and internal network segments, with industry-leading IPS, SSL inspection and advanced threat protection.
Hardware includes 4 x 40GE QSFP+ slots, 12 x 25GE SFP28 / 10GE SFP+ slots, 2 x 10GE SFP+ HA slots, 8 x GE SFP slots and 18 x GE RJ45 ports, plus 2 x 1TB onboard NVMe SSD storage for local logging. It runs on Fortinet's NP7 and CP9 security processing units for hardware-accelerated networking and security, powered by 2 x 800W DC power supplies for telecom and data-centre DC racks.
Rated performance includes 198 Gbps IPv4 firewall throughput, 55 Gbps IPsec VPN throughput and 11 Gbps SSL-VPN throughput, with up to 12 million concurrent sessions and 750,000 new sessions per second. It supports Active-Active, Active-Passive and Clustering high-availability configurations.
Key features
- 4 x 40GE QSFP+ slots, 12 x 25GE SFP28 / 10GE SFP+ slots, 8 x GE SFP slots, 18 x GE RJ45 ports (16 accelerated + 2 management)
- 2 x 1TB onboard NVMe SSD storage for local logging and analytics
- SPU NP7 and CP9 hardware acceleration for networking and security functions
- 2 x 800W DC power supplies — built for telecom / data-centre DC racks
- 198 Gbps firewall throughput, 13 Gbps IPS throughput, 9.1 Gbps threat protection throughput
- Up to 12 million concurrent sessions, 750,000 new sessions/second
- 55 Gbps IPsec VPN throughput, 11 Gbps SSL-VPN throughput
- High availability: Active-Active, Active-Passive, Clustering
Works with
Frequently asked questions
Hardware-only or a bundle?
Hardware-only is the FG-1801F-DC appliance on its own. The bundle options add FortiCare Premium support with either FortiGuard Unified Threat Protection (UTP) or FortiGuard Enterprise Protection, over a 1, 3 or 5 year term, so licensing and support are pre-agreed with the hardware.
What does the -DC in the name mean?
This model takes -48V to -60V DC power input (20A maximum) through its 2 x 800W DC power supplies, for telecom and data-centre racks running on a DC power plant. The standard FortiGate 1801F instead takes a 100–240VAC mains supply (7A@100VAC, 3A@240VAC).
Sizing and deployment guidance
Fortinet positions the 1800F/1801F series for the enterprise edge, hybrid/hyperscale data-centre core, and internal network segmentation. With 12 million concurrent sessions, 750,000 new sessions/second and support for Active-Active, Active-Passive and Clustering HA modes, it is built for high-throughput, high-availability deployments rather than branch or small-office use.
Sizing a FortiGate deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware Specifications
| Hardware Accelerated GE RJ45 Ports | 16 |
|---|---|
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 12 |
| Hardware Accelerated 40GE QSFP+ Slots | 4 |
| GE RJ45 Management Ports | 2 |
| 10 GE SFP+ / GE SFP HA Slots | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Onboard Storage | 2x 1TB NVMe SSD |
| Included Transceivers | 2x SFP+ (SR 10GE) |
System Performance — Enterprise Traffic Mix
| IPS Throughput | 13 Gbps |
|---|---|
| NGFW Throughput | 11 Gbps |
| Threat Protection Throughput | 9.1 Gbps |
System Performance and Capacity
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 198 / 197 / 140 Gbps |
|---|---|
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 198 / 197 / 140 Gbps |
| Firewall Latency (64 byte, UDP) | 3.22 μs |
| Firewall Throughput (Packet per Second) | 210 Mpps |
| Concurrent Sessions (TCP) | 12 Million |
| New Sessions/Second (TCP) | 750,000 |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| SSL-VPN Throughput | 11 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 17 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 9,500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 1.3 Million |
| Application Control Throughput (HTTP 64K) | 34 Gbps |
| CAPWAP Throughput (HTTP 64K) | 26.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 250 |
| Maximum Number of FortiSwitches Supported | 196 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 2,048 |
| Maximum Number of FortiTokens | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power
| Height x Width x Length (inches) | 3.5 x 17.25 x 21.1 |
|---|---|
| Height x Width x Length (mm) | 88.4 x 438 x 536 |
| Weight | 30.4 lbs (13.8 kg) |
| Form Factor | Rack Mount, 2RU (supports EIA/non-EIA standards) |
| DC Power Input | -48V to -60V DC |
| DC Maximum Current | 20A |
| Maximum Power Consumption | 558.8W |
| Average Power Consumption | 399.1W |
| Heat Dissipation | 1,906.70 BTU/hr |
| Redundant Power Supplies | Yes, Hot swappable |
Operating Environment & Certifications
| Operating Temperature | 32–104°F (0–40°C) |
|---|---|
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 62.74 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-1801F-DC |
