Fortinet

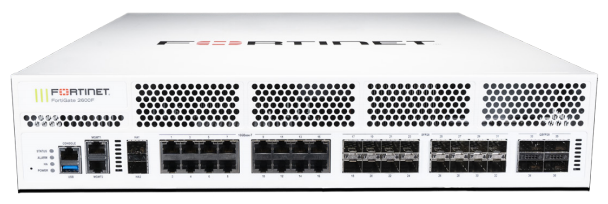

FG-2600F-DCFortinet FortiGate 2600F-DC
List PriceThe FortiGate 2600F-DC is the DC-powered version of Fortinet's 2600F-series next-generation firewall, delivering high-performance threat protection and SSL inspection for large enterprises and service providers. It can be deployed at the enterprise/cloud edge, the data-centre core, or across internal network segments.
Hardware includes 4 x 100GE/40GE QSFP28 slots, 16 x 25GE/10GE SFP28 slots, 8 x 10GE SFP+ slots, 16 x 10GE RJ45 ports, 2 x 10G SFP+ HA slots and 2 x 1G management ports, run on Fortinet's NP7 network processor (inline hardware acceleration of FortiOS functions) and CP9 content processor (accelerates inspection outside the direct traffic flow), powered by dual DC power supplies.
Rated performance includes 198 Gbps IPv4 firewall throughput, 24 Gbps IPS throughput, 19 Gbps NGFW throughput and 17 Gbps threat protection throughput, with up to 24 million concurrent sessions (40 million with the Hyperscale Firewall License) and 1 million new sessions/second (2 million with the Hyperscale Firewall License). It supports Active-Active, Active-Passive and Clustering high-availability configurations.
Key features
- 4 x 100GE/40GE QSFP28 slots, 16 x 25GE/10GE SFP28 slots, 8 x 10GE SFP+ slots, 16 x 10GE RJ45 ports
- 2 x 10G SFP+ HA slots, 2 x 1G management ports
- SPU NP7 and CP9 hardware acceleration for networking and security functions
- Dual DC power supplies, hot-swappable — built for telecom / data-centre DC racks
- 198 Gbps firewall throughput, 24 Gbps IPS throughput, 17 Gbps threat protection throughput
- Up to 24 million concurrent sessions (40 million with the Hyperscale Firewall License)
- 55 Gbps IPsec VPN throughput, 16 Gbps SSL-VPN throughput
- Up to 500 virtual domains (10 default)
- High availability: Active-Active, Active-Passive, Clustering
Works with
Frequently asked questions
Hardware-only or a bundle?
Hardware-only is the FG-2600F-DC appliance on its own. The bundle options add FortiCare Premium support with either FortiGuard Unified Threat Protection (UTP) or FortiGuard Enterprise Protection, over a 1, 3 or 5 year term, so licensing and support are pre-agreed with the hardware.
What does the -DC in the name mean?
This model is built for telecom and data-centre racks running on a DC power plant, taking DC power input through its dual power supplies instead of the 100–240VAC mains supply used by the standard FortiGate 2600F.
Sizing and deployment guidance
Fortinet positions the 2600F-DC for the enterprise/cloud edge, the data-centre core, or internal network segments. With up to 24 million concurrent sessions (40 million with the optional Hyperscale Firewall License) and support for Active-Active, Active-Passive and Clustering HA modes, it is built for high-throughput, high-availability deployments rather than branch or small-office use.
Sizing a FortiGate deployment? Call 0333 242 1314 or email sales@clisecure.com.
System Performance — Enterprise Traffic Mix
| Firewall | 198 Gbps |
|---|---|
| IPS | 24 Gbps |
| NGFW | 19 Gbps |
| Threat Protection | 17 Gbps |
Interfaces and Modules
| Hardware Accelerated 10 GE / GE RJ45 Ports | 16 |
|---|---|
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 |
| Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 |
| Hardware Accelerated 10 GE SFP+ / GE SFP HA Slots | 2 |
| GE RJ45 Management Ports | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Onboard Storage | – |
| Included Transceivers | 2x SFP+ (SR 10 GE) |
System Performance and Capacity
| IPS Throughput | 24 Gbps |
|---|---|
| NGFW Throughput | 19 Gbps |
| Threat Protection Throughput | 17 Gbps |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 198 / 196 / 120 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 198 / 196 / 120 Gbps |
| Firewall Latency (64 byte, UDP) | 3.41 μs |
| Firewall Throughput (Packet per Second) | 180 Mpps |
| Concurrent Sessions (TCP) | 24 Million / 40 Million* |
| New Sessions/Second (TCP) | 1 Million / 2 Million* |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| SSL-VPN Throughput | 16 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 20 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 16,000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 2.7 Million |
| Application Control Throughput (HTTP 64K) | 64 Gbps |
| CAPWAP Throughput (HTTP 64K) | 62.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 196 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 2,048 |
| Maximum Number of FortiTokens | 20,000 |
| Maximum Number of Registered FortiClients | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power
| Height x Width x Length (inches) | 3.5 x 17.25 x 21.1 |
|---|---|
| Height x Width x Length (mm) | 88.4 x 438 x 536 |
| Weight | 30.6 lbs (13.9 kg) |
| Form Factor | Rack Mount, 2 RU (supports EIA/non-EIA standards) |
| Power Consumption (Average / Maximum) | 416 W / 510 W |
| Current (Maximum) | 6A |
| Heat Dissipation | 1,740 BTU/h |
| Redundant Power Supplies | Yes, Hot Swappable |
Operating Environment and Certifications
| Operating Temperature | 32–104°F (0–40°C) |
|---|---|
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 71.72 dBA |
| Forced Airflow | Side and Front to Back |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-2600F-DC |
