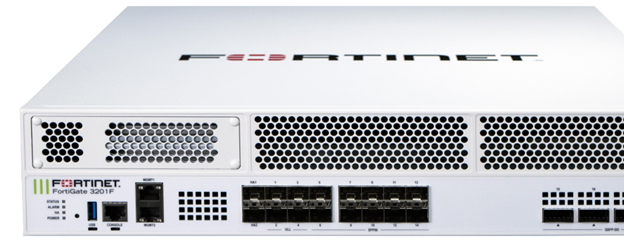

FG-3201F-BDL-950-12Fortinet FortiGate 3201F
List PriceThe FortiGate 3200F Series is built for security-driven networking across the datacentre and hybrid IT estate, protecting network edges at scale. Powered by Fortinet's AI/ML-based FortiGuard Services and an integrated Security Fabric platform, it delivers coordinated, automated threat protection across all deployment use cases.
Built-in Zero Trust Network Access (ZTNA) enforcement controls and verifies user access to applications directly within the NGFW, giving consistent, converged access control without additional overlay hardware.
A dedicated cryptographic module hardens the appliance itself, generating, storing and authenticating cryptographic keys in hardware to protect against malicious software and phishing attacks.
Key features
- SPU NP7 network processor and CP9 content processor hardware acceleration
- Zero Trust Network Access (ZTNA) enforcement built into the NGFW
- Trusted Platform Module (TPM) built in
- 2x 1TB onboard SSD storage
- Two AC power supplies, 1+1 redundancy, hot-swappable
- Up to 500 virtual domains (VDOMs)
- Supports up to 300 FortiSwitches and 4,096 FortiAPs
- 4x 400GE QSFP-DD/200GE QSFP56/100GE QSFP28 ports and 10x 50GE SFP56/25GE SFP28/10GE SFP+ slots
Works with
Frequently asked questions
Hardware-only or a bundle?
Hardware-only FG-3201F pricing is not part of this catalogue listing — every SKU we hold for this model bundles the appliance with 1, 3 or 5 years of FortiCare Premium support plus either FortiGuard Unified Threat Protection (UTP) or Enterprise Protection.
3201F vs 3200F — what's different?
The two share the same interfaces and performance figures in Fortinet's datasheet. The FG-3201F weighs 45.5 lbs (20.7 kg) and draws 527 W / 870 W (average/maximum); the FG-3200F weighs 43.9 lbs (20 kg) and draws 520 W / 865 W.
How do I size the right model?
Check the enterprise-mix throughput figures (63 Gbps IPS, 47 Gbps NGFW, 45 Gbps Threat Protection) against expected inspected traffic, and the capacity figures — 70 million concurrent TCP sessions and 200,000 firewall policies — against session counts and policy complexity.
Sizing a FortiGate deployment? Call 0333 242 1314 or email sales@clisecure.com.
Interfaces and Modules
| Hardware Accelerated 400 GE QSFP-DD / 200 GE QSFP56 / 100 GE QSFP28 / 40 GE QSFP+ Ports | 4 |
|---|---|
| Hardware Accelerated 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ Slots | 10 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP ULL Slots | 4 |
| Hardware Accelerated 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ HA1/HA2 Slots | 2 |
| 10GE / GE RJ45 Management Ports | 2 |
| USB 3.0 Ports | 1 |
| Console RJ45 Ports | 1 |
| Onboard Storage | 2x 1 TB SSD |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP+ (SR 10 GE) |
System Performance — Enterprise Traffic Mix
| IPS Throughput | 63 Gbps |
|---|---|
| NGFW Throughput | 47 Gbps |
| Threat Protection Throughput | 45 Gbps |
System Performance and Capacity
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP packets) | 387/385/178.5 Gbps |
|---|---|
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP packets) | 387/385/178.5 Gbps |
| Firewall Latency (64 byte, UDP) | 3.42 μs |
| Firewall Throughput (Packet per Second) | 267.75 Mpps |
| Concurrent Sessions (TCP) | 70 Million |
| New Sessions/Sec (TCP) | 800,000 |
| Firewall Policies | 200,000 |
| IPsec VPN Throughput (512 byte) | 105 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 |
| SSL-VPN Throughput | 11 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30,000 |
| SSL Inspection Throughput | 29 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 30,000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 7.4 Million |
| Application Control Throughput | 109 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiTokens | 20,000 |
| Maximum Number of Registered FortiClients | 20,000 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 4096 / 2048 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power
| Height x Width x Length (inches) | 3.5 x 17.44 x 23.9 |
|---|---|
| Height x Width x Length (mm) | 88.9 x 443 x 607.1 |
| Weight (maximum) | 45.5 lbs (20.7 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 2RU |
| AC Power Supply | 100–240VAC, 60/50 Hz |
| Power Consumption (Maximum / Average) | 527 W / 870 W |
| Current (Maximum) | 12A@100V, 9A@240V |
| Heat Dissipation (Maximum) | 2971 BTU/h |
| Redundant Power Supplies (Hot Swappable) | Yes (dual PSU, 1+1 redundancy) |
| Power Supply Efficiency Rating | 80Plus Compliant |
Operating Environment and Certifications
| Operating Temperature | 32–104°F (0–40°C) |
|---|---|
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 5–90% non-condensing |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-3201F |
Interfaces and Modules
| Hardware Accelerated 400 GE QSFP-DD / 200 GE QSFP56 / 100 GE QSFP28 / 40 GE QSFP+ Ports | 4 |
|---|---|
| Hardware Accelerated 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ Slots | 10 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP ULL Slots | 4 |
| Hardware Accelerated 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ HA1/HA2 Slots | 2 |
| 10GE / GE RJ45 Management Ports | 2 |
| USB 3.0 Ports | 1 |
| Console RJ45 Ports | 1 |
| Onboard Storage | 2x 1 TB SSD |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP+ (SR 10 GE) |
System Performance — Enterprise Traffic Mix
| IPS Throughput | 63 Gbps |
|---|---|
| NGFW Throughput | 47 Gbps |
| Threat Protection Throughput | 45 Gbps |
System Performance and Capacity
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP packets) | 387/385/178.5 Gbps |
|---|---|
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP packets) | 387/385/178.5 Gbps |
| Firewall Latency (64 byte, UDP) | 3.42 μs |
| Firewall Throughput (Packet per Second) | 267.75 Mpps |
| Concurrent Sessions (TCP) | 70 Million |
| New Sessions/Sec (TCP) | 800,000 |
| Firewall Policies | 200,000 |
| IPsec VPN Throughput (512 byte) | 105 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 |
| SSL-VPN Throughput | 11 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30,000 |
| SSL Inspection Throughput | 29 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 30,000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 7.4 Million |
| Application Control Throughput | 109 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiTokens | 20,000 |
| Maximum Number of Registered FortiClients | 20,000 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 4096 / 2048 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power
| Height x Width x Length (inches) | 3.5 x 17.44 x 23.9 |
|---|---|
| Height x Width x Length (mm) | 88.9 x 443 x 607.1 |
| Weight (maximum) | 45.5 lbs (20.7 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 2RU |
| AC Power Supply | 100–240VAC, 60/50 Hz |
| Power Consumption (Maximum / Average) | 527 W / 870 W |
| Current (Maximum) | 12A@100V, 9A@240V |
| Heat Dissipation (Maximum) | 2971 BTU/h |
| Redundant Power Supplies (Hot Swappable) | Yes (dual PSU, 1+1 redundancy) |
| Power Supply Efficiency Rating | 80Plus Compliant |
Operating Environment and Certifications
| Operating Temperature | 32–104°F (0–40°C) |
|---|---|
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 5–90% non-condensing |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-3201F |
