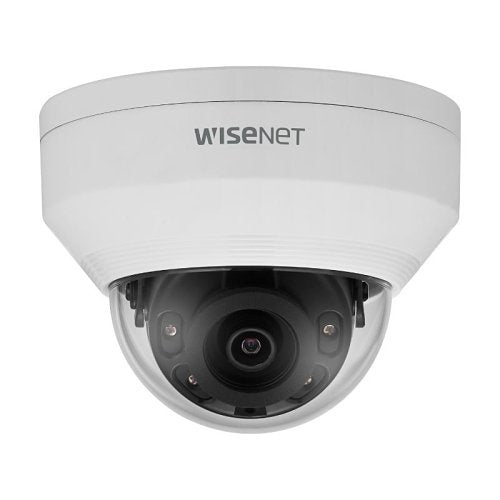

Hanwha ANV-L6012R 2MP IR Outdoor Vandal Dome Camera, 2.8mm Fixed Lens, 30m IR, IP66 IK10, White

Hanwha Vision ANV-L6012R/VEU

Hanwha ANV-L6012R 2MP IR Outdoor Vandal Dome Camera, 2.8mm Fixed Lens, 30m IR, IP66 IK10, White

Name: Hanwha ANV-L6012R 2MP IR Outdoor Vandal Dome Camera, 2.8mm Fixed Lens, 30m IR, IP66 IK10, White
Brand: Hanwha Vision

Exc VAT £127.00

Inc VAT £152.40

186In stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION2MP

LENS2.8mm

IR RANGE30.00m

PROTECTIONIP66

FORMDome

PLACEMENTOutdoor

The Hanwha ANV-L6012R 2MP IR Outdoor Vandal Dome Camera, 2.8mm Fixed Lens, 30m IR, IP66 IK10, White is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 2MP (1920 x 1080) video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.

The 2.8mm fixed lens gives a 113.7° horizontal field of view.

Infrared (IR) illumination reaches up to 30 m for night-time coverage.

It connects over Ethernet, encoding video as H.264, H.265, MJPEG.

It records locally to sd card.

The aluminum,plastic housing is rated IP66 and IK10 for outdoor use, and operates from -30°C to 55°C and mounts backbox, corner, flush, in-ceiling, parapet, pendant, pole or wall.

Key features

Whitecamerabody
Automatic White Balance
Back Light Compensation (BLC)
Built-in Mechanical ICR
Day/Night
Digital Noise Reduction
Gain Control
Motion Detection
Privacy Masking
SD Card Local Storage
Tamper Detection
Wide Dynamic Range

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Product Line: Wisenet
Product Series: A
Product Type: Network Camera
Part number: ANV-L6012R/VEU
Brand: Hanwha Vision

Technical Information

Connectivity Technology: Wired
Effective Camera Resolution: 2MP
Field of View: Diagonal, Horizontal, Vertical
Field of View (Horizontal): 113.7°
Field of View (Vertical): 61.50°
Lens Type: Fixed
Maximum Aperture: f/2
Maximum Frame Rate: 30fps
Minimum Focal Length: 2.80mm
Night Vision: Yes
Night Vision Type: Infrared (IR)
Video Formats: H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution: 1280 x 720
Wide Dynamic Range: Yes

Camera

Image Sensor Type: CMOS
Night Vision Distance: 30.00m

Certifications

Ingress Protection Rating: IP66
NDAA Compliant: Yes

Display & Graphics

Maximum Video Resolution: 1920 x 1080

Environmental Conditions

Maximum Operating Temperature: 55°C
Minimum Operating Temperature: -30°C
Operating Humidity: 95%

Exposure

Longest Shutter Speed: 2 Second
Minimum Illumination: 0.0000lux
Shortest Shutter Speed: 1/12000 Second

Interfaces/Ports

Network (RJ-45): Yes

Lens

Focal Length: 2.8mm
Lens Included: Yes
Maximum Focal Length: 2.80mm

Network & Communication

Remote Management: Yes

Physical Characteristics

Colour: White
Durability: Vandal Resistant
Form Factor: Dome
Height: 91.70mm
Weight: 410.00g

Product Information

Diameter: 120.00mm
Mount Type: Backbox Mount, Corner Mount, Flush Mount, In-ceiling Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount

Storage

Recording Formats: H.264, H.265 / HEVC
Storage Type: SD Card

Video

Maximum Resolution: 1280 x 720

Miscellaneous

Features: Automatic White Balance, Back Light Compensation (BLC), Built-in Mechanical ICR, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact Protection Rating: IK10
Indoor/Outdoor: Outdoor
