Hanwha Vision

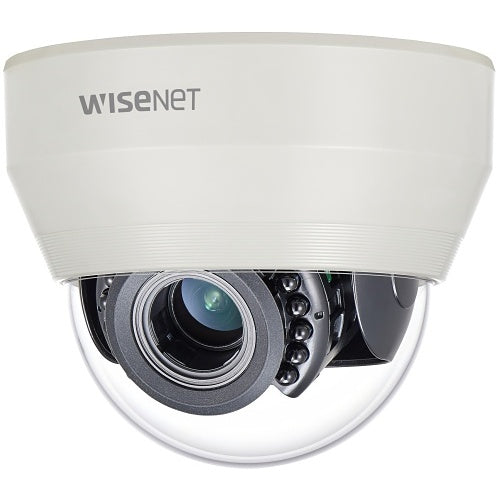

HCD-6070R/VEUHanwha HCD-6070R HD+ Series, 2MP Analog HD IR Indoor Dome Camera, 3.2-10mm Varifocal Lens, IR 20M, White
The Hanwha HCD-6070R HD+ Series, 2MP Analog HD IR Indoor Dome Camera, 3.2-10mm Varifocal Lens, IR 20M, White is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.
A CMOS sensor captures 2MP (1920 x 1080) video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.
The 3.2-10mm varifocal lens gives a 110.2° horizontal field of view and 3.0x optical zoom.
Active illumination, near-infrared illumination reaches up to 20 m for night-time coverage.
It runs from 12V DC.
It is rated IP66 and IK10 for indoor and outdoor use, and operates from -10°C to 55°C and mounts ceiling, junction box, pole or wall.
The Hanwha Vision HCD-6070R is a cost-effective analog camera offering high-definition video surveillance. It captures clear 1080p footage in most lighting conditions, with a decent low-light performance of 0.11 Lux. The camera features a varifocal lens that lets you adjust the viewing angle during installation for optimal coverage. This dome camera is user-friendly and boasts easy installation with plug-and-play functionality. It also offers dual power options for increased flexibility. While lacking the advanced features of newer network cameras, the HCD-6070R is a solid choice for basic security monitoring applications where affordability and ease of use are priorities.
Key features
- 0.11 Luxat F1.6 (Color), 0 Lux (B/W : IR LED on)
- Easy Installation (Plug & play), Dual power
- Automatic White Balance
- Back Light Compensation (BLC)
- Built-in IR LED
- Day/Night
- Defog
- Digital Noise Reduction
- Highlight Compensation (HLC)
- Motion Detection
- Privacy Masking
- Wide Dynamic Range
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
General
- Product Series: HD+
- Product Type: Dome Cameras
- Part number: HCD-6070R/VEU
- Brand: Hanwha Vision
Technical Information
- Connectivity Technology: Wired
- Effective Camera Resolution: 2MP
- Field of View: Diagonal, Horizontal, Vertical
- Field of View (Horizontal): 110.2°
- Field of View (Vertical): 55.40°
- Lens Type: Varifocal
- Maximum Aperture: f/1.6
- Maximum Frame Rate: 30fps
- Minimum Focal Length: 3.20mm
- Night Vision: Yes
- Night Vision Type: Active Illumination, Near-Infrared (NIR)
- Optical Zoom: 3.0x
- Video Resolution: 1280 x 720
- Video Signal Format: NTSC, PAL
- Wide Dynamic Range: Yes
Camera
- Image Sensor Type: CMOS
- Night Vision Distance: 20.00m
Certifications
- Ingress Protection Rating: IP66
- NDAA Compliant: Yes
Display & Graphics
- Maximum Video Resolution: 1920 x 1080
Environmental Conditions
- Maximum Operating Temperature: 55°C
- Minimum Operating Temperature: -10°C
- Operating Humidity: 90%
Exposure
- Longest Shutter Speed: 1 Second
- Minimum Illumination: 0.0000lux
- Shortest Shutter Speed: 1/12000 Second
Lens
- Focal Length: 3.2-10mm
- Lens Included: Yes
- Maximum Focal Length: 10.00mm
Network & Communication
- Remote Management: No
Physical Characteristics
- Colour: White
- Durability: Vandal Resistant, Weather Resistant
- Form Factor: Dome
- Height: 98.50mm
- Weight: 320.00g
- Width: 119.80mm
Power Description
- Input Voltage: 12V DC
- Power Source: DC Power
Product Information
- Diameter: 119.80mm
- Mount Type: Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount
Video
- Analog Video Signal Format: AHD, CVBS (Composite Video Baseband Signal)
- Maximum Resolution: 1280 x 720
Miscellaneous
- Features: Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range
- Impact Protection Rating: IK10
- Indoor/Outdoor: Indoor, Outdoor
