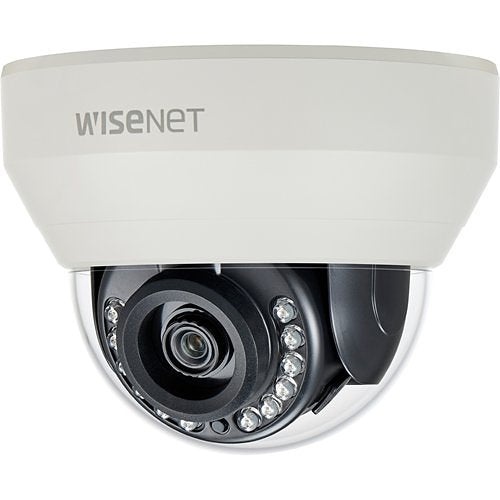

Hanwha HCD-7010RA HD Plus Series, DWDR 4MP 2.8mm Fixed Lens, IR 20M HDoC Dome Camera, White

Hanwha Vision HCD-7010RA/VEU

Hanwha HCD-7010RA HD Plus Series, DWDR 4MP 2.8mm Fixed Lens, IR 20M HDoC Dome Camera, White

Name: Hanwha HCD-7010RA HD Plus Series, DWDR 4MP 2.8mm Fixed Lens, IR 20M HDoC Dome Camera, White
Brand: Hanwha Vision

Exc VAT £106.00

Inc VAT £127.20

1Low stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION4MP

LENS2.8mm

IR RANGE20.00m

PROTECTIONIP67

FORMDome

POWER12V DC

The Hanwha HCD-7010RA HD Plus Series, DWDR 4MP 2.8mm Fixed Lens, IR 20M HDoC Dome Camera, White is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 4MP (2560 x 1440) video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.

The 2.8mm fixed lens gives a 107.5° horizontal field of view.

Active illumination, near-infrared illumination reaches up to 20 m for night-time coverage.

It outputs HD-TVI over coax, so it works with the recorders those formats use.

It runs from 12V DC.

It is rated IP67, and operates from -10°C to 55°C and mounts corner, junction box, panel, parapet, pendant, pole or wall.

Key features

0.26 Lux@F1.8 (Color),0 Lux (B/W : IR LED on)
Built-in 2.8mm fixed lens
Day & Night (ICR), DWDR, Motion detection
IR Viewable Length 20m
Transmission distance max.500m
Easy installation (Plug & play)
Auto Gain Control
Automatic White Balance
Back Light Compensation (BLC)
Day/Night
Digital Noise Reduction
Motion Detection

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Product Line: Wisenet
Product Series: HD+
Product Type: Dome Cameras
Part number: HCD-7010RA/VEU
Brand: Hanwha Vision

Technical Information

Connectivity Technology: Wired
Effective Camera Resolution: 4MP
Field of View: Diagonal, Horizontal, Vertical
Field of View (Horizontal): 107.5°
Lens Type: Fixed
Maximum Aperture: f/1.8
Maximum Frame Rate: 30fps
Minimum Focal Length: 2.80mm
Night Vision: Yes
Night Vision Type: Active Illumination, Near-Infrared (NIR)
Video Resolution: 1280 x 720
Video Signal Format: HD-TVI
Wide Dynamic Range: Yes

Camera

Image Sensor Type: CMOS
Night Vision Distance: 20.00m

Certifications

CE Marking: Yes
Ingress Protection Rating: IP67
NDAA Compliant: Yes

Display & Graphics

Maximum Video Resolution: 2560 x 1440

Environmental Conditions

Maximum Operating Temperature: 55°C
Minimum Operating Temperature: -10°C
Operating Humidity: 90%

Exposure

Longest Shutter Speed: 1/25s
Minimum Illumination: 0.0000lux
Shortest Shutter Speed: 1/12000 Second

Interfaces/Ports

Network (RJ-45): No

Lens

Focal Length: 2.8mm
Lens Included: Yes
Maximum Focal Length: 2.80mm
Minimum Aperture: f/1.8

Physical Characteristics

Colour: White
Durability: Dustproof, Waterproof
Form Factor: Dome
Height: 86.10mm

Power Description

Input Voltage: 12V DC
Power Source: DC Power

Product Information

Diameter: 110.10mm
Mount Type: Corner Mount, Junction Box Mount, Panel Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount

Video

Analog Video Signal Format: AHD, CVBS (Composite Video Baseband Signal)
Maximum Resolution: 1280 x 720

Miscellaneous

Features: Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Motion Detection, Motion Tracking
