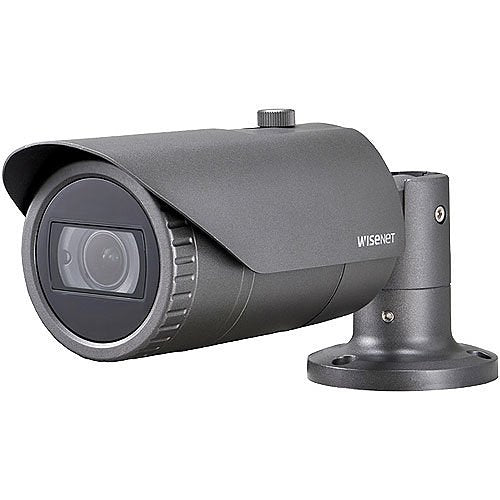

Hanwha HCO-6070R HD+ Series, 2MP Analog HD Bullet Camera, 3.2-10mm Varifocal Lens, IR 30M, IP66, Grey

Hanwha Vision HCO-6070R/VEU

Hanwha HCO-6070R HD+ Series, 2MP Analog HD Bullet Camera, 3.2-10mm Varifocal Lens, IR 30M, IP66, Grey

Name: Hanwha HCO-6070R HD+ Series, 2MP Analog HD Bullet Camera, 3.2-10mm Varifocal Lens, IR 30M, IP66, Grey
Brand: Hanwha Vision

Exc VAT £173.00

Inc VAT £207.60

79In stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION2MP

LENS3.2-10mm

IR RANGE30.00m

PROTECTIONIP66

FORMBullet

PLACEMENTOutdoor

The Hanwha HCO-6070R HD+ Series, 2MP Analog HD Bullet Camera, 3.2-10mm Varifocal Lens, IR 30M, IP66, Grey is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 2MP (1920 x 1080) video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.

The 3.2-10mm zoom lens offers 3.0x optical zoom.

Active illumination, near-infrared illumination reaches up to 30 m for night-time coverage.

It outputs AHD, CVBS, CVI, TVI over coax, so it works with the recorders those formats use.

It runs from 24V AC.

It is rated IP66 and IK10 for outdoor use, and operates from -22°F to 131°F and mounts panel.

Key features

Full HD resolution
0.11 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
3.2 ~ 10mm (3.1x) V/F lens
Day & Night (ICR), WDR (120dB)
SSNRⅣ, Motion detection
IR viewable length 30m, IP66, IK10
Transmission distance max.500m
Easy Installation (Plug & play), Dual power
Automatic White Balance
Back Light Compensation (BLC)
Built-in IR LED
Day/Night

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Product Series: HD+
Product Type: Bullet Cameras
Part number: HCO-6070R/VEU
Brand: Hanwha Vision

Technical Information

Connectivity Technology: Wired
Effective Camera Resolution: 2MP
Field of View: Diagonal, Horizontal, Vertical
Lens Type: Zoom
Maximum Aperture: f/1.6
Maximum Frame Rate: 30fps
Minimum Focal Length: 3.20mm
Night Vision: Yes
Night Vision Type: Active Illumination, Near-Infrared (NIR)
Optical Zoom: 3.0x
Video Resolution: 1280 x 720
Video Signal Format: AHD, CVBS (Composite), CVI, TVI
Wide Dynamic Range: Yes

Camera

Image Sensor Type: CMOS
Night Vision Distance: 30.00m

Certifications

Ingress Protection Rating: IP66
NDAA Compliant: Yes

Display & Graphics

Maximum Video Resolution: 1920 x 1080

Environmental Conditions

Maximum Operating Temperature: 131°F
Minimum Operating Temperature: -22°F
Operating Humidity: 90%

Exposure

Longest Shutter Speed: 1 Second
Minimum Illumination: 0.0000lux
Shortest Shutter Speed: 1/12000 Second

Lens

Focal Length: 3.2-10mm
Lens Included: Yes
Maximum Focal Length: 10.00mm

Network & Communication

Remote Management: No

Physical Characteristics

Colour: Silver
Durability: Vandal Resistant
Form Factor: Bullet
Height: 259.80mm
Weight: 914.00g

Power Description

Input Voltage: 24V AC

Product Information

Diameter: 78.00mm
Length: 259.80mm
Mount Type: Panel Mount

Video

Analog Video Signal Format: AHD, CVBS (Composite Video Baseband Signal)
Maximum Resolution: 1280 x 720

Miscellaneous

Features: Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Gain Control, Highlight Compensation (HLC), Ingress Protection, Motion Detection, Privacy Masking, Wide Dynamic Range
Impact Protection Rating: IK10
Indoor/Outdoor: Outdoor
