Hanwha Vision

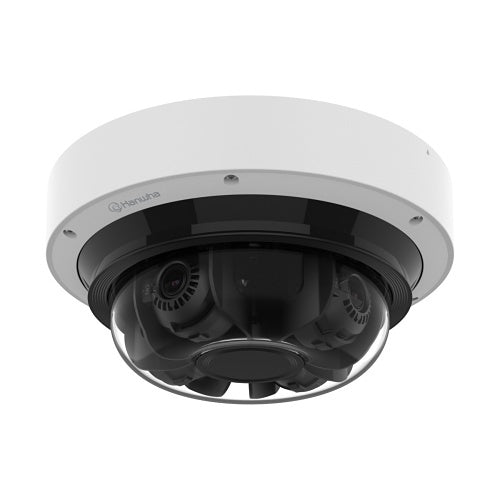

PNM-C16083RVQHanwha PNM-C16083RVQ 16MP 4MPx4-Channel AI IR Multi-Directional IP Camera, 3.3-5.7mm(1.7x) Motorized Varifocal Lens, Outdoor, White
The Hanwha PNM-C16083RVQ 16MP 4MPx4-Channel AI IR Multi-Directional IP Camera, 3.3-5.7mm(1.7x) Motorized Varifocal Lens, Outdoor, White is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.
A CMOS sensor captures 4MP (2592 x 1520) video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.
The 3.3-5.7mm varifocal lens gives a 100.0° horizontal field of view and 2.0x optical zoom.
Infrared (IR) illumination reaches up to 15 m for night-time coverage, and the minimum illumination is 0.0075 lux.
It connects over Ethernet and can take power over the same cable (PoE), encoding video as H.264, H.264 High Profile, H.264 Main Profile, H.265.
It records locally to sd card.
It is rated IP66 and IK10 for outdoor use, and operates from -40°C to 55°C and mounts conduit box, gang box or pendant.
The PNM-C16083RVQ is a unique, high-resolution multi-sensor multi-directional camera capable of providing 4MP on each of its' 4 sensors. Each sensor can be manually adjusted for pan along the track, tilt & rotation, along with motorized zoo
Key features
- 360° Analytics events based on AI engine: Classified object
- AI based loitering detection and line crossing detection
- AI based WiseNRⅡ, Auto prefer shutter control, Wise StreamⅢ
- Compact size & semi-modular design
- Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
- Reinforced durability (IP66, IK10, NEMA4X)
- Cross Line Detection
- Day/Night
- Face Detection
- Gain Control
- Human Detection
- Motion Detection
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
General
- Product Series: P
- Product Type: Network Camera
- Part number: PNM-C16083RVQ
- Brand: Hanwha Vision
Technical Information
- Connectivity Technology: Wired
- Effective Camera Resolution: 4MP
- Field of View: Diagonal, Horizontal, Vertical
- Field of View (Horizontal): 100.0°
- Field of View (Vertical): 54.00°
- Lens Type: Varifocal
- Maximum Aperture: f/1.5
- Maximum Frame Rate: 30fps
- Minimum Focal Length: 3.30mm
- Night Vision: Yes
- Night Vision Type: Infrared (IR)
- Optical Zoom: 2.0x
- Video Formats: H.264 / AVC, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 High Profile, H.265 Main Profile, MJPEG
- Video Resolution: 1280 x 720
- Wide Dynamic Range: Yes
Camera
- Image Sensor Type: CMOS
- Night Vision Distance: 15.00m
Certifications
- Ingress Protection Rating: IP66
- TAA Compliant: Yes
Display & Graphics
- Maximum Video Resolution: 2592 x 1520
- Number of Sensors: 4
Environmental Conditions
- Maximum Operating Temperature: 55°C
- Minimum Operating Temperature: -40°C
- Operating Humidity: 95%
Exposure
- Longest Shutter Speed: 2 Second
- Minimum Illumination: 0.0075lux
- Shortest Shutter Speed: 1/12000 Second
Interfaces/Ports
- Network (RJ-45): Yes
Lens
- Focal Length: 3.3-5.7mm
- Lens Included: Yes
- Maximum Focal Length: 5.70mm
- Minimum Aperture: f/1.9
Network & Communication
- Remote Management: Yes
Physical Characteristics
- Colour: White
- Durability: Dustproof, Impact Resistant, Waterproof
- Form Factor: Dome
- Height: 114.20mm
- Weight: 2.73kg
Product Information
- Diameter: 250.00mm
- Mount Type: Conduit Box Mount, Gang Box Mount, Pendant Mount
Storage
- Storage Type: SD Card
Video
- Maximum Resolution: 1280 x 720
Miscellaneous
- Features: Cross Line Detection, Day/Night, Face Detection, Gain Control, Human Detection, Motion Detection, Privacy Masking, Vehicle Detection, White Balance, Wide Dynamic Range
- Impact Protection Rating: IK10
- Indoor/Outdoor: Outdoor
