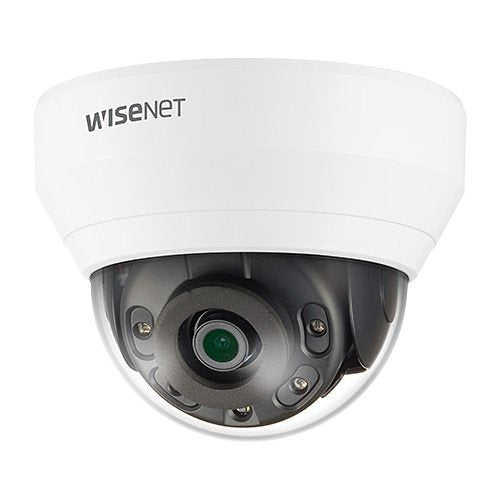

Hanwha QND-6012R1 Q Series, 2MP 2.8mm Fixed Lens, IR 20M IP Dome Camera, White

Hanwha Vision QND-6012R1/VEU

Hanwha QND-6012R1 Q Series, 2MP 2.8mm Fixed Lens, IR 20M IP Dome Camera, White

Name: Hanwha QND-6012R1 Q Series, 2MP 2.8mm Fixed Lens, IR 20M IP Dome Camera, White
Brand: Hanwha Vision

Exc VAT £175.00

Inc VAT £210.00

Out of stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION2MP

LENS2.8mm

IR RANGE20.00m

PROTECTIONIP66

FORMDome

PLACEMENTIndoor, Outdoor

The Hanwha QND-6012R1 Q Series, 2MP 2.8mm Fixed Lens, IR 20M IP Dome Camera, White is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 2MP (1920 x 1080) video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.

The 2.8mm fixed lens gives a 113.7° horizontal field of view.

Active illumination, near-infrared illumination reaches up to 20 m for night-time coverage.

It connects over Ethernet, encoding video as H.264, H.265, MJPEG.

It runs from 12V DC, and it records locally to sd card.

It is rated IP66 for indoor and outdoor use, and operates from -10°C to 55°C and mounts ceiling, corner, junction box, parapet, pole or wall.

Key features

Maximum 2 megapixel (1920 x 1080) resolution
0.03Lux (Color), 0Lux (B/W, IR LED on)
2.8mm fixed lens
Maximum 30 fps@2MP all resolutions (H.265/H.264)
H.265, H.264, MJPEG codec supported, Multiple streaming
Motion detection, Tampering, Defocus detection
Hallway view (90°/270°), LDC support
Micro SD/SDHC/SDXC memory slot (Max. 128GB)
IR viewable length 20m, PoE
No-audio model
Alarm Triggering
Automatic White Balance

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Product Series: Q
Product Type: Dome Cameras
Part number: QND-6012R1/VEU
Brand: Hanwha Vision

Technical Information

Connectivity Technology: Wired
Effective Camera Resolution: 2MP
Field of View: Diagonal, Horizontal, Vertical
Field of View (Horizontal): 113.7°
Field of View (Vertical): 61.50°
Lens Type: Fixed
Maximum Aperture: f/2
Maximum Frame Rate: 30fps
Minimum Focal Length: 2.80mm
Night Vision: Yes
Night Vision Type: Active Illumination, Near-Infrared (NIR)
Video Formats: H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution: 1280 x 720
Wide Dynamic Range: Yes

Camera

Image Sensor Type: CMOS
Night Vision Distance: 20.00m

Certifications

Ingress Protection Rating: IP66
NDAA Compliant: Yes
TAA Compliant: No

Display & Graphics

Maximum Video Resolution: 1920 x 1080

Environmental Conditions

Maximum Operating Temperature: 55°C
Minimum Operating Temperature: -10°C
Operating Humidity: 90%

Exposure

Longest Shutter Speed: 1/5 Second
Minimum Illumination: 0.0000lux
Shortest Shutter Speed: 1/12000 Second

Interfaces/Ports

Network (RJ-45): Yes

Lens

Focal Length: 2.8mm
Lens Included: Yes
Maximum Focal Length: 2.80mm

Network & Communication

Remote Management: Yes

Physical Characteristics

Colour: White
Durability: Dustproof, Waterproof
Form Factor: Dome
Height: 86.00mm
Weight: 255.00g

Power Description

Input Voltage: 12V DC

Product Information

Diameter: 110.00mm
Mount Type: Ceiling Mount, Corner Mount, Junction Box Mount, Parapet Mount, Pole Mount, Wall Mount

Storage

Recording Formats: H.264, H.265 / HEVC
Storage Type: SD Card

Video

Analog Video Signal Format: CVBS (Composite Video Baseband Signal)
Maximum Resolution: 1280 x 720

Miscellaneous

Features: Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor: Indoor, Outdoor
