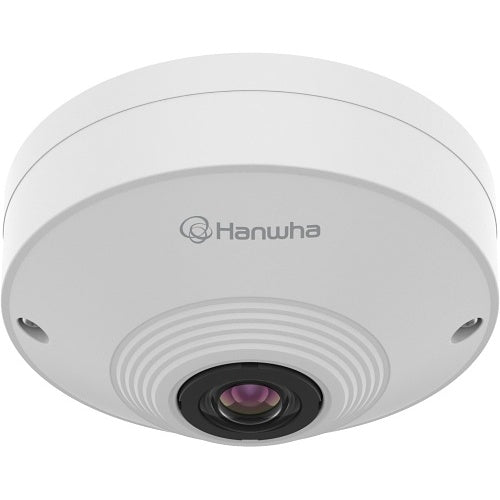

Hanwha QNF-8010 Q Series, 6MP WDR IP Fisheye Camera, 1.14mm Fixed Lens, IP42, White

Hanwha Vision QNF-8010/VEU

Hanwha QNF-8010 Q Series, 6MP WDR IP Fisheye Camera, 1.14mm Fixed Lens, IP42, White

Name: Hanwha QNF-8010 Q Series, 6MP WDR IP Fisheye Camera, 1.14mm Fixed Lens, IP42, White
Brand: Hanwha Vision

Exc VAT £405.00

Inc VAT £486.00

35In stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION6MP

LENS1.14mm

PROTECTIONIP42

FORMFisheye

PLACEMENTIndoor

SENSORCMOS

The Hanwha QNF-8010 Q Series, 6MP WDR IP Fisheye Camera, 1.14mm Fixed Lens, IP42, White is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 6MP video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.

The 1.14mm fixed lens gives a 187.0° horizontal field of view.

Active Illumination, Near-Infrared (NIR) illumination covers the scene at night, and the minimum illumination is 0.2000 lux.

It connects over Ethernet, encoding video as H.264, H.265, MJPEG.

It records locally to sd card.

The plastic housing is rated IP42 for indoor use, and operates from 14°F to 131°F and mounts corner, flush, in-ceiling, junction box, parapet, pendant, pole or wall.

Key features

Max.30 fps@2048x2048
WDR120dB,Wise StreamII
DigitalPTZ
Alarm Triggering
Auto Gain Control
Automatic White Balance
Back Light Compensation (BLC)
Digital Noise Reduction
Highlight Compensation (HLC)
Motion Detection
Privacy Masking
SD Card Local Storage

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Product Series: Q
Product Type: Panoramic Cameras
Part number: QNF-8010/VEU
Brand: Hanwha Vision

Technical Information

Connectivity Technology: Wired
Effective Camera Resolution: 6MP
Field of View: Diagonal, Horizontal, Vertical
Field of View (Horizontal): 187.0°
Field of View (Vertical): 187.00°
Lens Type: Fixed
Maximum Aperture: f/2.5
Maximum Frame Rate: 30fps
Minimum Focal Length: 1.14mm
Night Vision Type: Active Illumination, Near-Infrared (NIR)
Video Formats: H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution: 1280 x 720
Wide Dynamic Range: Yes

Camera

Image Sensor Type: CMOS

Certifications

Ingress Protection Rating: IP42
NDAA Compliant: Yes

Environmental Conditions

Maximum Operating Temperature: 131°F
Minimum Operating Temperature: 14°F
Operating Humidity: 90%

Exposure

Longest Shutter Speed: 2 Second
Minimum Illumination: 0.2000lux
Shortest Shutter Speed: 1/12000 Second

Interfaces/Ports

Network (RJ-45): Yes

Lens

Focal Length: 1.14mm
Lens Included: Yes
Maximum Focal Length: 1.14mm

Network & Communication

Remote Management: Yes

Physical Characteristics

Colour: White
Form Factor: Fisheye
Weight: 320.07g

Product Information

Diameter: 99.00mm
Mount Type: Corner Mount, Flush Mount, In-ceiling Mount, Junction Box Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount

Storage

Storage Type: SD Card

Video

Analog Video Signal Format: CVBS (Composite Video Baseband Signal)
Maximum Resolution: 1280 x 720

Miscellaneous

Features: Alarm Triggering, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Indoor/Outdoor: Indoor
