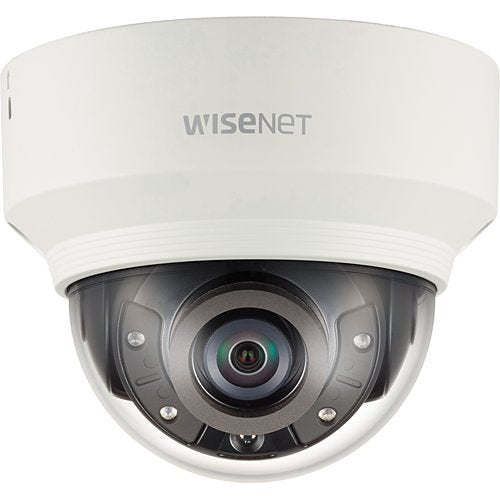

Hanwha XND-6020R X Series, 2MP WDR IP Dome Camera, 4mm Fixed Lens, IR 30M, White

Hanwha Vision XND-6020R/VEU

Hanwha XND-6020R X Series, 2MP WDR IP Dome Camera, 4mm Fixed Lens, IR 30M, White

Name: Hanwha XND-6020R X Series, 2MP WDR IP Dome Camera, 4mm Fixed Lens, IR 30M, White
Brand: Hanwha Vision

Exc VAT £310.00

Inc VAT £372.00

3Low stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION2MP

LENS4mm

IR RANGE30.00m

PROTECTIONIP66, IP67

FORMDome

PLACEMENTIndoor

The Hanwha XND-6020R X Series, 2MP WDR IP Dome Camera, 4mm Fixed Lens, IR 30M, White is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 2MP (1920 x 1080) video at up to 60fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.

The 4mm fixed lens gives a 88.6° horizontal field of view.

Infrared (IR) illumination reaches up to 30 m for night-time coverage.

It connects over Ethernet, encoding video as H.264, H.265, MJPEG, MPEG-4 Visual.

It runs from 12V DC, and it records locally to sd card.

The aluminum housing is rated IP66, IP67 and IK08 for indoor use, and operates from -10°C to 55°C and mounts corner, parapet, pole or wall.

Key features

Handover,Wise StreamIIsupport

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Product Line: Wisenet
Product Series: X
Product Type: Dome Cameras
Part number: XND-6020R/VEU
Brand: Hanwha Vision

Technical Information

Connectivity Technology: Wired
Effective Camera Resolution: 2MP
Field of View: Diagonal, Horizontal, Vertical
Field of View (Horizontal): 88.6°
Field of View (Vertical): 47.50°
Lens Type: Fixed
Maximum Aperture: f/1.4
Maximum Frame Rate: 60fps
Minimum Focal Length: 4.00mm
Night Vision: Yes
Night Vision Type: Infrared (IR)
Video Formats: H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Video Resolution: 1280 x 720
Wide Dynamic Range: Yes

Camera

Image Sensor Type: CMOS
Night Vision Distance: 30.00m

Certifications

Ingress Protection Rating: IP66, IP67
NDAA Compliant: Yes

Display & Graphics

Maximum Illumination: 0.015lux
Maximum Video Resolution: 1920 x 1080

Environmental Conditions

Maximum Operating Temperature: 55°C
Minimum Operating Temperature: -10°C
Operating Humidity: 90%

Exposure

Longest Shutter Speed: 1/12000 Second
Minimum Illumination: 0.0000lux
Shortest Shutter Speed: 2 Second

Interfaces/Ports

Network (RJ-45): Yes

Lens

Focal Length: 4mm
Lens Included: Yes
Maximum Focal Length: 4.00mm

Network & Communication

Remote Management: Yes

Physical Characteristics

Colour: White
Durability: Dustproof, Impact Resistant, Waterproof
Form Factor: Dome
Height: 90.00mm
Weight: 380.00g
Width: 110.00mm

Power Description

Input Voltage: 12V DC

Product Information

Diameter: 110.00mm
Mount Type: Corner Mount, Parapet Mount, Pole Mount, Wall Mount

Storage

Recording Formats: H.264, H.265 / HEVC
Storage Type: SD Card

Video

Analog Video Signal Format: CVBS (Composite Video Baseband Signal)
Maximum Resolution: 1280 x 720

Miscellaneous

Impact Protection Rating: IK08
Indoor/Outdoor: Indoor
