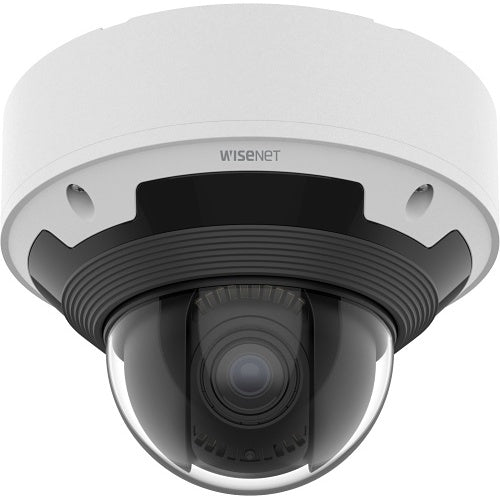

Hanwha XNV-6083Z X Series, IP66-IP67 2MP 2.8-12mm Motorized Varifocal Lens, AI Vandal IP Dome Camera, White

General

• Part number: XNV-6083Z/VEX
• Brand: Hanwha Vision

Datasheet

• Video:
• ImagingDevice: Size, 1/2.8"
• Type: CMOS
• Resolution: 1920x1080,1280x1024,1280x960,1280x720,1024x768,800x600,800x448,720x576,
• Max.Framerate: H.265/H.264, 120 fps/100 fps(60Hz/50Hz)(WDRoff)/60 fps/50 fps(60Hz/50Hz)(WDRon)
• MJPEG: 30 fps
• Min.Illumination(Lux): Color(1/30 sec,30IRE), 0.01
• BW(1/30 sec,30IRE): 0.001
• Lens:
• FocalLength(mm): 2.8~12
• ZoomRatio: Optical, 4.3x
• MaxApertureRatio(F: Wide, 1.4
• Tele: 3.6
• AngularFieldofView: Horizontal, 120°~27°
• Vertical: 63°~15°
• Diagonal: 143°~32°
• Min.ObjectDistance: 0.5m(1.64ft)
• FocusControl: Simplefocus,Manual
• LensType: DCautoiriswithhallsensor(IRcorrected)
• Pan/Tilt/Rotate:
• Pan/Tilt/RotateRange: Pan, 0°~350°
• Tilt: 0°~85°
• Rotate: 0°~340°
• Others: Remoteadjustment(Max.200 cycles)
• Operational:
• Day&Night: Auto(ICR)
• BacklightCompensation: BLC,HLC,WDR,SSDR
• WideDynamicRange(dB): 150
• DigitalNoiseReduction: WiseNRⅡ(BasedonAIengine),SSNRⅤ
• DigitalImageStabilization: Support
• Defog: Support
• MotionDetection: Quantity, 8ea
• Shape: 8 pointPolygonalzones
• PrivacyMasking: Quantity, 32ea
• Color/Option: Gray,Green,Red,Blue,Black,White,Mosaic
• GainControl: Off,Maxgain,Manual
• WhiteBalance: ATW,NarrowATW,AWC,Manual,Indoor,Outdoor
• LDC: Support(Fill/stretchmode)
• ElectronicShutter: Mode, Minimum,Maximum,Antiflicker,Prefershuttercontrol(BasedonAIengine)
• SpeedRange: 2~1/12,000 sec
• VideoRotation: Flip,Mirror,Hallwayview(90°/270°)
• AlarmTriggers: Analytics,Networkdisconnect,Alarminput,Appevent,Timeschedule,MQTT
• AlarmEventsWhenAlarmTriggerOccurred: Fileupload(image):e-mail/FTP/SFTP,
• Analytics:
• ClassifiedObjectType: Person,Face,Vehicle,Licenseplate
• Attributes: Vehicle, Type(car,bus,truck,motorcycle,bicycle)
• Thumbnail: Detection Shot
• AnalyticsEvents: BasedonAIEngine, Objectdetection,Virtualline(Crossing/Direction),Virtual
• Normal: Defocusdetection,Tampering,Fogdetection,Audiodetection,Soundclassification,
• BusinessIntelligence: BasedonAIEngine, Peoplecounting,Vehiclecounting
• Network:
• Ethernet: MetalshieldedRJ-45(10/100/1000BASE-T)
• VideoCompression: H.265/H.264:Main/Baseline/High,MJPEG
• SmartCodec: Manual,Wise StreamⅢ
• BitrateControl: H.265/H.264:CBRorVBR,
• Streaming: Unicast, Upto20users
• Multicast: Support
• MultipleStreaming: Upto10profiles
• Protocol: IPv4,IPv6,TCP/IP,UDP/IP,RTP(UDP),RTP(TCP),RTCP,RTSP,NTP,HTTP,HTTPS,
• Application: ONVIF, S,G,T,M
• Security:
• OS/FirmwareProtect: Encryptedfirmware,Secureboot,Signedfirmware
• Userauthentication: Digestauthentication,Preventbrute-forceattack
• Networkauthentication: IEEE802.1X(EAP-TLS,EAP-LEAP,EAP-PEAP,MSCHAPv2)
• SecureCommunication: HTTPS,WSS(Web SocketSecure),SRTP
• AccessControl: IP-basedaccesscontrol
• DataProtect: Encryptioncredentials,Encryptcompressforliverecordingfileexport
• Audit: Access/System/EventLogmanagement
• DeviceID: Devicecertificate(HanwhaVisionRootCA)
• SecureStorage: TPM(Trustedplatformmodule),HTPM(HanwhaTrustedPlatformModule),SDcard
• SecurityCertificate: TPM2.0withFIPS140-2level2
• General:
• Memory: RAM, 2GB
• Flash: 512MB
• EdgeStorage: MicroSD/SDHC/SDXC, Max.512GBx2 slot(Total1TB)
• EdgeStorage(On Cloud): MicroSD/SDHC/SDXC, Max.1TBx2 slots(Total2TB)*HanwhaVisionbrandedmicroSDcardshavebeen
• Environmental&Electrical:
• OperatingCondition: Temperature, -50°C~+55°C(-58°F~+131°F)
• Humidity: 0~100%RH(condensing)
• StorageCondition: Temperature, -50°C~+60°C(-58°F~+140°F)
• InputVoltage: PoE+(IEEE802.3at,Class4)
• PowerConsumption: PoE, Max22.5W,typical11.0W
• Mechanical:
• Color: White
• Material: Aluminum,Hard-coateddome
• RALCode: RAL9003
• ProductDimensions: ø180x135mm(ø7.09x5.31")
• ProductWeight: 2000g(4.41lb)
• CompatibleConduitHole: 19.1mm(3/4")(M25)
• CompatibleGangBox: Single,Double,4"Octagon,Square
• Certifications&Standards:
• EMC: EN50121-4,FCC47CFR15SubpartBClassA,ICES-3(A)/NMB-3(A),CE/UKCA-
• Safety: UL62368-1,CAN/CSAC22.2NO.62368-1,IEC62471
• Environment: IEC/EN63000,IEC60529IP66,IEC60529IP67,ISO20653IP6K9K,IEC62262IK10+,
• Detect(25PPM/8PPF): Wide, 22.2m(72.74ft)
• Observe(63PPM/19PPF) Wide: 8.9m(29.09ft)
• CAD: Unit:mm[inch]
