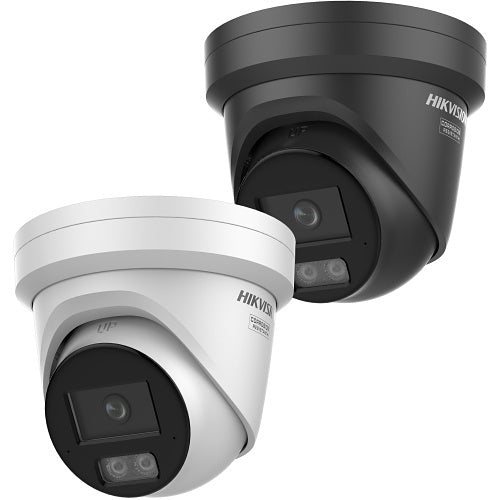

Hikvision DS-2CD23126G3-I2UY(2.8mm)(eF)BLACK

Hikvision DS-2CD23126G3-I2UY(2.8mm)(eF)BLACK Pro Series 12MP Acusense Powered by Darkfighter Turret IP Camera, 2.8mm Fixed Lens, 130 dB True WDR, IP67

Name: Hikvision DS-2CD23126G3-I2UY(2.8mm)(eF)BLACK Pro Series 12MP Acusense Powered by Darkfighter Turret IP Camera, 2.8mm Fixed Lens, 130 dB True WDR, IP67
Brand: Hikvision

Exc VAT £255.00

Inc VAT £306.00

45In stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION12MP

LENS2.8mm

PROTECTIONIP67

FORMTurret

COMPRESSIONSub-stream: H.265

POWERprotection,

The Hikvision DS-2CD23126G3-I2UY(2.8mm)(eF)BLACK Pro Series 12MP Acusense Powered by Darkfighter Turret IP Camera, 2.8mm Fixed Lens, 130 dB True WDR, IP67 is a genuine Hikvision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 12MP video.

It has a 2.8mm fixed focal lens, 2.8 and 4 mm optional lens.

The minimum illumination is Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR.

It connects over Ethernet, encoding video as Sub-stream: H.265/H.264/MJPEG.

Audio comes from -2u:built-in microphone: arrayed dual-microphone.

It is rated IP67.

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Product Series: Pro
Part number: DS-2CD23126G3-I2UY(2.8mm)(eF)BLACK
Brand: Hikvision

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 4608 × 2592
Min. Illumination: Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0°to 360°,tilt: 0° to 75°,rotate: 0°to 360°

Lens

Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Lens Mount: M16
Iris Type: Fixed
Aperture: F1.6

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Third Stream: 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression: Sub-stream: H.265/H.264/MJPEG,
Video Bit Rate: 32 Kbps to 24 Mbps
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream

Audio

Audio Type: -2U: Mono sound
Audio Compression: -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate: -2U: 8 k Hz/16 k Hz/32 k Hz/48 k Hz
Environment Noise Filtering: -2U: Yes

Network

Protocols: SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security: authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client: iVMS-4200,Hik-Connect,Hik-Central


Image Parameters Switch: Yes
Day/Night Switch: Day,Night,Auto,Schedule
Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog
SNR: ≥ 52 dB
Wide Dynamic Range (WDR): 130 dB
Image Stabilization: EIS
Privacy Mask: 4 programmable polygon privacy masks

Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio: -2U:Built-in Microphone: Arrayed dual-microphone
Reset Key: Yes

Basic Event

Smart Event: Scene change detection
Face Capture: Yes

Datasheet

Power: protection,
Material: Cover: Metal, main body: Metal
Package Dimension: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight: Approx. 750 g (1.7 lb.)
With Package Weight: Approx. 1140 g (2.5 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

Emc

Environment: WEEE: 2012/19/EU,
Protection: IP67: IEC 60529-2013
Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
Level: Description
Moderate protection: application scenarios include coastal areas about 2
Mounting: Wall Mounting
Wall Mounting: Wall Mounting, Pendant Mounting
