Hikvision DS-2CD23126G3-IS2UY/SL(2.8MM)(EF)

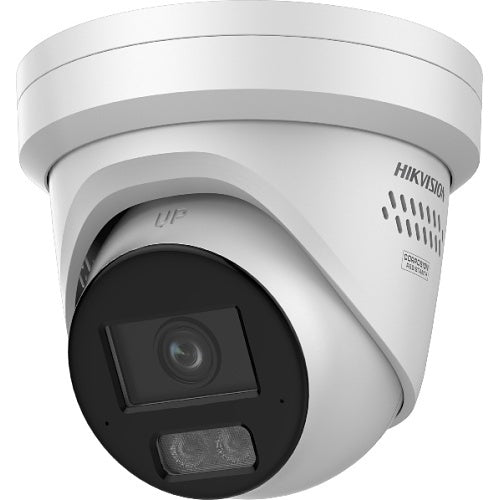

Hikvision DS-2CD23126G3-IS2UY/SL(2.8mm)(eF) Pro Series 12MP Acusense Strobe Light and Audible Warning Fixed Turret IP Camera, 2.8mm Lens, White

Name: Hikvision DS-2CD23126G3-IS2UY/SL(2.8mm)(eF) Pro Series 12MP Acusense Strobe Light and Audible Warning Fixed Turret IP Camera, 2.8mm Lens, White
Brand: Hikvision

Exc VAT £270.00

Inc VAT £324.00

8In stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION12MP

LENS2.8mm

FORMTurret

COMPRESSIONSub-stream: H.265

POWERprotection,

SENSOR1

The Hikvision DS-2CD23126G3-IS2UY/SL(2.8mm)(eF) Pro Series 12MP Acusense Strobe Light and Audible Warning Fixed Turret IP Camera, 2.8mm Lens, White is a genuine Hikvision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 12MP video.

It has a 2.8mm fixed focal lens, 2.8 and 4 mm optional lens.

The minimum illumination is Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR.

It connects over Ethernet, encoding video as Sub-stream: H.265/H.264/MJPEG.

Audio comes from non-equilibrium,.

The Hikvision DS-2CD23126G3-IS2UY/SL(2.8mm)(eF) Pro Series is a fixed turret IP camera designed for high-definition surveillance with a 12MP sensor and 2.8mm lens. It delivers UHD imaging with excellent low-light performance powered by DarkFighter technology and provides clear visuals even against strong backlight using 130 dB true WDR. The camera includes advanced features such as person and vehicle classification based on deep learning, face capture, and an active strobe light combined with an audible alarm for enhanced security. It supports crystal-clear audio with a built-in arrayed dual-mic and smart PA speaker. Built for durability, it is water and dust resistant to IP67 standards and features an anti-corrosion design certified to NEMA 4X, with tamper-free and eco-friendly packaging.

Key features

UHD- Ultra High Definition delivers lifelike immersion
Excellent low-light performance via Powered by DarkFighter
Person and vehicle classification based on deep learning

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Product Series: Pro
Part number: DS-2CD23126G3-IS2UY/SL(2.8MM)(EF)
Brand: Hikvision

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 4608 × 2592
Min. Illumination: Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0°to 360°,tilt: 0° to 75°,rotate: 0°to 360°

Lens

Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Lens Mount: M16
Iris Type: Fixed
Aperture: F1.6

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Main Stream: 50 Hz: 25 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression: Sub-stream: H.265/H.264/MJPEG,
Video Bit Rate: 32 Kbps to 24 Mbps
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream

Audio

Audio Type: -2U: Mono sound
Audio Compression: -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate: -2U: 8 k Hz/16 k Hz/32 k Hz/48 k Hz
Environment Noise Filtering: -2U: Yes

Network

Protocols: SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security: authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client: iVMS-4200,Hik-Connect,Hik-Central


Image Parameters Switch: Yes
Day/Night Switch: Day,Night,Auto,Schedule
Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog
SNR: ≥ 52 dB
Wide Dynamic Range (WDR): 130 dB
Image Stabilization: EIS
Privacy Mask: 4 programmable polygon privacy masks

Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker: Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
Audio: non-equilibrium,
Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key: Yes

Basic Event

Smart Event: Scene change detection
Face Capture: Yes

Datasheet

Power: protection,
Material: Cover: metal, main body: metal
Package Dimension: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight: Approx. 820 g (1.8 lb.)
With Package Weight: Approx. 1200 g (2.6 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

Emc

Environment: WEEE: 2012/19/EU,
Protection: IP67: IEC 60529-2013
Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
Level: Description
Top-level protection: anti-corrosion protection is a must. Typical application scenarios include coastlines,
Moderate protection: Hikvision products at this level are equipped for use in areas with moderate
Pendant Mounting: Corner Mounting, Mounting, Wall Mounting
Wall Mounting: Wall Mounting, Wall Mounting
Junction Box: Junction Box
