Hikvision DS-2CD2546G3-IZS2UY(2.8/4MM)BLACK

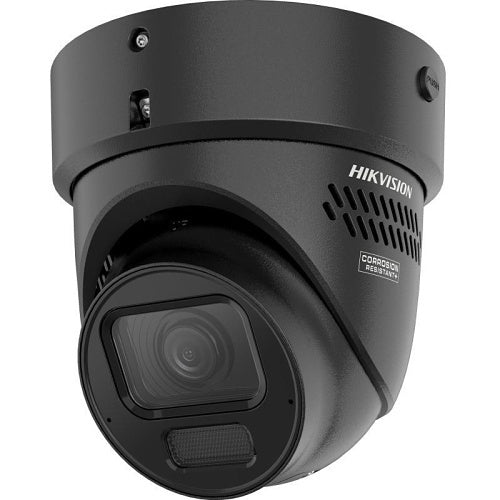

Hikvision DS-2CD2546G3-IZS2UY(2.8/4mm)BLACK Pro Series 4MP Acusense Smart Hybrid Light Mini Dome IP Camera, 2.8-4mm Varifocal Lens, Arrayed Dual-Mic, IP67, IK08, Black

Name: Hikvision DS-2CD2546G3-IZS2UY(2.8/4mm)BLACK Pro Series 4MP Acusense Smart Hybrid Light Mini Dome IP Camera, 2.8-4mm Varifocal Lens, Arrayed Dual-Mic, IP67, IK08, Black
Brand: Hikvision

Exc VAT £205.00

Inc VAT £246.00

11In stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION4MP

LENS4mm

PROTECTIONIP67

FORMDome

SENSOR1

MATERIALBase: aluminum

The Hikvision DS-2CD2546G3-IZS2UY(2.8/4mm)BLACK Pro Series 4MP Acusense Smart Hybrid Light Mini Dome IP Camera, 2.8-4mm Varifocal Lens, Arrayed Dual-Mic, IP67, IK08, Black is a genuine Hikvision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 4MP video.

It has a 4mm varifocal lens, motorized lens, 2.8 to 4 mm lens.

The minimum illumination is Color: 0.001 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR.

Audio comes from impedance: 4.7 kω, interface type: non-equilibrium.

It is rated IP67 and IK08.

The Hikvision DS-2CD2546G3-IZS2UY(2.8/4mm)BLACK is a Pro Series 4MP Acusense Smart Hybrid Light Mini Dome IP Camera designed for advanced surveillance applications. It features a versatile 2.8/4mm point vari-focal lens and delivers excellent low illumination performance powered by DarkFighter technology. The camera includes crystal-clear audio capabilities through an arrayed dual-microphone setup and supports person and vehicle classification powered by deep learning algorithms. Built to endure harsh conditions, this camera offers anti-corrosion design compliant with NEMA 4X, and is rated IP67 for water and dust resistance and IK08 for vandal resistance, making it highly reliable and durable for various environments.

Key features

Anti-corrosion design (NEMA 4X), more reliable
Excellent low illumination performance via Powered by DarkFighter
Crystal-clear audio with Arrayed Dual-Mic

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Product Series: Pro
Part number: DS-2CD2546G3-IZS2UY(2.8/4MM)BLACK
Brand: Hikvision

Camera

Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.001 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: -30°to 30°, tilt: 0°to 75°, rotate: 0°to 360°

Lens

Lens Type: Varifocal lens, motorized lens, 2.8 to 4 mm
Lens Mount: Ø 14
Iris Type: Fixed
Aperture: F1.6

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Third Stream: 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Bit Rate: 32 Kbps to 8 Mbps
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream

Audio

Audio Type: Mono sound
Audio Compression: -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate: -2U: 8 k Hz/16 k Hz/32 k Hz/48 k Hz
Environment Noise Filtering: -2U: Yes

Network

Protocols: SMTP, IGMP, 802.1X,QoS, IPv4,IPv6, UDP, SSL/TLS, PPPoE, SNMP, Web Socket,
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S,Profile G), ISAPI,SDK, ISUP
Security: Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3,
Network Storage: Together with high-end Hikvision memory card,memory card encryption and health
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,


Image Parameters Switch: Yes
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 130 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Privacy Mask: 4 programmable polygon privacy masks

Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone: -2U: 2 built-in microphone
Audio: impedance: 4.7 KΩ, interface type: non-equilibrium
Alarm: -S: 1 input,1 output (max. 12 VDC, 30 mA)
Built-in Speaker: NA
Reset Key: Yes

Basic Event

Smart Event: scene change detection
Face Capture: Yes

Power

Material: Base: aluminum,cover: plastic
Package Dimension: 134 mm × 134 mm × 108 mm (5..3" × 5.3" × 4.3")
Weight: Approx. 400 g (0.9 lb.)
With Package Weight: Approx. 650 g (1.4 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Heartbeat, mirror,flash log,password reset via email,pixel counter, anti-banding

Emc

Safety: CB: IEC 62368-1: 2014+A11
Environment: WEEE: 2012/19/EU,
Protection: IP67: IEC 60529-2013,IK08: IEC 62262:2002
Vertical Pole: Vertical Pole
Pendant Mounting: Mounting, Mounting
J-DM46-Y: ZJ-DM46-Y
Mounting: Junction Box, Wall Mounting, Wall Mounting
Corner Mounting: Corner Mounting
Wall Mounting: Corner Mounting, Corner Mounting
ZJ-DM46-Y: J-DM46-Y
