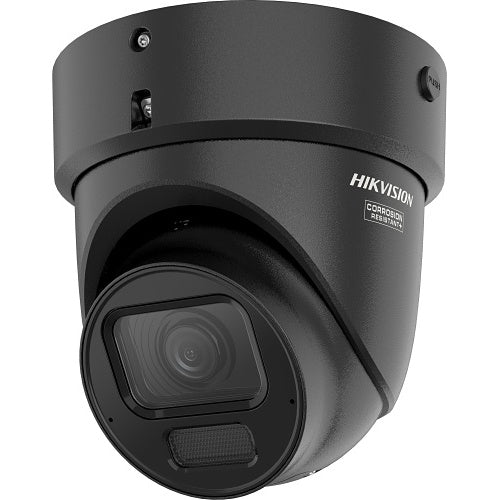

Hikvision DS-2CD2H86G2H-IZSY(2.8-12MM)/BLACK

Hikvision DS-2CD2H86G2H-IZSY(2.8-12mm)/BLACK Pro Series 8MP Powered by Darkfighter Turret IP Camera, 2.8-12mm Motorized Varifocal Lens, 120 dB WDR, IP67, IK10, Black

Name: Hikvision DS-2CD2H86G2H-IZSY(2.8-12mm)/BLACK Pro Series 8MP Powered by Darkfighter Turret IP Camera, 2.8-12mm Motorized Varifocal Lens, 120 dB WDR, IP67, IK10, Black
Brand: Hikvision

Exc VAT £360.00

Inc VAT £432.00

105In stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION8MP

LENS2.8-12mm

PROTECTIONIP67

FORMTurret

SENSOR1

The Hikvision DS-2CD2H86G2H-IZSY(2.8-12mm)/BLACK Pro Series 8MP Powered by Darkfighter Turret IP Camera, 2.8-12mm Motorized Varifocal Lens, 120 dB WDR, IP67, IK10, Black is a genuine Hikvision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 8MP video.

It has a 2.8-12mm varifocal lens, motorized lens, 2.8 to 12 mm lens.

The minimum illumination is Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR.

It is rated IP67 and IK10.

The Hikvision DS-2CD2H86G2H-IZSY(2.8-12MM)/BLACK is a professional-grade 8MP turret IP camera designed for advanced surveillance needs. It features a motorized varifocal lens (2.8-12mm) for flexible monitoring and easy installation, enhanced by a highly waterproof and user-friendly innovative socket design. This camera supports person and vehicle classification through deep learning, providing intelligent detection capabilities. It offers robust protection with an anti-corrosion NEMA 4X design and resistance to water, dust (IP67), and vandalism (IK10). With 120 dB WDR technology, it delivers clear images under strong backlight conditions and uses efficient H.265 compression for optimized storage and transmission.

Key features

Motorized varifocal lens for easy installation and monitoring
Innovative socket design, highly waterproof and user-friendly
Focus on person and vehicle classification based on deep learning

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Part number: DS-2CD2H86G2H-IZSY(2.8-12MM)/BLACK
Brand: Hikvision

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter

Lens

Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
Lens Mount: Integrated
Aperture: Max. F1.2
Depth of Field: 1 m to ∞

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Main Stream: 60 Hz: 24 fps(3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 ×
Third Stream: 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Bit Rate: 32 Kbps to 16 Mbps
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate: 8 k Hz/16 k Hz/32 k Hz/48 k Hz
Environment Noise Filtering: Yes
Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key: Yes

Network

Protocols: SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
Security: authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client: iVMS-4200,Hik-Connect,Hik-Central
Web Browser: Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,


Image Parameters Switch: Yes
Day/Night Switch: Day,Night,Auto,Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC,HLC,3D DNR
Privacy Mask: 4 programmable polygon privacy masks

Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Basic Event

Smart Event: Scene change detection
Face Capture: Yes

Power

Package Dimension: 170 mm × 170 mm × 225 mm (6.7" × 6.7" × 8.9")
Weight: Approx. 1230 g (2.7 lb.)
With Package Weight: Approx. 1490 g (3.3 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Heartbeat,mirror,password reset via email,pixel counter,anti-banding

Emc

Safety: CB: IEC 62368-1: 2014+A11
Environment: WEEE: 2012/19/EU,
Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002

**Shipping and Fulfilment** - **UK delivery:** Standard, express and timed services are shown at checkout where available. - **Dispatch:** Stocked products are prepared for dispatch during normal business days. - **Large or project orders:** Delivery timing is confirmed with the order or quotation. - **VAT:** Product prices are displayed excluding VAT; VAT is calculated at checkout.

Hikvision DS-2CD2H86G2H-IZSY(2.8-12mm)/BLACK Pro Series 8MP Powered by Darkfighter Turret IP Camera, 2.8-12mm Motorized Varifocal Lens, 120 dB WDR, IP67, IK10, Black £360.00 Exc VAT · In stock
